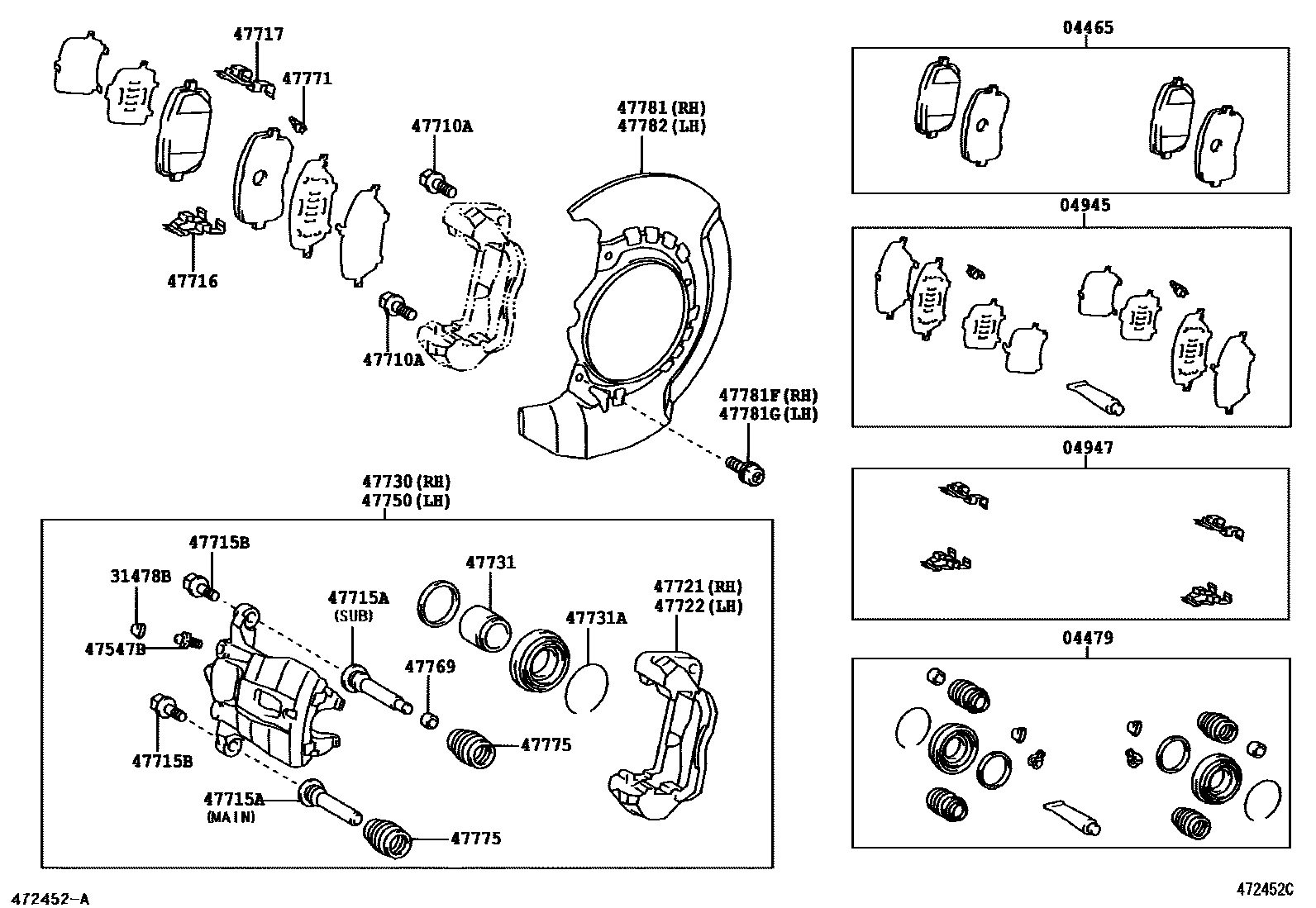

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-44050200206-200912

main04465-44090200105-200912

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-44020200105-200310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-44020200105-200310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-44010200105-200310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010200105-200310

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010200105-200310

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208200105-200912

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48050200212-200912

main47715-48010200105-200212

main47715-48020200105-200212

main47715-48050200212-200912

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08346200105-200310

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-44010200105-200310

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-44010200105-200310

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-44020200105-200212

main47721-44021200212-200310

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-44020200105-200212

main47721-44021200212-200310

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-44020200105-200212

main47730-44021200212-200310

47731PISTON, FRONT DISC BRAKE

main47731-28080200105-200310

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001200105-200310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-44020200105-200212

main47750-44021200212-200310

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020200105-200310

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48010200105-200310

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48010200105-200310

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28200200105-200705

main47781-28240200706-200912

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227200105-200912

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227200105-200912

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28200200105-200705

main47782-28230200706-200912

24 parts on this diagram · 1 diagram in section
