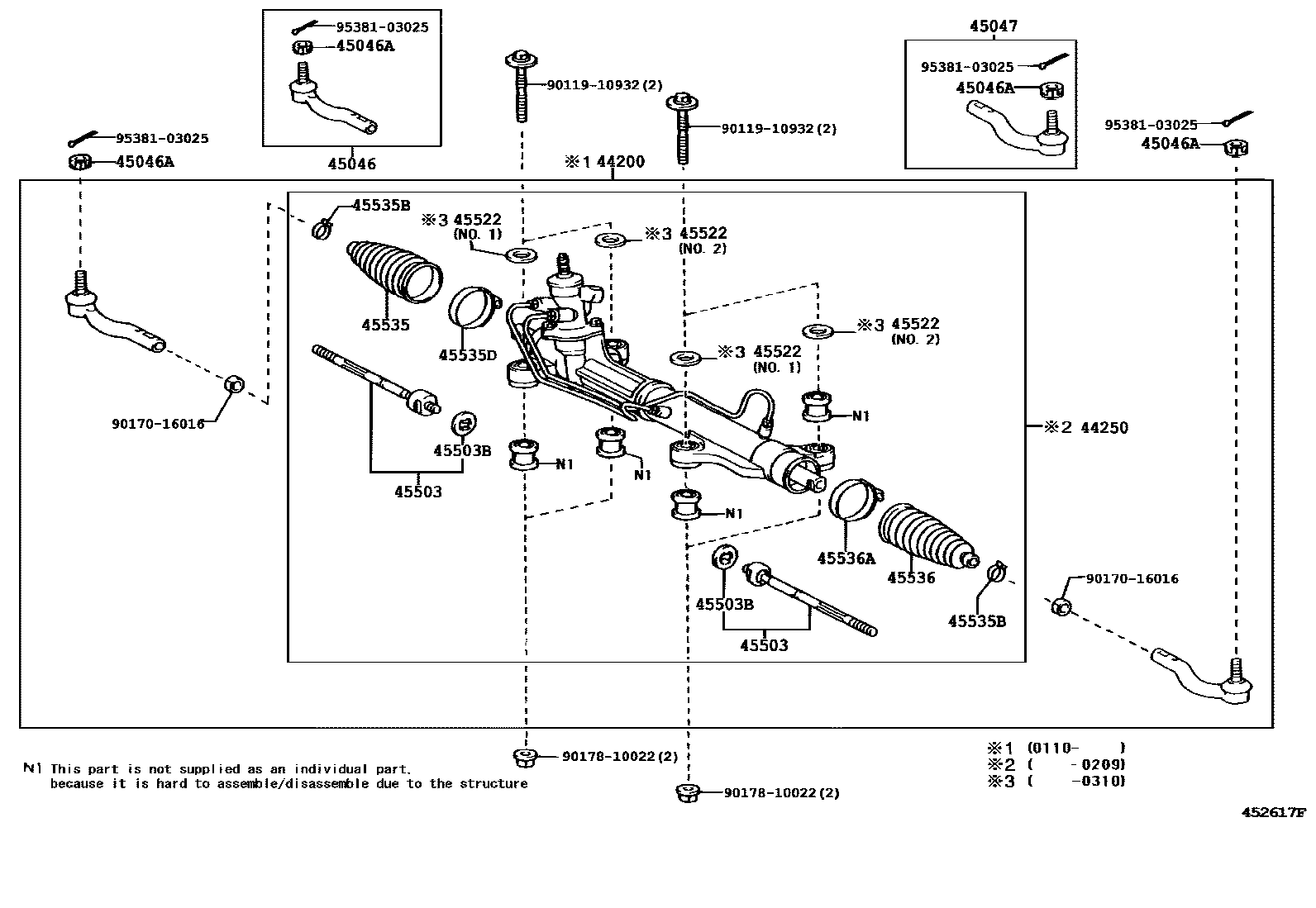

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44200LINK ASSY, POWER STEERING

main44200-44140iACM20,CLM20..RHD200110-200310

main44200-44150iACM20,CLM20..LHD200110-200310

main44200-44240iACM2#,CLM20..RHD200310

main44200-44250iACM20,CLM20..LHD200310-200507

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-44140iACM20,CLM20..RHD200105-200110

main44250-44141iACM20,CLM20..RHD200110-200209

main44250-44150iACM20,CLM20..LHD200105-200110

main44250-44151iACM20,CLM20..LHD200110-200209

45046END SUB-ASSY, TIE ROD, RH

main45047-49055iACM20,CLM20200105-200310

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iACM20,CLM20200105-200310

45047END SUB-ASSY, TIE ROD, LH

main45046-49125iACM20,CLM20200105-200310

45503END SUB-ASSY, STEERING RACK

main45503-49105×2iACM20,CLM20200105-200310

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007×2iACM20,CLM20200105-200310

OD=38

45522BUSH, STEERING RACK

main45522-44010×2iACM20,CLM20200105-200310

NO.1

main45522-44020×2iACM20,CLM20200105-200310

NO.2

45535BOOT, STEERING RACK, NO.1

main45535-44010iACM20,CLM20200105-200310

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19018×2iACM20,CLM20200105-200204

main90467-19021×2iACM20,CLM20200204-200310

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iACM20,CLM20200105-200310

45536BOOT, STEERING RACK, NO.2

main45535-44010iACM20,CLM20200105-200310

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iACM20,CLM20200105-200310

9011910932

main90119-10932

9017016016

main90170-16016

9017810022

main90178-10022

9538103025

main95381-03025

17 parts on this diagram · 3 diagrams in section
