Toyota PICNIC/AVENSIS VERSO511 — POWER STEERING TUBE

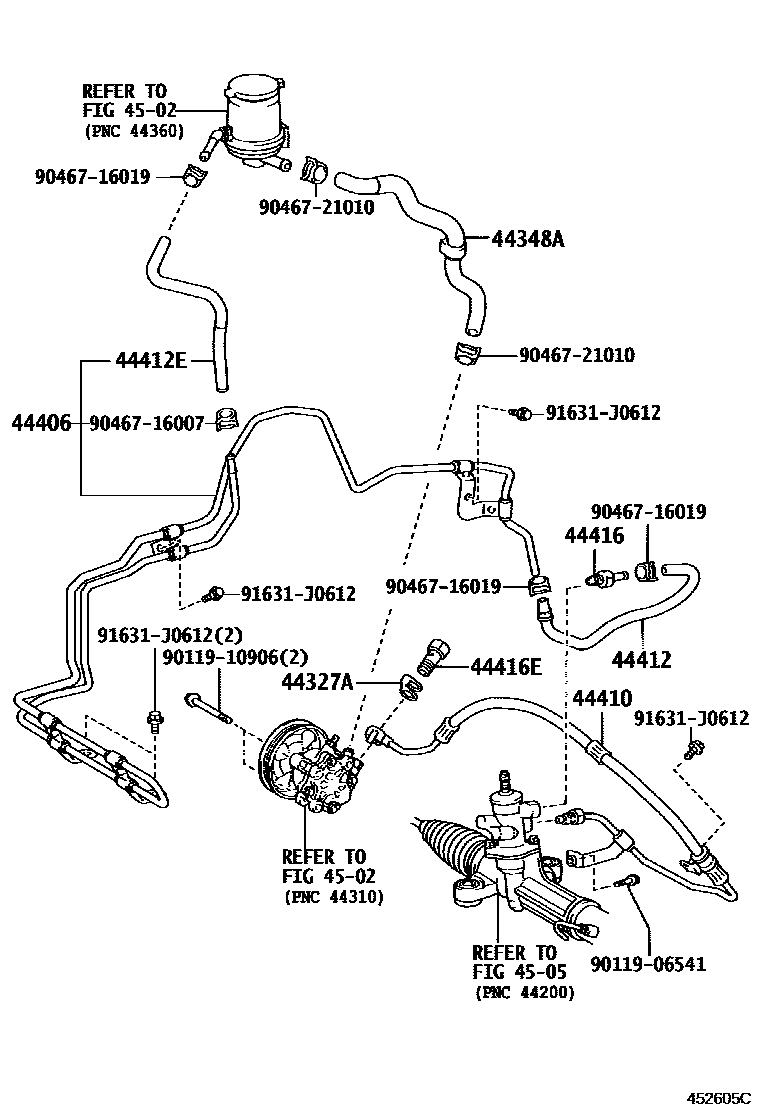

Parts diagram

44327AGASKET, PRESSURE PORT, NO.1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

44406TUBE SUB-ASSY, RETURN

44410TUBE ASSY, PRESSURE FEED

44412HOSE, RETURN

44412EHOSE, RETURN, NO.2

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

44416EBOLT, UNION(FOR RETURN TUBE)

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906541

9011910906

9046716007

9046716019

9046721010

91631J0612

16 parts on this diagram · 5 diagrams in section

POWER STEERING TUBE for Toyota PICNIC/AVENSIS VERSO511

This section contains 30 genuine Toyota parts for the POWER STEERING TUBE system of the Toyota PICNIC/AVENSIS VERSO511. Key components include: V-BELT, GASKET, PRESSURE PORT, NO.1, HOSE, OIL RESERVOIR TO PUMP, NO.1, PULLEY ASSY, POWER STEERING IDLE, BRACKET, POWER STEERING IDLE PULLEY.
