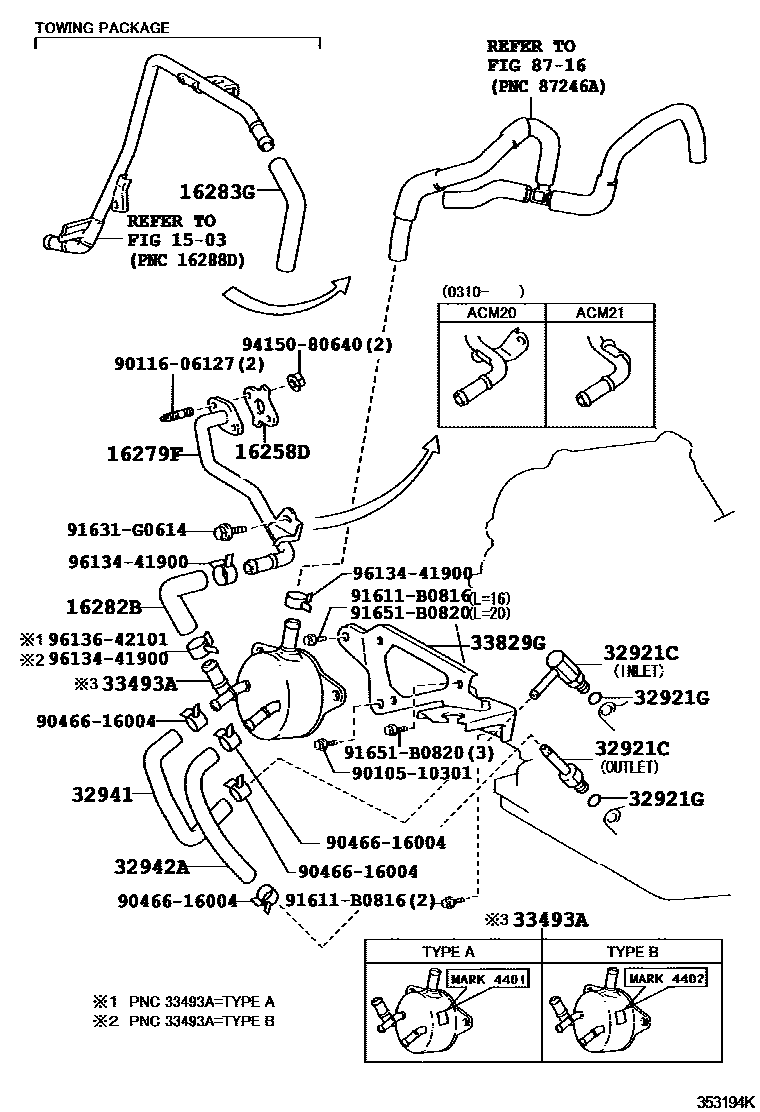

OIL COOLER & TUBE (ATM)

1503ENGINE OIL COOLER

→ Go to FIG 15-03

16258DGASKET(FOR WATER BY-PASS PIPE)

main16258-28020i1AZFE..ACM20..ATM200105-200304

main16258-28021i1AZFE..ACM20..ATM200304-200308

main16258-28040i1AZFE,2AZFE..ACM2#..ATM200310

16279FPIPE, WATER BY-PASS, NO.3

main16279-28030i1AZFE..ACM20..ATM200105-200310

main16279-28050i1AZFE..ACM20..ATM200310

main16279-28060i2AZFE..ACM21200310

16282BHOSE, WATER BY-PASS, NO.5

main16282-28010i1AZFE..ACM20..ATM200105-200310

main16282-28090i1AZFE,2AZFE..ACM2#..ATM200310-200912

16283GHOSE, WATER BY-PASS, NO.6

main16283-28030i1AZFE..ACM20..ATM..ARL200110-200310

TOWING PACKAGE

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iACM20..ATM200105-200310

OUTLET

main90407-13009iACM2#..ATM200310

INLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACM2#..ATM200310-200912

32941HOSE, OIL COOLER INLET, NO.1

main32941-44010iACM2#..ATM200310

TYPE A:REFER TO ILLUSTRATION, (PNC33493A)

main32941-44020iACM21200310

TYPE B:REFER TO ILLUSTRATION, (PNC33493A)

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-17069iACM20..ATM200105-200310

TYPE A:REFER TO ILLUSTRATION, (PNC33493A)

main90445-17100iACM2#200803

TYPE A:REFER TO ILLUSTRATION, (PNC33493A)

main90445-17101iACM21200310

TYPE B:REFER TO ILLUSTRATION, (PNC33493A)

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-44010iACM20..ATM200105-200310

TYPE A:REFER TO ILLUSTRATION

main33493-44020iACM20..ATM..ARL200110-200310

TYPE B:REFER TO ILLUSTRATION

33829GSUPPORT, TRANSMISSION CONTROL CABLE

main33829-44040iACM20..ATM200105-200310

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9010510301

main90105-10301

9011606127

main90116-06127

9046616004

main90466-16004

91611B0816

main91611-B0816

91631G0614

main91631-G0614

91651B0820

main91651-B0820

9415080640

main94150-80640

9613441900

main96134-41900

9613642101

main96136-42101

21 parts on this diagram · 1 diagram in section
