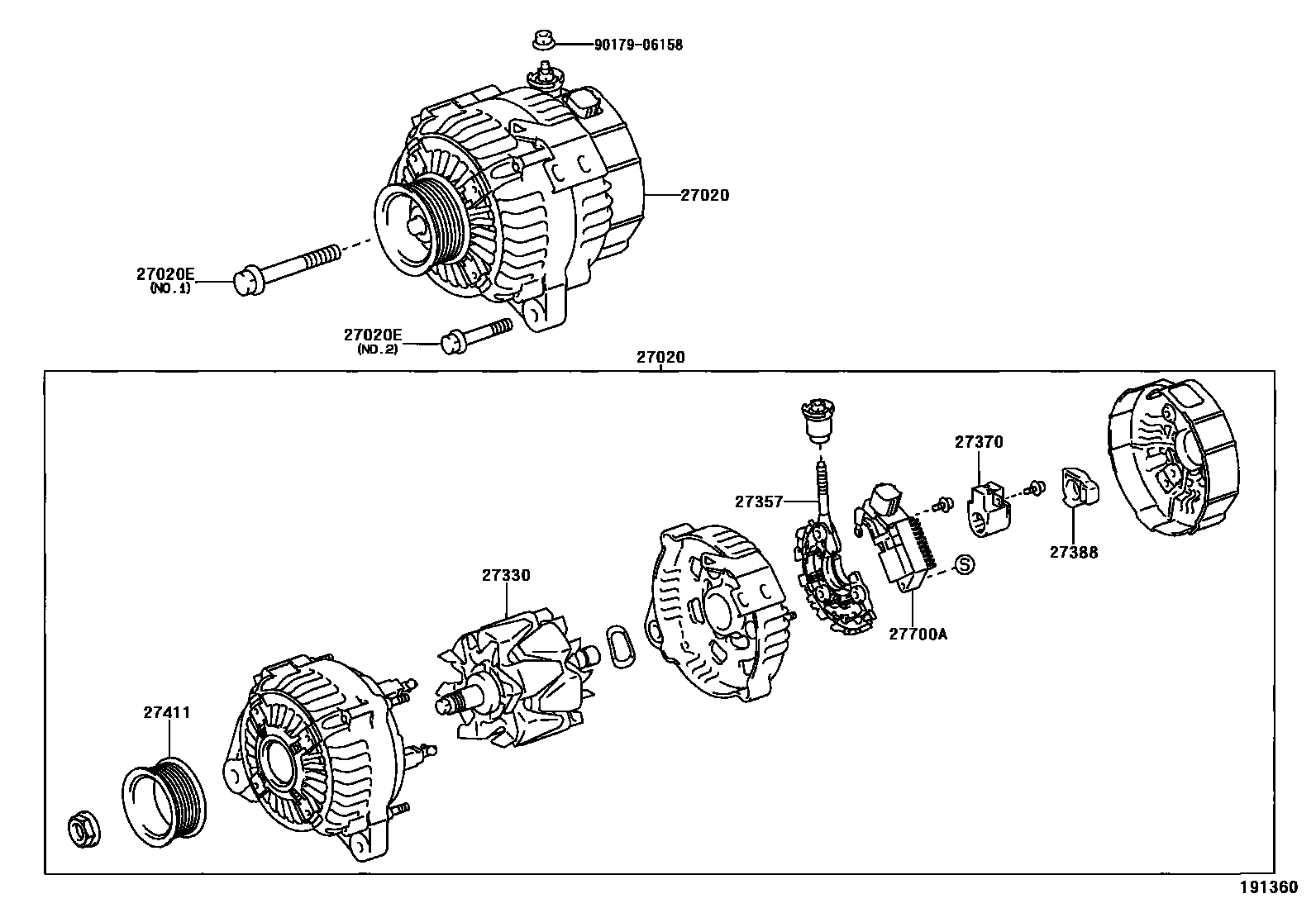

ALTERNATOR

0001 112V 100A 0002 112V 130A 0003 112V 100A,130A

27020ALTERNATOR ASSY

main27060-27040i1CDFTV..CLM20200105-200507

12V 130A

main27060-28070i1AZFE..ACM20..EUR200105-200310

12V 100A

main27060-28150i1AZFE..ACM20..ARL,GEN200105-200310

12V 100A

sub27060-28070

main27060-28230i2AZFE..ACM21200310

12V 130A

main27060-28260i1AZFE..ACM20200310

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90901-05004i1CDFTV..CLM20200105-200507

main91511-60840i1AZFE..ACM20200105-200310

NO.2

sub91511-J0840

main91511-J0840i1AZFE,2AZFE..ACM2#200310-200510

NO.2

main91512-81085i1AZFE..ACM20200105-200310

NO.1

main91551-80840i1AZFE,2AZFE..ACM2#200511

NO.2

27330ROTOR ASSY, ALTERNATOR

main27330-20070i1AZFE..ACM20200105-200310

main27330-20130i1CDFTV..CLM20200105-200602

sub27330-33090

main27330-30070i1AZFE..ACM20200310

main27330-33090i2AZFE..ACM21200602

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-70450i1AZFE..ACM20200105-200310

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i1CDFTV..CLM20200105-200602

main27370-58460i2AZFE..ACM21200310

main27370-75060i1AZFE..ACM20200105-200310

27388COVER, ALTERNATOR BRUSH

main27388-42010i1AZFE..ACM20200105-200310

27411PULLEY, ALTERNATOR

main27411-28060i1AZFE..ACM20200105-200310

27700AREGULATOR ASSY, GENERATOR

main27700-27070i1AZFE..ACM20..EUR200105-200310

main27700-28040i1AZFE..ACM20..ARL,GEN200105-200310

sub27700-27070

9017906158

main90179-06158
