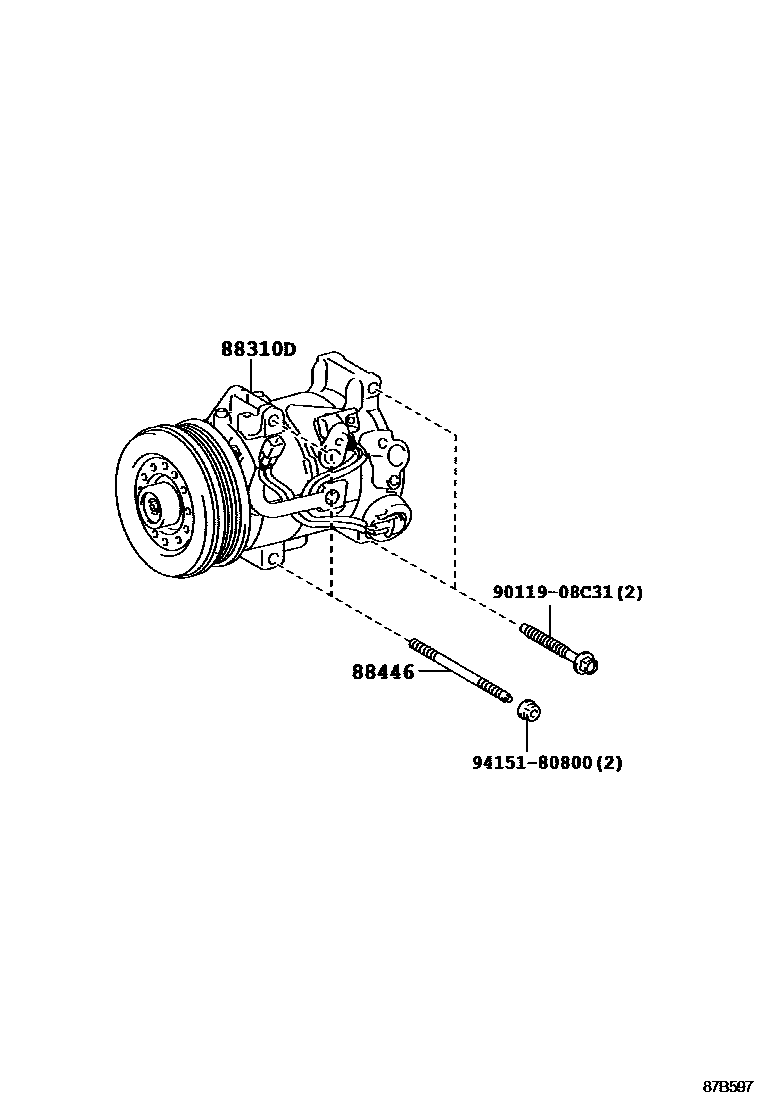

HEATING & AIR CONDITIONING - COMPRESSOR

88310DCOMPRESSOR ASSY, W/PULLEY

main88310-77070iLFA10..GCC201012

main88310-77061iLFA10..EUR201012

AIR CONDITIONER-WITHOUT; BASIC PACKAGE

88446BOLT, IDLE PULLEY

main88446-60050×2iLFA10; LFA10..EUR201012

AIR CONDITIONER-WITHOUT; BASIC PACKAGE

9011908C31

main90119-08C31

9415180800

main94151-80800

4 parts on this diagram · 1 diagram in section
