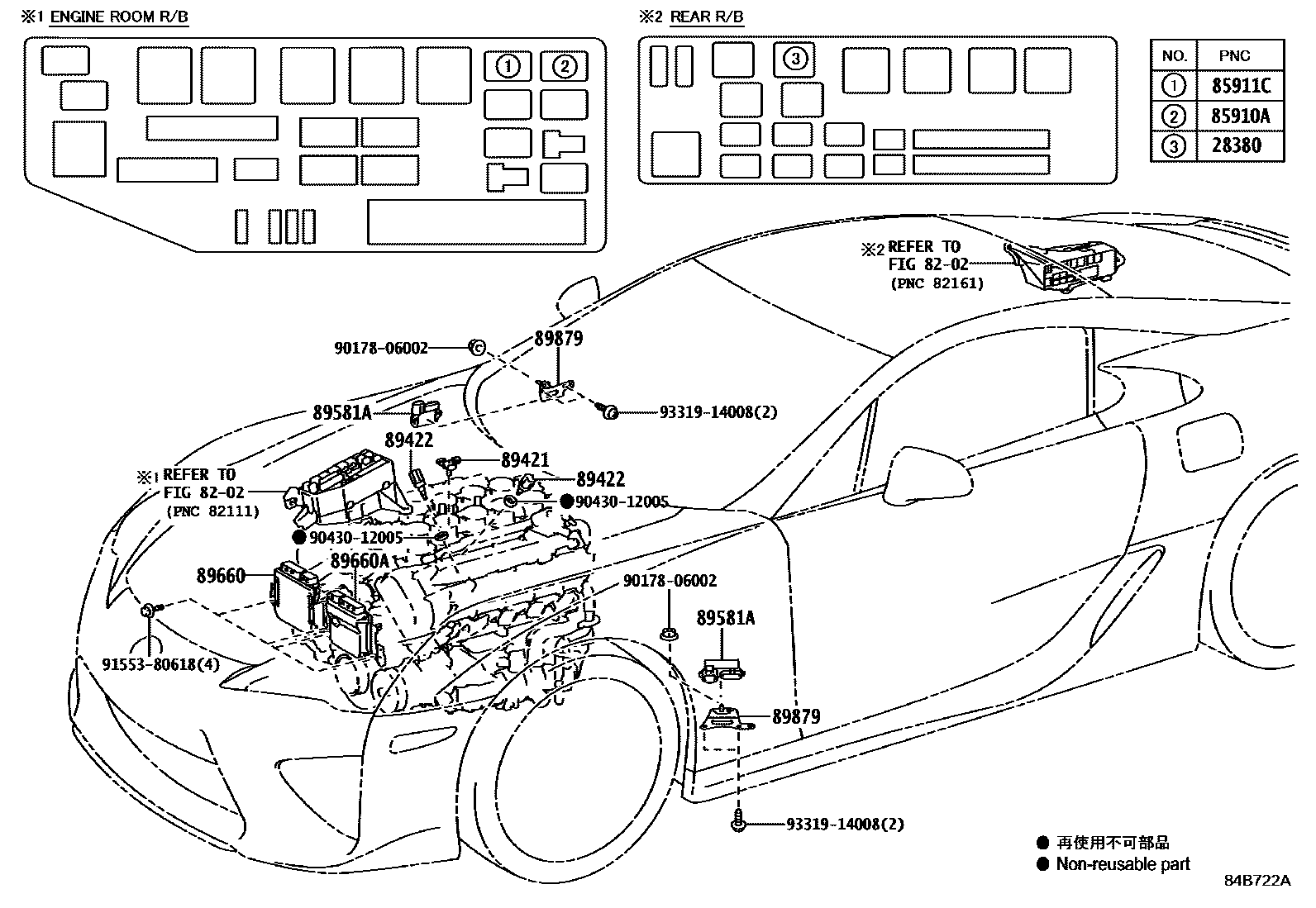

ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main90987-04004i1LRGUE..LFA10201012

8202WIRING & CLAMP

→ Go to FIG 82-02

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iLFA10201012

85911CRELAY, EFI 2

main90987-02027iLFA10201012

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-77010iLFA10201012

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030×2iLFA10201012

89581ADRIVER, AIR INJECTION CONTROL

main89581-60010×2iLFA10201012

89660COMPUTER ASSY, ENGINE CONTROL

main89660-77030iLFA10201012

89660ACOMPUTER ASSY, ENGINE CONTROL

main89660-77040iLFA10201012

89879BRACKET, INJECTOR DRIVER

main89589-25010×2iLFA10201012

9017806002

main90178-06002

9043012005

main90430-12005

9155380618

main91553-80618

9331914008

main93319-14008

14 parts on this diagram · 1 diagram in section
