FRONT DOOR PANEL & GLASS

Parts diagram
5701HOLE PLUG
→ Go to FIG 57-01
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-77020-B1i201012-201212
GRAY
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-77020-B1i201012-201212
GRAY
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-77010supersedes 67610-77020i201012-201212

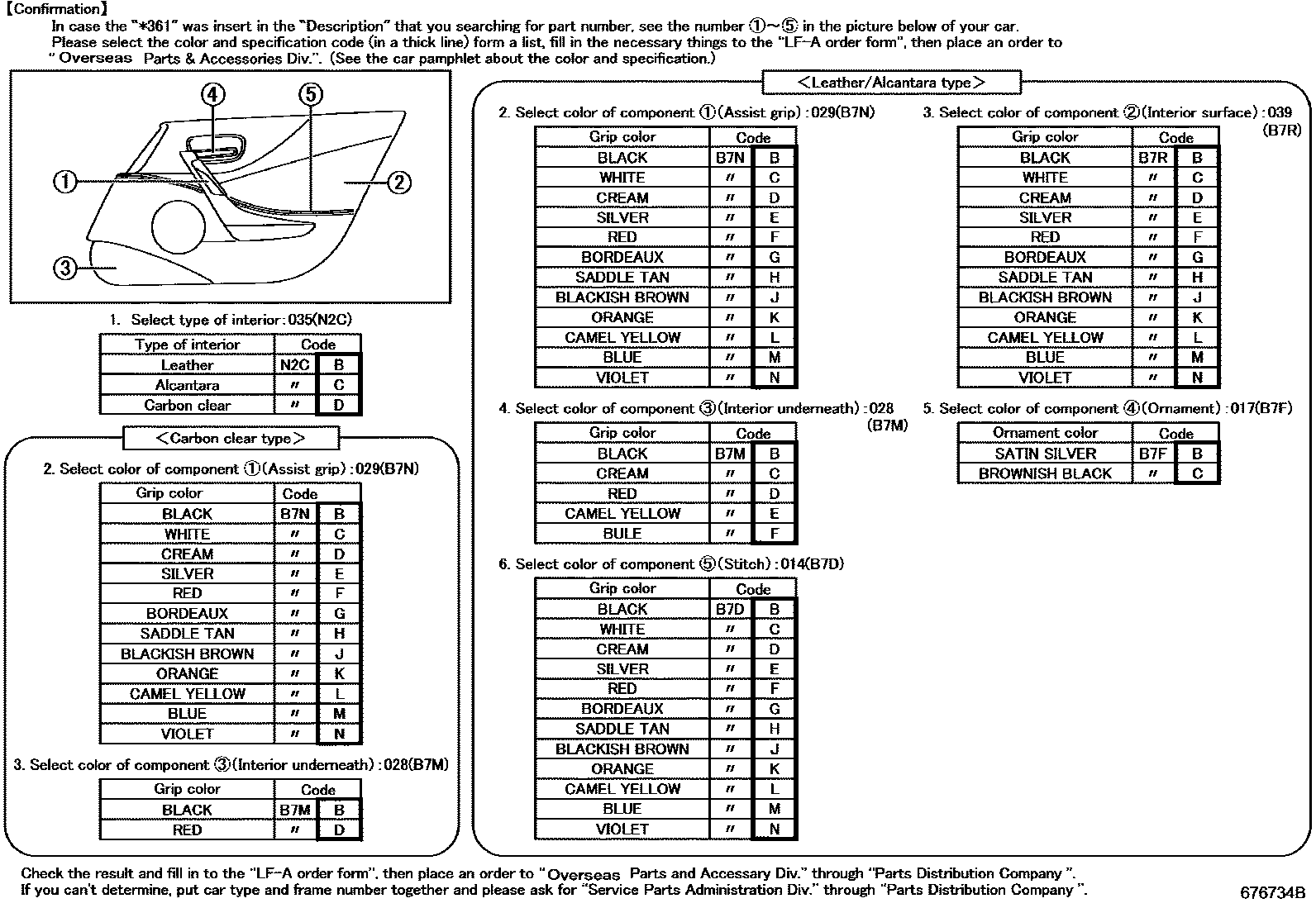

INSTRUMENT PANEL-LEATHER & CARBON,*361
main67610-77210i201201-201212
AUSTRIA SPEC&NURBURGRING PACKAGE,*361; DENMARK SPEC&NURBURGRING PACKAGE,*361; ENGLAND SPEC&NURBURGRING PACKAGE,*361; FINLAND SPEC&NURBURGRING PACKAGE,*361; FRANCE SPEC&NURBURGRING PACKAGE,*361; GERMANY SPEC&NURBURGRING PACKAGE,*361; GREECE SPEC&NURBURGRING PACKAGE,*361; IRELAND SPEC&NURBURGRING PACKAGE,*361; ITALY SPEC&NURBURGRING PACKAGE,*361; NETHERLAND SPEC&NURBURGRING PACKAGE,*361; NORWAY SPEC&NURBURGRING PACKAGE,*361; PORTUGUESE SPEC&NURBURGRING PACKAGE,*361; SWEDEN SPEC&NURBURGRING PACKAGE,*361; SWITZERLAND SPEC&NURBURGRING PACKAGE,*361
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-77010supersedes 67620-77020i201012-201212
INSTRUMENT PANEL-LEATHER & CARBON,*361
main67620-77210i201201-201212
AUSTRIA SPEC&NURBURGRING PACKAGE,*361; DENMARK SPEC&NURBURGRING PACKAGE,*361; ENGLAND SPEC&NURBURGRING PACKAGE,*361; FINLAND SPEC&NURBURGRING PACKAGE,*361; FRANCE SPEC&NURBURGRING PACKAGE,*361; GERMANY SPEC&NURBURGRING PACKAGE,*361; GREECE SPEC&NURBURGRING PACKAGE,*361; IRELAND SPEC&NURBURGRING PACKAGE,*361; ITALY SPEC&NURBURGRING PACKAGE,*361; NETHERLAND SPEC&NURBURGRING PACKAGE,*361; NORWAY SPEC&NURBURGRING PACKAGE,*361; PORTUGUESE SPEC&NURBURGRING PACKAGE,*361; SWEDEN SPEC&NURBURGRING PACKAGE,*361; SWITZERLAND SPEC&NURBURGRING PACKAGE,*361
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-77010i201012
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67832-77010i201012
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-77010i201012
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67864-77010i201012
67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH
main67865-77010i201012
67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH
main67866-77010i201012
67869ECLIP, FRONT DOOR WEATHERSTRIP
main67869-24010×10i201012
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68101-77010i201012
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68102-77010i201012
68610BCHECK ASSY, FRONT DOOR, RH
main68610-77010i201012
68617PIN, FRONT DOOR CHECK
main68617-77010×2i201012
68620CHECK ASSY, FRONT DOOR, LH
main68620-77010i201012
68621ACOVER, FRONT DOOR CHECK, RH
main68621-77010i201012
68622COVER, FRONT DOOR CHECK, LH
main68622-77010i201012
74611RCOVER, ASSIST GRIP, LH
main74611-77010-B0i201012-201212
SATIN SILVER,TRIM20
main74611-77010-C0i201012-201212
BROWNISH BLACK,TRIM20
74611SCLIP
main90467-13082-A0×4i201012-201212
MELLOW WHITE
74612JCOVER, ASSIST GRIP, RH
main74612-77010-B0i201012-201212
SATIN SILVER,TRIM20
main74612-77010-C0i201012-201212
BROWNISH BLACK,TRIM20
8121INTERIOR LAMP
→ Go to FIG 81-21
9016460018
main90164-60018
9017806011
main90178-06011
9018906030
main90189-06030
9054109124
main90541-09124

27 parts on this diagram · 3 diagrams in section
