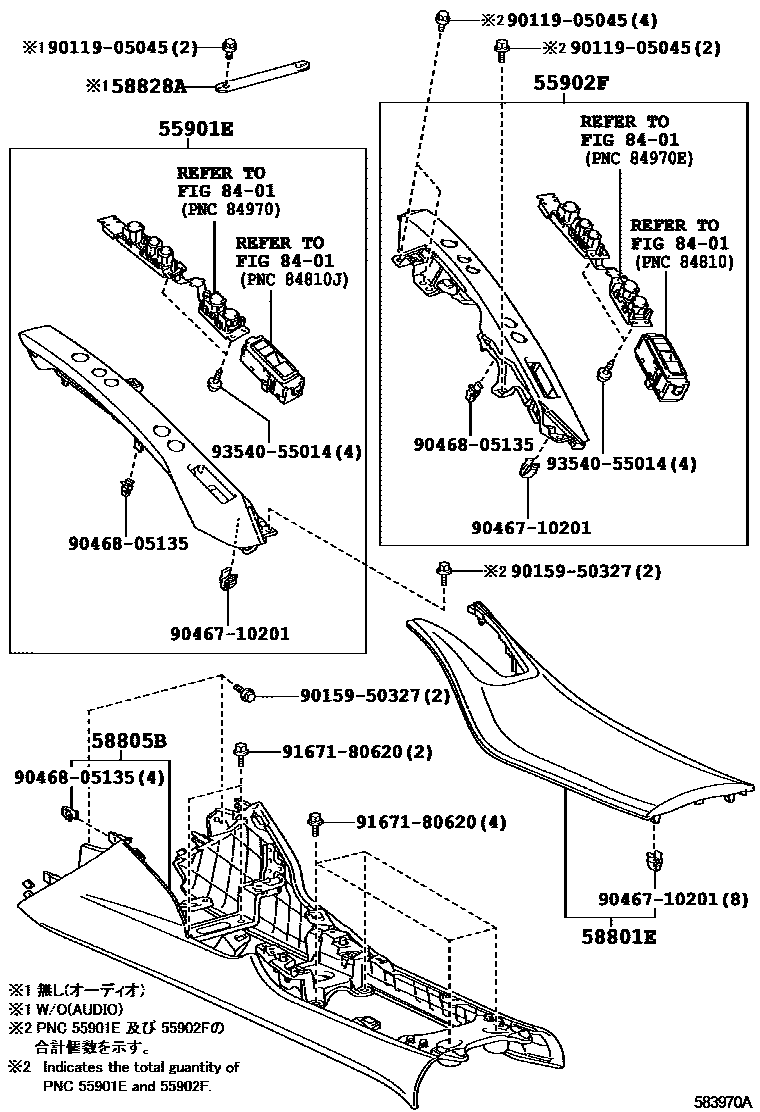

CONSOLE BOX & BRACKET
55901ECONTROL SUB-ASSY, HEATER, NO.1
SILVER 3/TP-40 TI,TRIM20
BROWNISH BLACK,TRIM20
SILVER 3/TP-40 TI,TRIM20
BROWNISH BLACK,TRIM20
55902FCONTROL SUB-ASSY, HEATER, NO.2
SILVER 3/TP-40 TI,TRIM20
BROWNISH BLACK,TRIM20
SILVER 3/TP-40 TI,TRIM20
BROWNISH BLACK,TRIM20
58801EBOX SUB-ASSY, CONSOLE, UPPER
CREAM/TERRA COTTA,TRIM20
CREAM/BORDEAU,TRIM20
CREAM/ORANGE,TRIM20
BLACK/TERRA COTTA,TRIM20
BLACK/BORDEAU,TRIM20
BLACK/ORANGE,TRIM20
BLACKISH BROWN/BORDEAU,TRIM20
BLACKISH BROWN/ORANGE,TRIM20
CAMEL YELLOW/TERRA COTTA,TRIM20
CAMEL YELLOW/BORDEAU,TRIM20
CAMEL YELLOW/ORANGE,TRIM20
CREAM/WHITE,TRIM20
CREAM/CREAM,TRIM20
CREAM/BLACK,TRIM20
CREAM/RED,TRIM20
CREAM/CAMEL YELLOW,TRIM20
CREAM/BLUE,TRIM20
CREAM/PURPLE,TRIM20
CREAM/SILVER,TRIM20
CREAM/DARK BROWN,TRIM20
BLACK/WHITE,TRIM20
BLACK/CREAM,TRIM20
BLACK/BLACK,TRIM20
BLACK/RED,TRIM20
BLACK/CAMEL YELLOW,TRIM20
BLACK/BLUE,TRIM20
BLACK/PURPLE,TRIM20
BLACK/SILVER,TRIM20
BLACK/DARK BROWN,TRIM20
RED/WHITE,TRIM20
RED/CREAM,TRIM20
RED/BLACK,TRIM20
RED/RED,TRIM20
RED/CAMEL YELLOW,TRIM20
RED/BLUE,TRIM20
RED/PURPLE,TRIM20
RED/SILVER,TRIM20
RED/DARK BROWN,TRIM20
SADDLE TAN/WHITE,TRIM20
SADDLE TAN/CREAM,TRIM20
SADDLE TAN/BLACK,TRIM20
SADDLE TAN/RED,TRIM20
SADDLE TAN/CAMEL YELLOW,TRIM20
SADDLE TAN/BLUE,TRIM20
SADDLE TAN/PURPLE,TRIM20
SADDLE TAN/SILVER,TRIM20
SADDLE TAN/DARK BROWN,TRIM20
CAMEL YELLOW/WHITE,TRIM20
CAMEL YELLOW/CREAM,TRIM20
CAMEL YELLOW/BLACK,TRIM20
CAMEL YELLOW/RED,TRIM20
CAMEL YELLOW/CAMEL YELLOW,TRIM20
CAMEL YELLOW/BLUE,TRIM20
CAMEL YELLOW/PURPLE,TRIM20
CAMEL YELLOW/SILVER,TRIM20
CAMEL YELLOW/DARK BROWN,TRIM20
BLUE/WHITE,TRIM20
BLUE/CREAM,TRIM20
BLUE/BLACK,TRIM20
BLUE/RED,TRIM20
BLUE/CAMEL YELLOW,TRIM20
BLUE/BLUE,TRIM20
BLUE/PURPLE,TRIM20
BLUE/SILVER,TRIM20
BLUE/DARK BROWN,TRIM20
PURPLE/WHITE,TRIM20
PURPLE/CREAM,TRIM20
PURPLE/BLACK,TRIM20
PURPLE/RED,TRIM20
PURPLE/CAMEL YELLOW,TRIM20
PURPLE/BLUE,TRIM20
PURPLE/PURPLE,TRIM20
PURPLE/SILVER,TRIM20
PURPLE/DARK BROWN,TRIM20
SADDLE TAN/TERRA COTTA,TRIM20
ORANGE/WHITE,TRIM20
ORANGE/CREAM,TRIM20
ORANGE/BLACK,TRIM20
ORANGE/RED,TRIM20
ORANGE/CAMEL YELLOW,TRIM20
ORANGE/BLUE,TRIM20
ORANGE/PURPLE,TRIM20
ORANGE/SILVER,TRIM20
ORANGE/DARK BROWN,TRIM20
ORANGE/TERRA COTTA,TRIM20
BLACKISH BROWN/WHITE,TRIM20
BLACKISH BROWN/CREAM,TRIM20
BLACKISH BROWN/BLACK,TRIM20
BLACKISH BROWN/RED,TRIM20
BLACKISH BROWN/CML.YELLOW,TRIM20
BLACKISH BROWN/BLUE,TRIM20
BLACKISH BROWN/PURPLE,TRIM20
BLACKISH BROWN/SILVER,TRIM20
BLACKISH BROWN/DARK BROWN,TRIM20
BLACKISH BROWN/TRA.COTTA,TRIM20
SADDLE TAN/BORDEAU,TRIM20
SADDLE TAN/ORANGE,TRIM20
ORANGE/BORDEAU,TRIM20
ORANGE/ORANGE,TRIM20
BLUE/TERRA COTTA,TRIM20
BLUE/BORDEAU,TRIM20
BLUE/ORANGE,TRIM20
PURPLE/TERRA COTTA,TRIM20
PURPLE/BORDEAU,TRIM20
PURPLE/ORANGE,TRIM20
RED/TERRA COTTA,TRIM20
BORDEAUX/WHITE,TRIM20
BORDEAUX/CREAM,TRIM20
BORDEAUX/BLACK,TRIM20
BORDEAUX/RED,TRIM20
BORDEAUX/CAMEL YELLOW,TRIM20
BORDEAUX/BLUE,TRIM20
BORDEAUX/PURPLE,TRIM20
BORDEAUX/SILVER,TRIM20
BORDEAUX/DARK BROWN,TRIM20
BORDEAUX/TERRA COTTA,TRIM20
RED/BORDEAU,TRIM20
RED/ORANGE,TRIM20
BORDEAUX/BORDEAU,TRIM20
BORDEAUX/ORANGE,TRIM20
58805BPANEL SUB-ASSY, CONSOLE, LOWER
CREAM,TRIM20
BLACK,TRIM20
RED,TRIM20
BORDEAUX,TRIM20
SADDLE TAN,TRIM20
ORANGE,TRIM20
BLACKISH BROWN,TRIM20
CAMEL YELLOW,TRIM20
BLUE,TRIM20
PURPLE,TRIM20
58828ABRACKET, CONSOLE BOX, LOWER
8401
9011905045
main90119-05045
9015950327
main90159-50327
9046710201
main90467-10201
9046805135
main90468-05135
9167180620
main91671-80620
9354055014
main93540-55014
12 parts on this diagram · 2 diagrams in section
