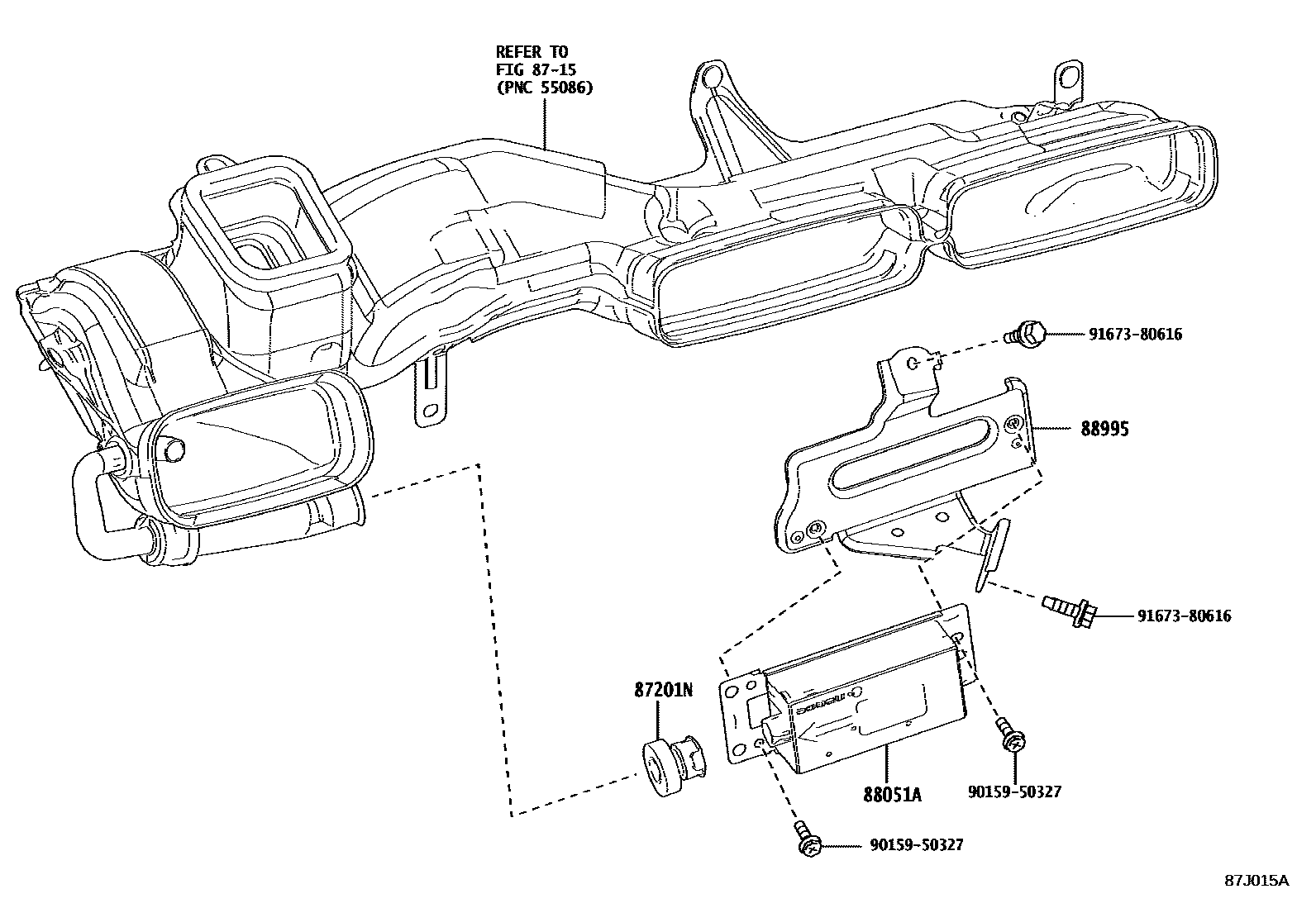

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-50010iURZ100202007

88051AGENERATOR SUB-ASSY,ION

main88051-28060iURZ100202007-202111

main88051-48010iURZ100202111

88995BRACKET,ION GENERATOR, NO.1

main88995-11010iURZ100..LHD202007

main88995-11020iURZ100..RHD202007

9015950327

main90159-50327

9167380616

main91673-80616

6 parts on this diagram · 2 diagrams in section
