HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

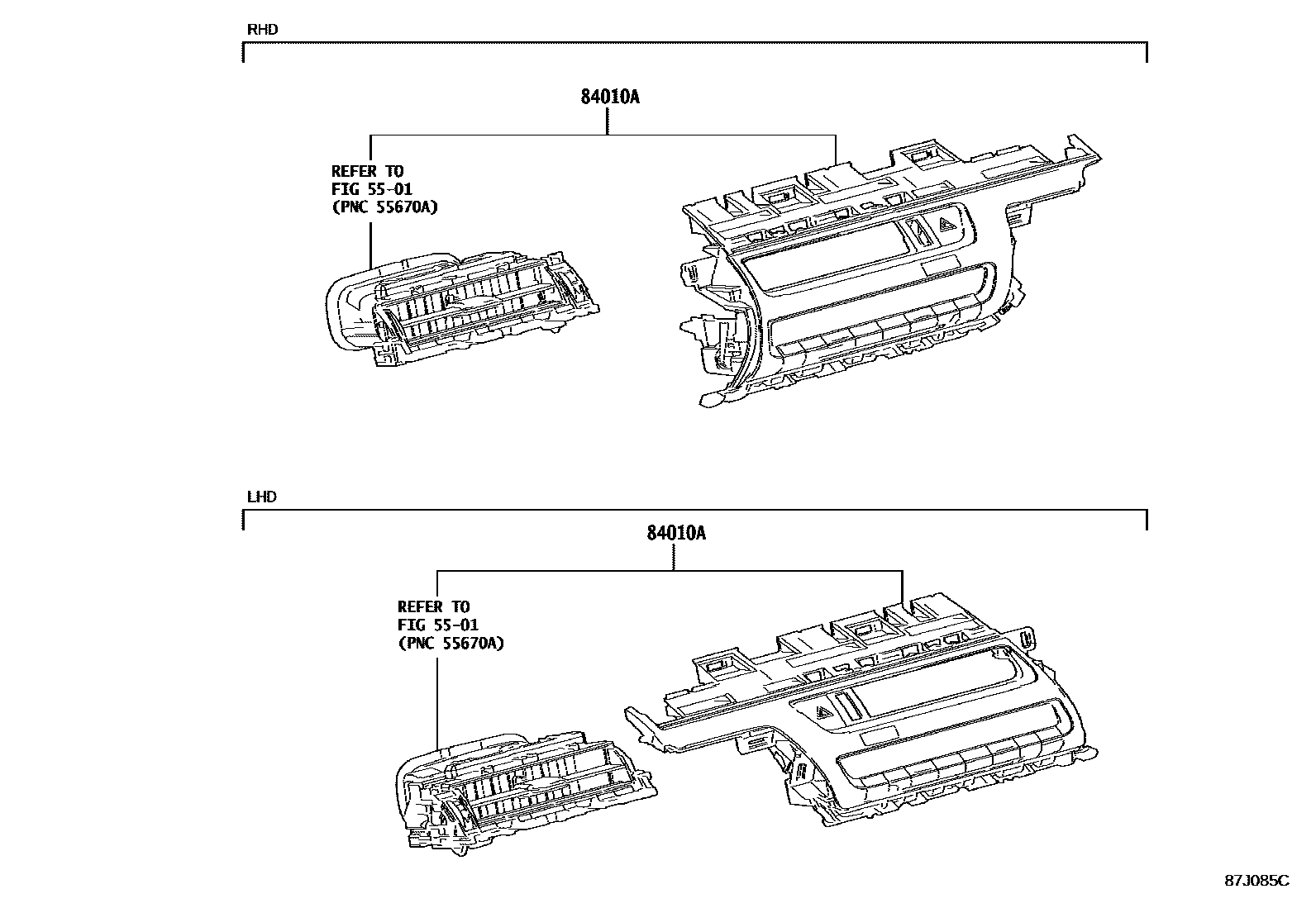

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-11050iURZ100..LHD..(EUR,GEN)202007-202111

main84010-11070iURZ100..GCC202007-202111

main84010-11080iURZ100..RHD202007-202111

main84010-11090iURZ100..LHD..(EUR,GEN)202111

main84010-11100iURZ100..GCC202111

main84010-11110iURZ100..RHD202111

2 parts on this diagram · 5 diagrams in section
