HORN

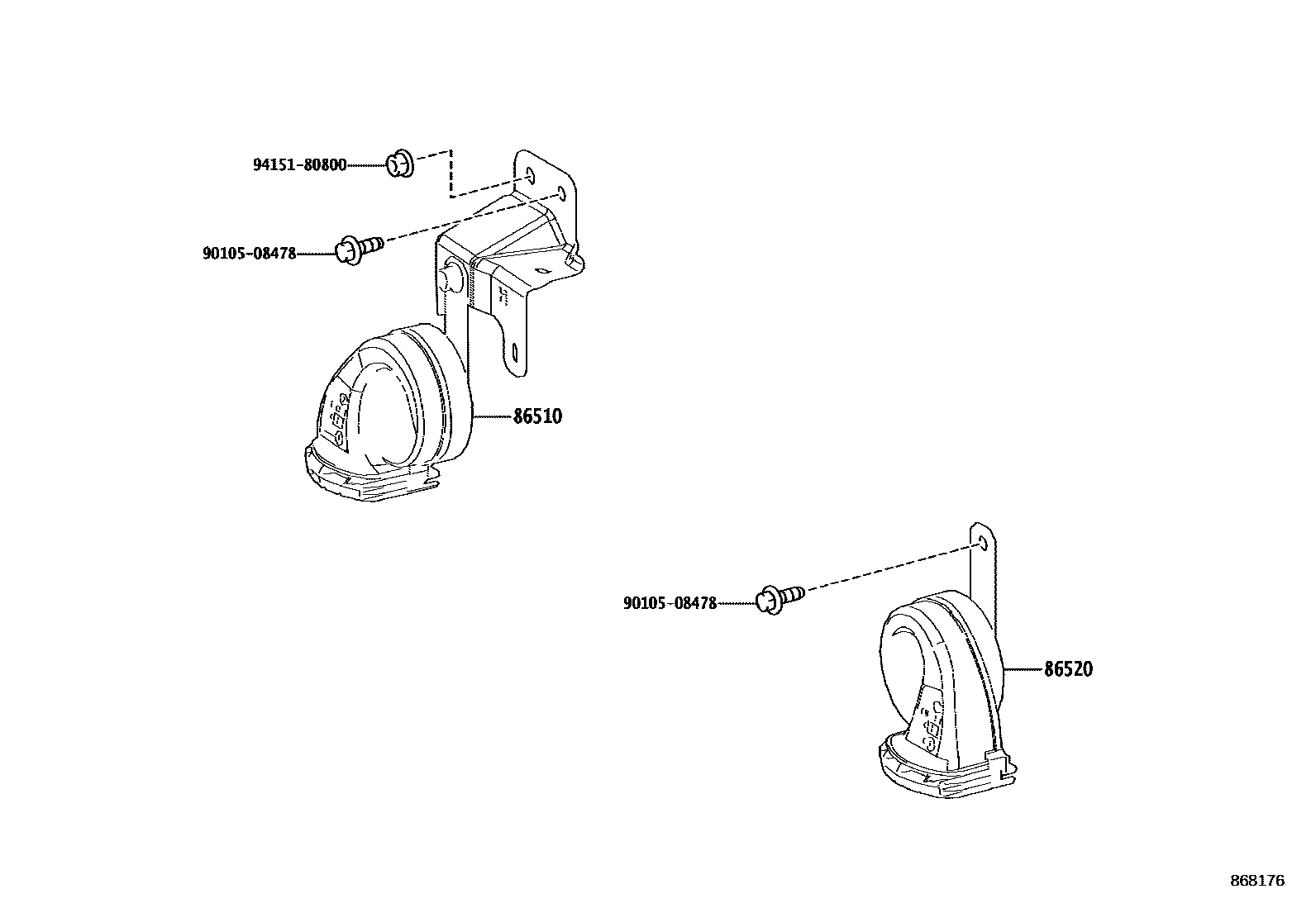

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86501-11031i202007

main86501-11060i202007

86520HORN ASSY, LOW PITCHED

main86520-11020i202007

main86520-30670i202007

9010508478

main90105-08478

9415180800

main94151-80800

4 parts on this diagram · 1 diagram in section
