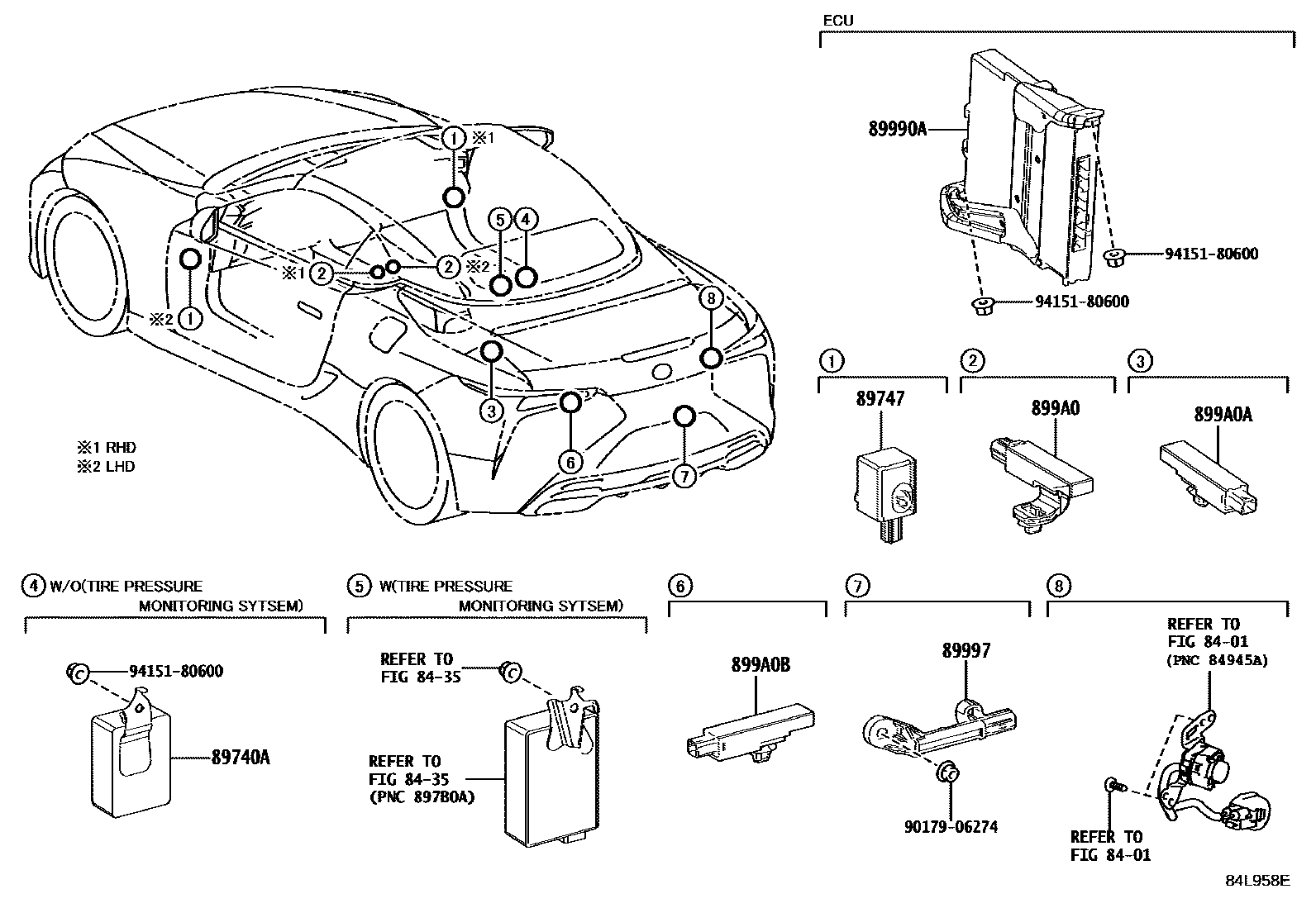

WIRELESS DOOR LOCK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-11040iURZ100..ARL202007-202210

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iURZ100202007

89990ACOMPUTER ASSY, SMART KEY

main89990-11070supersedes 89990-11121iURZ100..LHD..EUR;URZ100..ARL,GCC,GEN; URZ100..RHD..EUR202007

CYPRUS SPEC; IRELAND SPEC

main89990-11140iURZ100..ARL202104-202212

INDONESIA SPEC

main89990-11141iURZ100..ARL202301

INDONESIA SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-30100iURZ100202007

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-11010iURZ100202007

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iURZ100202007

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iURZ100202007

9017906274

main90179-06274

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
