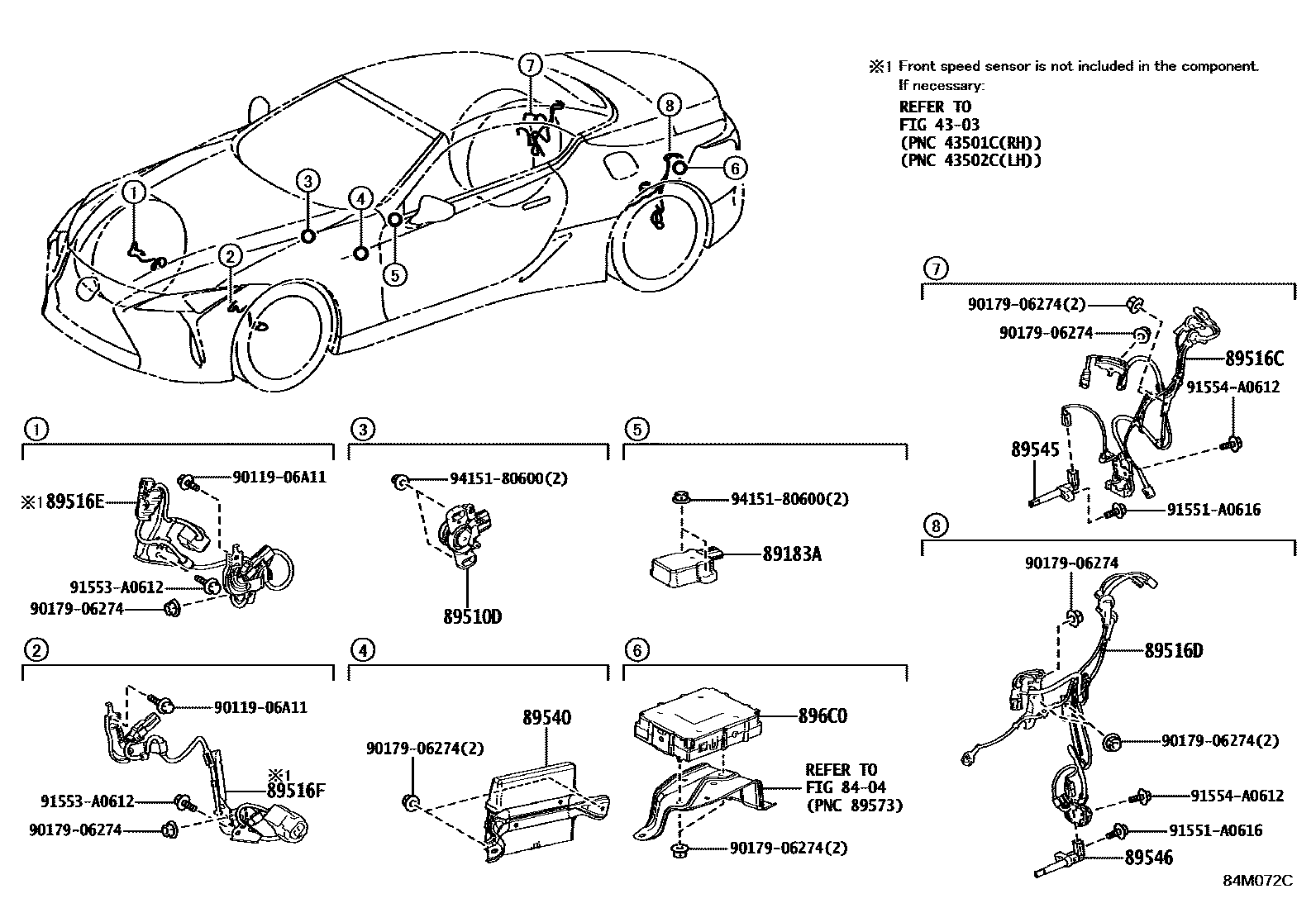

ABS & VSC

0001 1 0002 1

4303FRONT AXLE HUB

→ Go to FIG 43-03

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

89183ASENSOR, YAWRATE

main89183-48020iURZ100202007

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iURZ100..LHD202007

main89510-33030iURZ100..RHD202007

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-11030iURZ100202007

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-11040iURZ100202007

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-11010iURZ100202007

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-11020iURZ100202007

89540COMPUTER ASSY, SKID CONTROL

main895B0-11270iURZ100..LHD..(EUR,GCC)202007

main895B0-11280iURZ100..GEN202007

main895B0-11690iURZ100..RHD..EUR202007

main895B0-11700iURZ100..ARL202007

89545SENSOR, SPEED, REAR RH

main89545-30090iURZ100202007

89546SENSOR, SPEED, REAR LH

main89546-30090iURZ100202007

896C0SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET

main896C0-11010iURZ100202007

9011906A11

main90119-06A11

9017906274

main90179-06274

91551A0616

main91551-A0616

91553A0612

main91553-A0612

91554A0612

main91554-A0612

9415180600

main94151-80600

18 parts on this diagram · 2 diagrams in section
