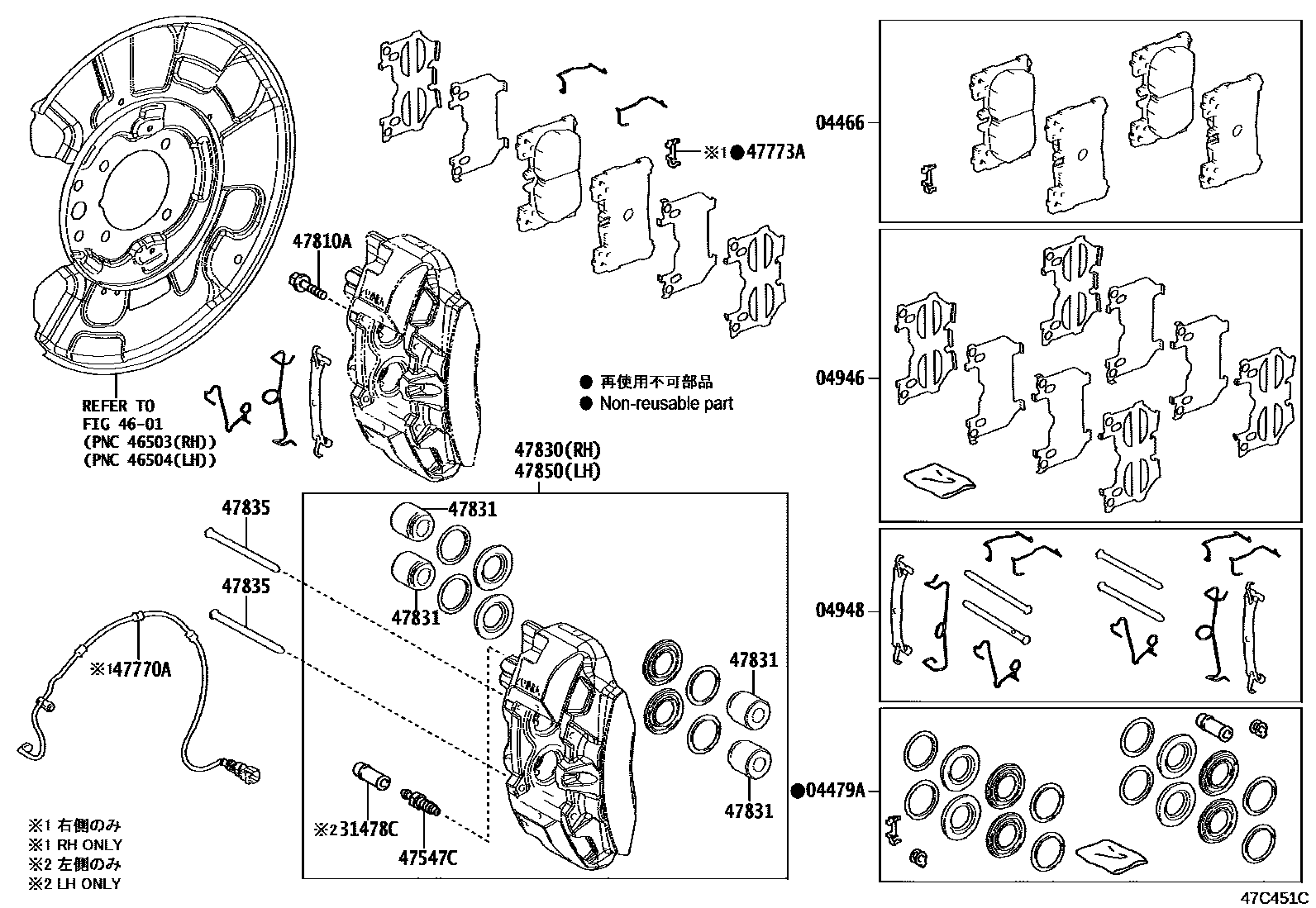

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-11010iURZ100..EUR,GCC202007

MARK AK NS380H

main04466-11020iURZ100..ARL,GEN202007

MARK NBK D6994H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-11010iURZ100202007

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-11010iURZ100202007

04948FITTING KIT, DISC BRAKE, REAR

main04948-11010iURZ100..ARL,GEN202007

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iURZ100202007

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010iURZ100202007

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-11020iURZ100202007

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030iURZ100202007

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12396iURZ100202007

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-11010iURZ100202007

47831PISTON, REAR DISC BRAKE

main47831-11010iURZ100202007

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-50140iURZ100202007

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-11010iURZ100202007

14 parts on this diagram · 1 diagram in section
