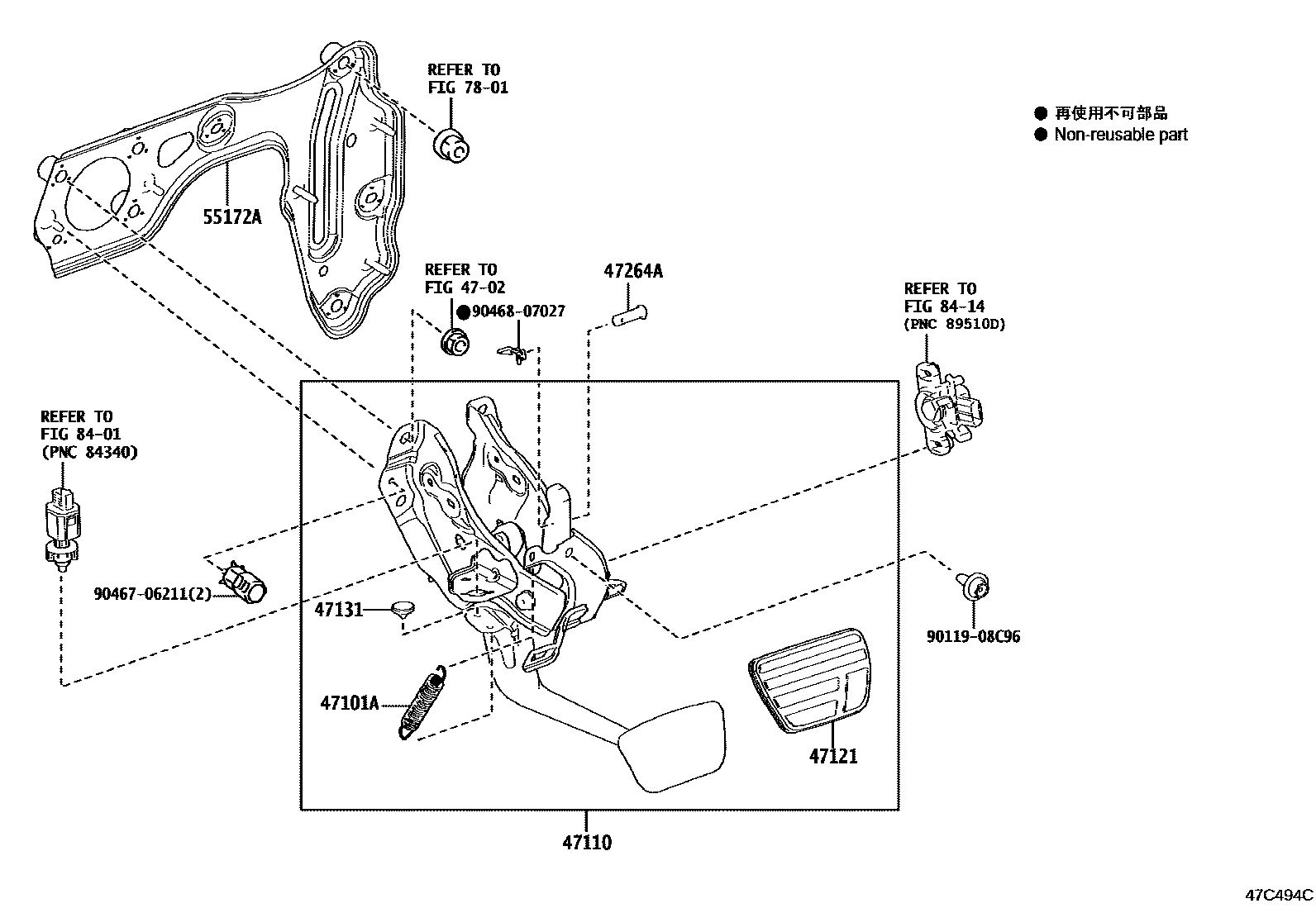

BRAKE PEDAL & BRACKET

0001 1 0002 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13014iURZ100202007

47110SUPPORT ASSY, BRAKE PEDAL

main47110-11011iURZ100..LHD202007

main47110-11021iURZ100..RHD202007

47121PAD, BRAKE PEDAL

main47121-11020iURZ100202007

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iURZ100202007

47264APIN(FOR PUSH ROD)

main90240-08078iURZ100202007

55172ABASE, BRAKE PEDAL SUPPORT

main55172-11010iURZ100..LHD202007

main55172-11020iURZ100..RHD202007

7801ACCELERATOR LINK

→ Go to FIG 78-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

13 parts on this diagram · 2 diagrams in section
