STANDARD TOOL

09111JACK SUB-ASSY

main09111-11060iURZ100..ARL202007

JACK-WITH(DOP, AUSTRALIA & NEW ZEALAND SPEC)

main09111-50130iURZ100..ARL202007-202111

JACK-WITH (DOP)&MALAYSIA SPEC

main09111-50131iURZ100202208

QATAR SPEC

09113HANDLE, JACK

main09113-30050iURZ100..ARL202007

QATAR SPEC

09120BAG, TOOL

main09120-24020iURZ100202007

TOOL(DOP)-SPANNER & PLIERS

09120CBAG,TOOL, NO.2

main09120-13030iURZ100202007

09130PLIERS

main09130-50040iURZ100202007

TOOL(DOP)-SPANNER & PLIERS

09135DRIVER, SCREW

main99915-10700iURZ100202007

09141SPANNER

main09141-60010iURZ100202007

8 X 10,TOOL(DOP)-SPANNER & PLIERS

main09141-60020iURZ100202007

12 X 14,TOOL(DOP)-SPANNER & PLIERS

09150WRENCH, HUB NUT BOX

main09150-50040iURZ100..ARL202007-202111

JACK-WITH (DOP)&MALAYSIA SPEC

09168WRENCH, ROOF PANEL

main09168-11010iURZ100202007

51960HOOK ASSY, FRONT

main51961-11030iURZ100202007

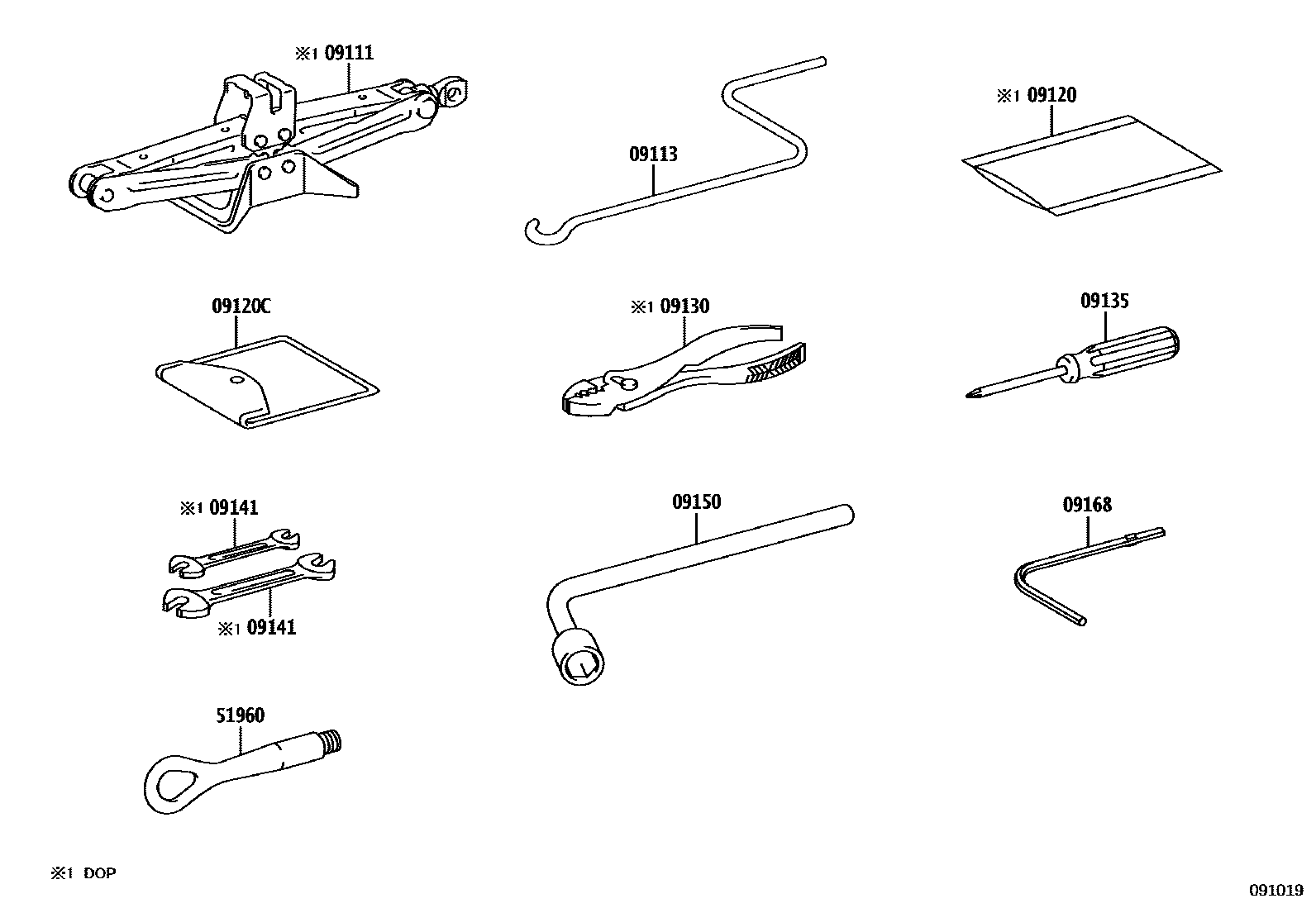

10 parts on this diagram · 1 diagram in section
