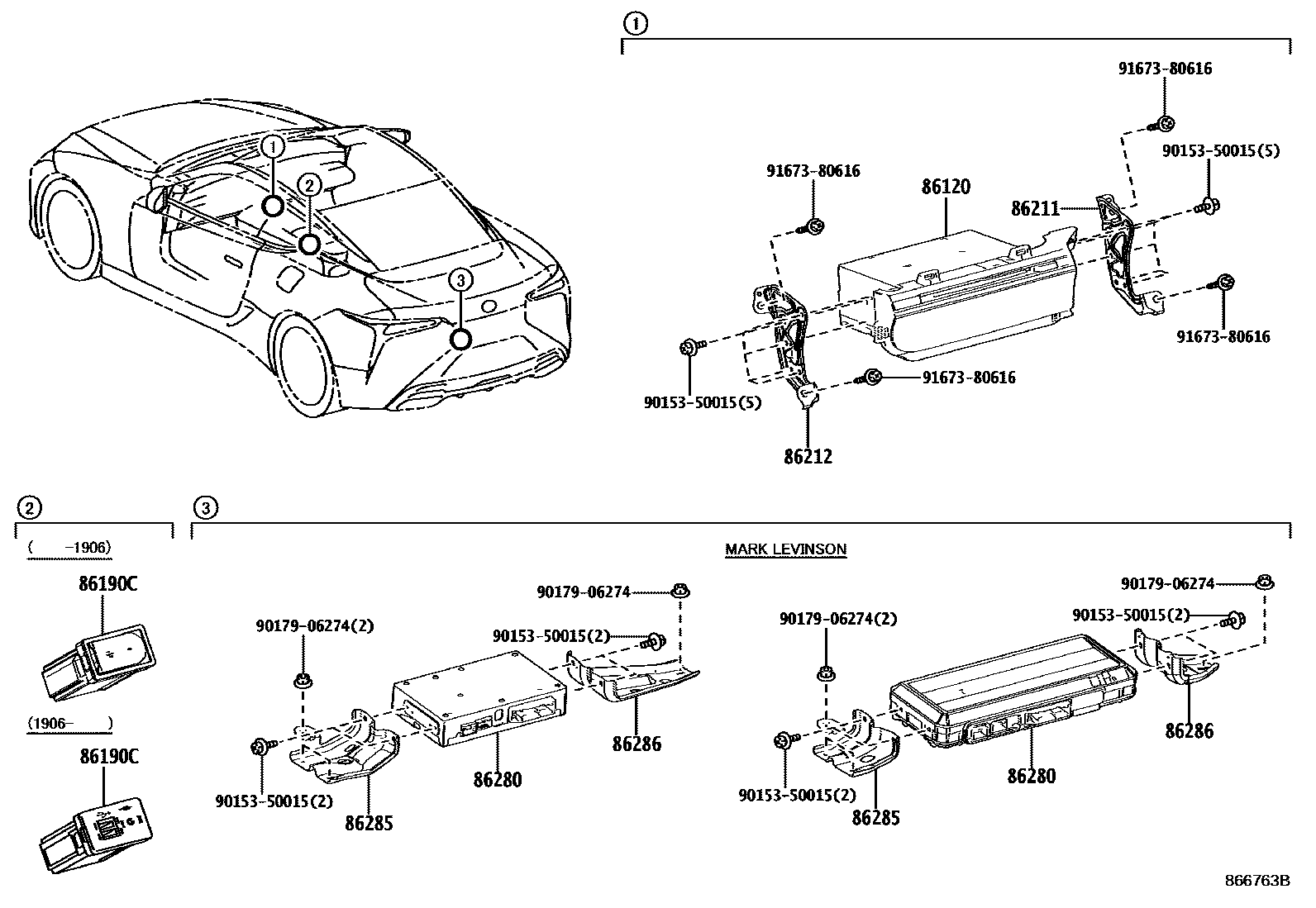

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-11120iGWZ100,URZ100..ARL201703-201809

PIONEER

main86120-11220iGWZ100,URZ100..GCC201703-201809

PIONEER

main86120-11240iGWZ100..CHI201712-201809

PIONEER

main86120-11340iGWZ100,URZ100..GEN201703-201709

PIONEER

sub86120-11341

main86120-11341iGWZ100,URZ100..GEN201710-201809

PIONEER

main86120-11580iGWZ100,URZ100..ARL201809-202004

PIONEER

main86120-11660iGWZ100,URZ100..GCC201809-202004

PIONEER

main86120-11681iGWZ100..CHI201809-202004

PIONEER

main86120-11740iGWZ100,URZ100..GEN201809-201906

PIONEER

main86120-11750iGWZ100,URZ100..GEN201906-202004

PIONEER

main86120-11D20iURZ100..GCC202004-202007

PANASONIC

main86120-11D70iGWZ100,URZ100..ARL202004-202111

PIONEER

main86120-11D80iGWZ100,URZ100..ARL202111

PIONEER

main86120-11F30iGWZ100..CHI202004-202111

PIONEER

main86120-11F50iGWZ100..GCC202005-202111

PIONEER

main86120-11F60iGWZ100,URZ100..GCC202111

PIONEER

main86120-11G00iGWZ100,URZ100..GEN202004

PIONEER

main86120-11G60iGWZ100..CHI202111

PIONEER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010iGWZ100,URZ100201703-201906

main86190-24030iGWZ100,URZ100201906

86211BRACKET, RADIO, NO.1

main86211-11010iGWZ100,URZ100201703

86212BRACKET, RADIO, NO.2

main86212-11010iGWZ100,URZ100201703

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WE22iGWZ100..GEN201906-201909

sub86280-11040

main86280-0WF02iURZ100..GEN201906-201910

sub86280-11050

main86280-11010iGWZ100201703-201709

sub86280-11011

main86280-11011iGWZ100..CHI201710-202111

main86280-11020iURZ100201703-201709

sub86280-11021

main86280-11021iURZ100..ARL,GCC201710-202111

main86280-11040iGWZ100..ARL,GCC202111

main86280-11040iGWZ100..GEN201910

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP

main86280-11050iURZ100..GEN201911

86285BRACKET, AMPLIFIER, NO.1

main86285-11010iGWZ100,URZ100..GEN201703-202111

main86285-11020iGWZ100,URZ100..GEN201906

86286BRACKET, AMPLIFIER, NO.2

main86286-11010iGWZ100,URZ100..GEN201703-202111

main86286-11020iGWZ100,URZ100..GEN201906

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

10 parts on this diagram · 2 diagrams in section
