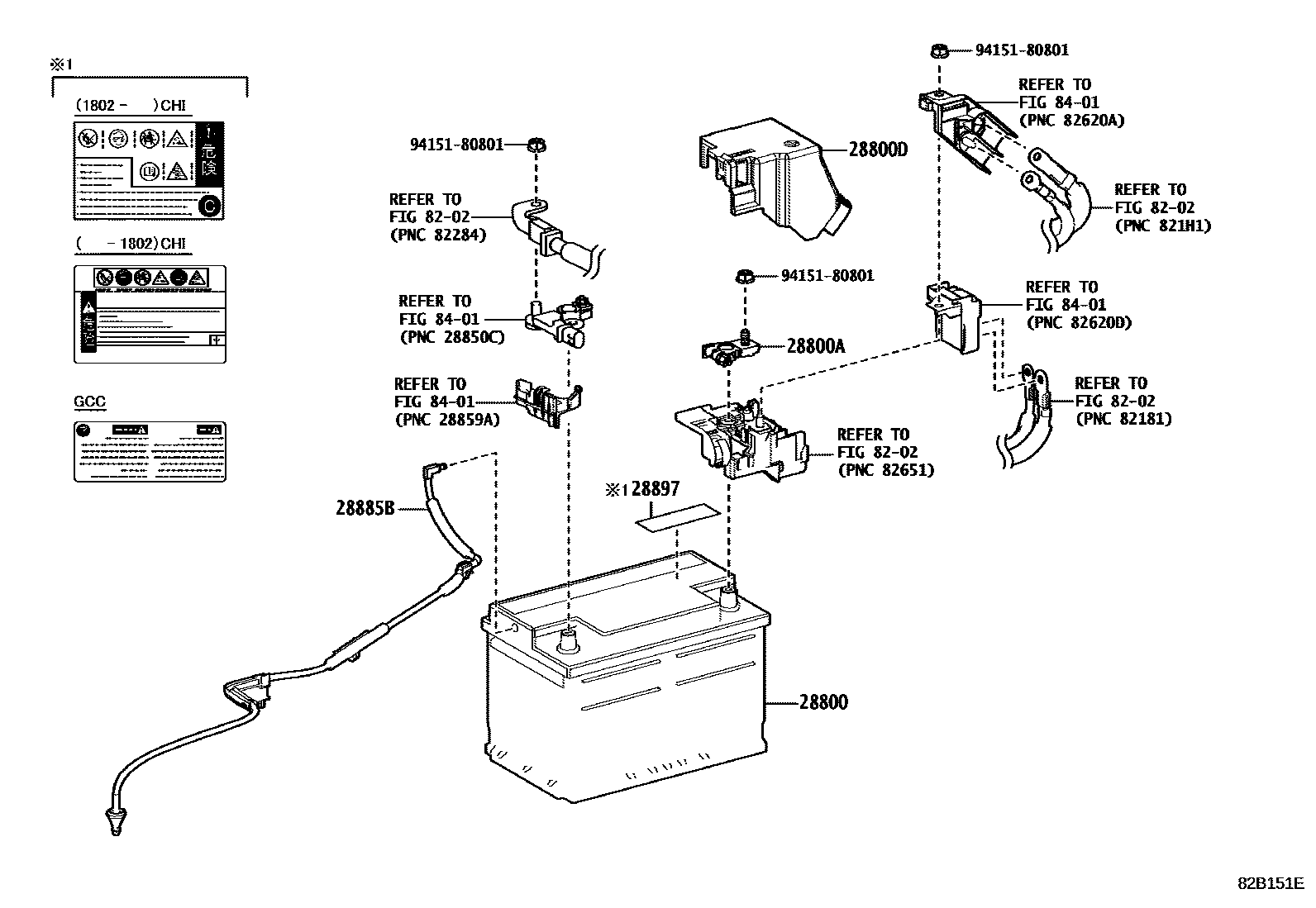

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1 0003 1SUB-BATTERY 0004 1SUB-BATTERY 0005 1HV BATTERY 0006 1HV BATTERY 0007 1HV BATTERY

28800BATTERY

main28800-31450i8GRFXS..GWZ100201703-202207

LN3

main28800-31451i8GRFXS..GWZ100202208-202302

LN3

main28800-31452i8GRFXS..GWZ100202303

LN3

main28800-38190i2URGSE..URZ100201703-202207

LN4

main28800-38191i2URGSE..URZ100202208-202302

LN4

main28800-38192i2URGSE..URZ100202303

LN4

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i8GRFXS,2URGSE..GWZ100,URZ100201703

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50730i8GRFXS,2URGSE..GWZ100,URZ100201703

28885BHOSE, BATTERY

main28885-38020i8GRFXS,2URGSE..GWZ100,URZ100201703

28897PLATE, BATTERY CAUTION

main28897-31010i8GRFXS..GWZ100..CHI201712-201801

main28897-38030i8GRFXS,2URGSE..GWZ100,URZ100..GCC201703

main28897-38060i8GRFXS..GWZ100..CHI201802

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

8 parts on this diagram · 7 diagrams in section
