ROOF HEADLINING & SILENCER PAD

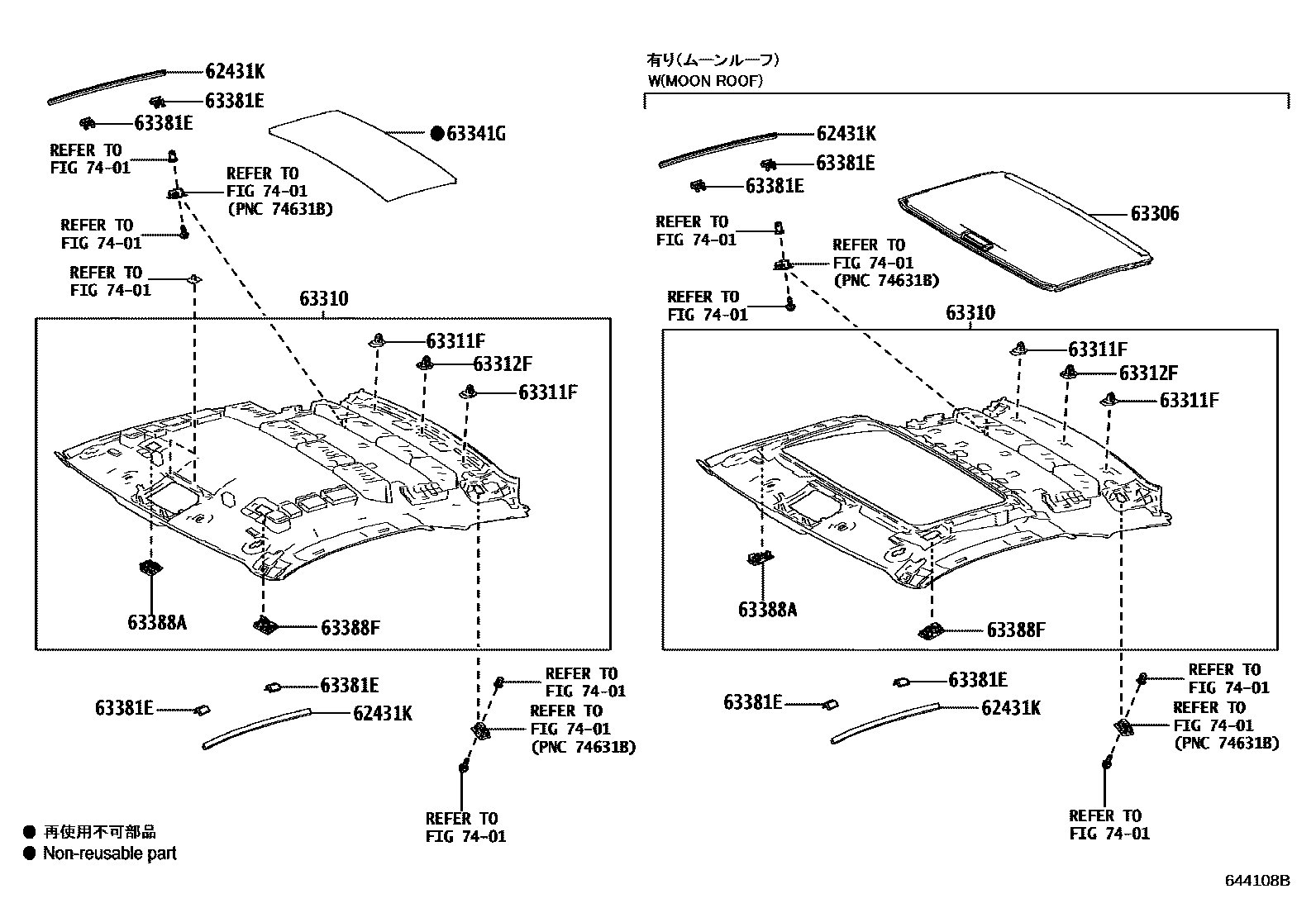

Parts diagram

62431KGARNISH, ROOF SIDE RAIL

main62431-11010i201703

63306TRIM SUB-ASSY, SUNSHADE

main63306-11010-C0i201703-202111

WITH(CARBON ROOF)&ROOF HEADLINING-BELLEZA,BLACK,TRIM2#,3#

main63306-11010-C0i201703-202111

BLACK,TRIM2#,3#

main63306-11010-C0i201703-202111

WITH(CARBON ROOF),BLACK,TRIM2#,3#

main63306-11010-E0i201703-202111

OCHRE,TRIM4#

main63306-11010-E0i201703-202111

WITH(CARBON ROOF),OCHRE,TRIM4#

main63306-11010-E0i201703-202111

WITH(CARBON ROOF)&ROOF HEADLINING-BELLEZA,OCHRE,TRIM4#

main63306-11020-C1i202111

BLACK,TRIM2#,3#

main63306-11020-C3i202111

BLACK/ORANGE,TRIM42

main63306-11020-E1i202111

OCHRE,TRIM40

63310HEADLINING ASSY, ROOF

main63310-11010-C6i201703-202111

BLACK,TRIM2#,3#

main63310-11010-E5i201703-202111

OCHRE,TRIM4#

main63310-11020-C6i202111

BLACK,TRIM2#,3#

main63310-11020-E5i202111

OCHRE,TRIM40

main63310-11020-E7i202111

ORANGE,TRIM42

63311FCLIP, ROOF HEADLINING, NO.1

main90467-09126i201703

63312FCLIP, ROOF HEADLINING, NO.2

main90467-10181i201703

63341GPAD, ROOF SILENCER

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-11010i201703

63388ACOVER, ROOF HEADLINING HOLDER

main63388-11010-C5i201703-202111

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#,41,42

main63388-11010-C5i201703-202111

BLACK,TRIM2#,3#,42

main63388-11010-C5i202111

BLACK,TRIM2#,3#,41,42

main63388-11010-E2i201703

OCHRE,TRIM40

63388FCOVER, ROOF HEADLINING HOLDER, LH

main63388-11020-C4i201703-202111

BLACK,TRIM2#,3#,42

main63388-11020-C4i201703-202111

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#,41,42

main63388-11020-C4i202111

BLACK,TRIM2#,3#,41,42

main63388-11020-E2i201703

OCHRE,TRIM40

7401

10 parts on this diagram · 1 diagram in section
