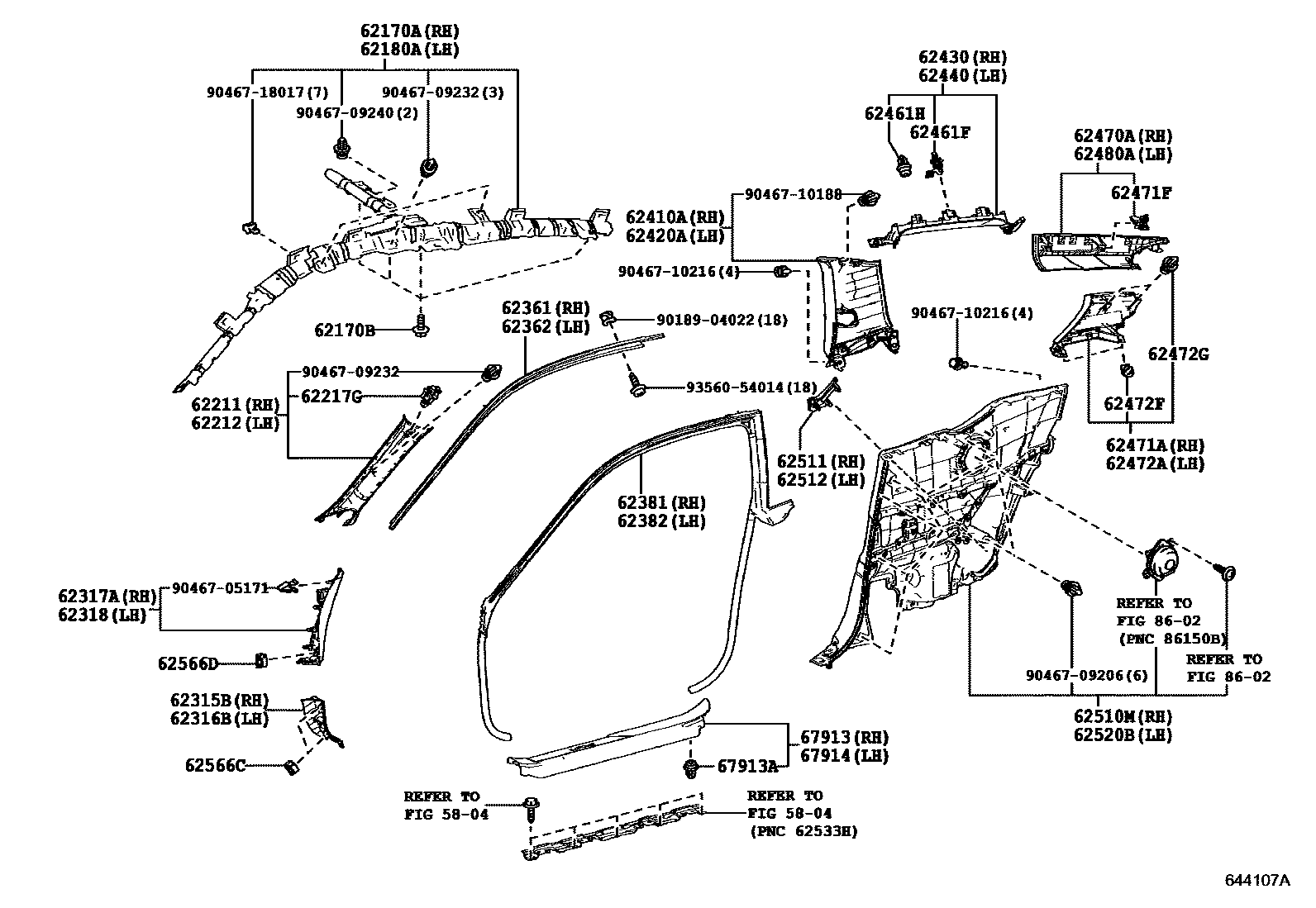

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

5804

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-11010iGWZ100,URZ100201703

62170BBOLT, W/WASHER

main91673-80616iGWZ100,URZ100201703

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-11010iGWZ100,URZ100201703

62211GARNISH, FRONT PILLAR, RH

main62210-11010-C6iGWZ100,URZ100..ARL,CHI,GCC201703-202111

BLACK/IVORY,TRIM2#,3#

main62210-11010-E2iGWZ100,URZ100..GEN201703-202111

OCHRE(BELEZA)/IVORY,TRIM4#

main62210-11020-C6iGWZ100,URZ100..GEN202111

BLACK/IVORY,TRIM2#,3#

main62210-11020-E3iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62210-11020-E5iGWZ100,URZ100..GEN202111

ORANGE/IVORY,TRIM42

62212GARNISH, FRONT PILLAR, LH

main62220-11010-C6iGWZ100,URZ100..GEN201703-202111

BLACK/IVORY,TRIM2#,3#

main62220-11010-E2iGWZ100,URZ100..GEN201703-202111

OCHRE(BELAZA)/IVORY,TRIM4#

main62220-11020-C6iGWZ100,URZ100..GEN202111

BLACK/IVORY,TRIM2#,3#

main62220-11020-E3iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62220-11020-E5iGWZ100,URZ100..GEN202111

ORANGE/IVORY,TRIM42

62217GCLIP, FRONT PILLAR GARNISH

main62217-11020iGWZ100,URZ100201703

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-11010-C1iGWZ100,URZ100201703

BLACK,TRIM2#,3#,42

main62315-11010-E1iGWZ100,URZ100201703

OCHRE,TRIM40

main62315-11010-E3iGWZ100,URZ100201909-202004

KUROKOHAKU,TRIM41

main62315-11010-J0iGWZ100,URZ100201703-202004

BLUE,TRIM8#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-11010-C1iGWZ100,URZ100201703

BLACK,TRIM2#,3#,42

main62316-11010-E1iGWZ100,URZ100201703

OCHRE,TRIM40

main62316-11010-E3iGWZ100,URZ100201909-202004

KUROKOHAKU,TRIM41

main62316-11010-J0iGWZ100,URZ100201703-202004

BLUE,TRIM8#

62317ACOVER, FRONT DOOR OPENING TRIM, NO.2 RH

main62317-11010-C3iGWZ100,URZ100..LHD201703

BLACK,TRIM2#,3#,42

main62317-11010-E2iGWZ100,URZ100..LHD201703

OCHRE,TRIM40

main62317-11020-C2iGWZ100,URZ100..ARL201703

BLACK,TRIM2#,3#,42

main62317-11020-E2iGWZ100,URZ100..ARL201703

OCHRE,TRIM40

62318COVER, FRONT DOOR OPENING TRIM, NO.2 LH

main62318-11010-C3iGWZ100,URZ100..LHD201703

BLACK,TRIM2#,3#,42

main62318-11010-E2iGWZ100,URZ100..LHD201703

OCHRE,TRIM40

main62318-11020-C2iGWZ100,URZ100..ARL201703

BLACK,TRIM2#,3#,42

main62318-11020-E2iGWZ100,URZ100..ARL201703

OCHRE,TRIM40

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-11010iGWZ100,URZ100201703

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-11010iGWZ100,URZ100201703

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-11010iGWZ100,URZ100201703

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-11010iGWZ100,URZ100201703

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-11010-C4iGWZ100,URZ100..ARL,CHI,GCC201703-202111

BLACK,TRIM2#,3#

main62410-11010-E0iGWZ100,URZ100..ARL,CHI,GCC201703-202111

OCHRE,TRIM4#

main62410-11020-C5iGWZ100,URZ100..GEN202111

BLACK,TRIM2#,3#

main62410-11020-E2iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62410-11020-E4iGWZ100,URZ100..GEN202111

ORANGE,TRIM42

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-11010-C4iGWZ100,URZ100..ARL,CHI,GCC201703-202111

BLACK,TRIM2#,3#

main62420-11010-E0iGWZ100,URZ100..GEN201703-202111

OCHRE,TRIM4#

main62420-11020-C5iGWZ100,URZ100..GEN202111

BLACK,TRIM2#,3#

main62420-11020-E2iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62420-11020-E4iGWZ100,URZ100..GEN202111

ORANGE,TRIM42

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-11010-C4iGWZ100,URZ100..GEN201703-202111

BLACK,TRIM2#,3#

main62430-11010-E0iGWZ100,URZ100..GEN201703-202111

OCHRE,TRIM4#

main62430-11020-C5iGWZ100,URZ100..GEN202111

BLACK,TRIM2#,3#

main62430-11020-E2iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62430-11020-E4iGWZ100,URZ100..GEN202111

ORANGE,TRIM42

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-11010-C4iGWZ100,URZ100..ARL,CHI,GCC201703-202111

BLACK,TRIM2#,3#

main62440-11010-E0iGWZ100,URZ100..GEN201703-202111

OCHRE,TRIM4#

main62440-11020-C5iGWZ100,URZ100..GEN202111

BLACK,TRIM2#,3#

main62440-11020-E2iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62440-11020-E4iGWZ100,URZ100..GEN202111

ORANGE,TRIM42

62461FCLIP (FOR ROOF SIDE TRIM GARNISH)

main62217-11010iGWZ100,URZ100201703

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-09232iGWZ100,URZ100201703

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-11010-C8iGWZ100,URZ100..ARL,CHI,GCC201703-202111

BLACK/IVORY,TRIM2#,3#

main62470-11010-E2iGWZ100,URZ100..ARL,CHI,GCC201703-202111

OCHRE(BELEZA),TRIM4#

main62470-11020-C7iGWZ100,URZ100..GEN202111

BLACK/IVORY,TRIM2#,3#

main62470-11020-E3iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62470-11020-E5iGWZ100,URZ100..GEN202111

ORANGE/IVORY,TRIM42

62471AGARNISH, ROOF SIDE, INNER RH

main62471-11010-C6iGWZ100,URZ100..GEN201703-202111

BLACK,TRIM2#,3#

main62471-11010-E4iGWZ100,URZ100..GEN201703-202111

OCHRE,TRIM4#

main62471-11020-C6iGWZ100,URZ100..GEN202111

BLACK,TRIM2#,3#

main62471-11020-E4iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62471-11020-E6iGWZ100,URZ100..GEN202111

ORANGE,TRIM42

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main62217-11010iGWZ100,URZ100201703-201811

main62217-42050iGWZ100,URZ100201812

62472AGARNISH, ROOF SIDE, INNER LH

main62472-11010-C6iGWZ100,URZ100..GEN201703-202111

BLACK,TRIM2#,3#

main62472-11010-E4iGWZ100,URZ100..GEN201703-202111

OCHRE,TRIM4#

main62472-11020-C6iGWZ100,URZ100..GEN202111

BLACK,TRIM2#,3#

main62472-11020-E4iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62472-11020-E6iGWZ100,URZ100..GEN202111

ORANGE,TRIM42

62472FCLIP(FOR REAR PILLAR GARNISH)

main90467-09212iGWZ100,URZ100201703

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iGWZ100,URZ100201703

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-11010-C8iGWZ100,URZ100..ARL,CHI,GCC201703-202111

BLACK/IVORY,TRIM2#,3#

main62480-11010-E2iGWZ100,URZ100..GEN201703-202111

OCHRE(BELEZA),TRIM4#

main62480-11020-C7iGWZ100,URZ100..GEN202111

BLACK/IVORY,TRIM2#,3#

main62480-11020-E3iGWZ100,URZ100..GEN202111

OHCRE,TRIM40

main62480-11020-E5iGWZ100,URZ100..GEN202111

ORANGE/IVORY,TRIM42

62510MPANEL ASSY, QUARTER TRIM, RH

main62510-11070-20iGWZ100,URZ100..GEN201703-202004

DK.ROSE,TRIM3#

main62510-11070-21iGWZ100,URZ100..GEN201809-201906

BLACK,TRIM20,21

main62510-11070-21iGWZ100,URZ100..GEN201809-201906

BLACK,TRIM20,21,22

main62510-11070-21iGWZ100,URZ100..ARL,GCC201906-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,BLACK,TRIM2#

main62510-11070-21iGWZ100,URZ100..ARL,GCC201703-202111

BLACK,TRIM2#

main62510-11070-22iGWZ100,URZ100201809-201906

BLACK/YELLOW,TRIM21

main62510-11070-23iGWZ100,URZ100..GEN202004-202111

BLACK/RED,TRIM3#

main62510-11070-23iGWZ100,URZ100..ARL,GCC202004-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,BLACK/RED,TRIM3#

main62510-11070-24iGWZ100,URZ100..ARL,GCC202004-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,BLACK/ORANGE,TRIM42

main62510-11070-24iGWZ100..CHI202004-202111

BLACK/ORANGE,TRIM42

main62510-11070-E2iGWZ100..CHI201909-202111

OCHRE,TRIM40

main62510-11070-E2iGWZ100,URZ100..GEN201703-201909

OCHRE,TRIM4#

main62510-11070-E2iGWZ100,URZ100..ARL,GCC201909-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,OCHRE,TRIM40

main62510-11070-E3iGWZ100,URZ100..GEN201909-202004

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,KUROKOHAKU,TRIM41

main62510-11070-E3iGWZ100,URZ100..ARL,CHI,GCC201909-202004

KUROKOHAKU,TRIM41

main62510-11070-J1iGWZ100,URZ100..GEN201703-202004

BLUE,TRIM8#

main62510-11080-C5iGWZ100,URZ100..GEN201906-202004

DK.ROSE,TRIM3#

main62510-11080-C6iGWZ100..CHI201906-202204

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK,TRIM2#

main62510-11080-C6iGWZ100,URZ100..ARL,GCC201906-202204

BLACK,TRIM2#

main62510-11080-C8iGWZ100..CHI202004-202204

BLACK/RED,TRIM3#

main62510-11080-C8iGWZ100,URZ100..GEN202004-202204

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK/RED,TRIM3#

main62510-11080-C9iGWZ100..CHI202004-202204

BLACK/ORANGE,TRIM42

main62510-11080-C9iGWZ100..CHI202004-202204

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK/ORANGE,TRIM42

main62510-11080-E0iGWZ100..CHI201909-202204

OCHRE,TRIM40

main62510-11080-E0iGWZ100,URZ100..ARL,GCC,GEN201909-202204

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHRE,TRIM40

main62510-11080-E0iGWZ100,URZ100..GEN201906-201909

OCHRE,TRIM4#

main62510-11080-E1iGWZ100,URZ100..ARL,CHI,GCC201909-202004

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,KUROKOHAKU,TRIM41

main62510-11080-E1iGWZ100,URZ100..GEN201909-202004

KUROKOHAKU,TRIM41

main62510-11080-J0iGWZ100,URZ100..GEN201906-202004

BLUE,TRIM8#

main62510-11081-C6iGWZ100..CHI202205-202211

BLACK,TRIM2#

sub62510-11080

main62510-11081-C6iGWZ100,URZ100..ARL,GCC,GEN202205-202211

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK,TRIM2#

sub62510-11080

main62510-11081-C8iGWZ100..CHI202205-202211

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK/RED,TRIM3#

sub62510-11080

main62510-11081-C8iGWZ100..CHI202205-202211

BLACK/RED,TRIM3#

sub62510-11080

main62510-11081-C9iGWZ100..CHI202205-202211

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK/ORANGE,TRIM42

sub62510-11080

main62510-11081-C9iGWZ100..CHI202205-202211

BLACK/ORANGE,TRIM42

sub62510-11080

main62510-11081-E0iGWZ100..CHI202205-202211

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHER/LT.OCHRE,TRIM40

sub62510-11080

main62510-11081-E0iGWZ100..CHI202205-202211

OCHER/LT.OCHRE,TRIM40

sub62510-11080

62511BOARD, QUARTER INSIDE TRIM, RH

main62503-11010-C1iGWZ100,URZ100201703

BLACK,TRIM2#,3#,42

main62503-11010-E1iGWZ100,URZ100201703

OCHRE,TRIM40

main62503-11010-E2iGWZ100,URZ100201909-202004

KUROKOHAKU,TRIM41

main62503-11010-J0iGWZ100,URZ100201703-202004

BLUE,TRIM8#

62512BOARD, QUARTER INSIDE TRIM, LH

main62504-11010-C1iGWZ100,URZ100201703

BLACK,TRIM2#,3#,42

main62504-11010-E1iGWZ100,URZ100201703

OCHRE,TRIM40

main62504-11010-E2iGWZ100,URZ100201909-202004

KUROKOHAKU,TRIM41

main62504-11010-J0iGWZ100,URZ100201703-202004

BLUE,TRIM8#

62520BPANEL ASSY, QUARTER TRIM, LH

main62520-11070-20iGWZ100,URZ100..GEN201703-202004

DK.ROSE,TRIM3#

main62520-11070-21iGWZ100,URZ100..ARL,GCC201703-202111

BLACK,TRIM2#

main62520-11070-21iGWZ100,URZ100..ARL,GCC201906-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,BLACK,TRIM2#

main62520-11070-21iGWZ100,URZ100..GEN201809-201906

BLACK,TRIM20,21

main62520-11070-21iGWZ100,URZ100..GEN201809-201906

BLACK,TRIM20,21,22

main62520-11070-22iGWZ100,URZ100201809-201906

BLACK/YELLOW,TRIM21

main62520-11070-23iGWZ100,URZ100..ARL,GCC202004-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,BLACK/RED,TRIM3#

main62520-11070-23iGWZ100..CHI202004-202111

BLACK/RED,TRIM3#

main62520-11070-24iGWZ100..CHI202004-202111

BLACK/ORANGE,TRIM42

main62520-11070-24iGWZ100,URZ100..ARL,GCC202004-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,BLACK/ORANGE,TRIM42

main62520-11070-E2iGWZ100,URZ100..ARL,GCC201909-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,OCHRE,TRIM40

main62520-11070-E2iGWZ100,URZ100..ARL,CHI,GCC201703-201909

OCHRE,TRIM4#

main62520-11070-E2iGWZ100,URZ100..ARL,GCC201909-202111

OCHRE,TRIM40

main62520-11070-E3iGWZ100,URZ100..ARL,CHI,GCC201909-202004

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,KUROKOHAKU,TRIM41

main62520-11070-E3iGWZ100,URZ100..ARL,CHI,GCC201909-202004

KUROKOHAKU,TRIM41

main62520-11070-J1iGWZ100,URZ100..GEN201703-202004

BLUE,TRIM8#

main62520-11080-C5iGWZ100,URZ100..GEN201906-202004

DK.ROSE,TRIM3#

main62520-11080-C6iGWZ100,URZ100..ARL,GCC201906-202204

BLACK,TRIM2#

main62520-11080-C6iGWZ100,URZ100..GEN201906-202204

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK,TRIM2#

main62520-11080-C8iGWZ100..CHI202004-202204

BLACK/RED,TRIM3#

main62520-11080-C8iGWZ100,URZ100..GEN202004-202204

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK/RED,TRIM3#

main62520-11080-C9iGWZ100..CHI202004-202204

BLACK/ORANGE,TRIM42

main62520-11080-C9iGWZ100,URZ100..ARL,GCC,GEN202004-202204

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK/ORANGE,TRIM42

main62520-11080-E0iGWZ100,URZ100..GEN201909-202204

OCHRE,TRIM40

main62520-11080-E0iGWZ100..CHI201909-202204

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHRE,TRIM40

main62520-11080-E0iGWZ100,URZ100..GEN201906-201909

OCHRE,TRIM4#

main62520-11080-E1iGWZ100,URZ100..ARL,CHI,GCC201909-202004

KUROKOHAKU,TRIM41

main62520-11080-E1iGWZ100,URZ100..ARL,CHI,GCC201909-202004

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,KUROKOHAKU,TRIM41

main62520-11080-J0iGWZ100,URZ100..GEN201906-202004

BLUE,TRIM8#

main62520-11081-C6iGWZ100..CHI202205-202211

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK,TRIM2#

sub62520-11080

main62520-11081-C6iGWZ100,URZ100..ARL,GCC,GEN202205-202211

BLACK,TRIM2#

sub62520-11080

main62520-11081-C8iGWZ100..CHI202205-202211

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK/RED,TRIM3#

sub62520-11080

main62520-11081-C8iGWZ100..CHI202205-202211

BLACK/RED,TRIM3#

sub62520-11080

main62520-11081-C9iGWZ100,URZ100..ARL,GCC,GEN202205-202211

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK/ORANGE,TRIM42

sub62520-11080

main62520-11081-C9iGWZ100,URZ100..ARL,GCC,GEN202205-202211

BLACK/ORANGE,TRIM42

sub62520-11080

main62520-11081-E0iGWZ100,URZ100..ARL,GCC,GEN202205-202211

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHER/LT.OCHRE,TRIM40

sub62520-11080

main62520-11081-E0iGWZ100..CHI202205-202211

OCHER/LT.OCHRE,TRIM40

sub62520-11080

62566CCLAMP, COWL SIDE TRIM

main62566-30010iGWZ100,URZ100201703

62566DCLAMP, FRONT DOOR OPENING TRIM COVER

main62566-30010iGWZ100,URZ100201703

67913PLATE, FRONT DOOR SCUFF, RH

main67910-11010-C4iGWZ100,URZ100201703

BLACK,TRIM2#,3#

main67910-11010-C5iGWZ100,URZ100202004

BLACK/ORANGE,TRIM42

main67910-11010-E3iGWZ100,URZ100201703-202004

OCHRE,TRIM4#

main67910-11010-E3iGWZ100,URZ100201703-202004

"S PACKAGE"&SCUFF PLATE-CFRP,OCHRE,TRIM4#

main67910-11010-E3iGWZ100,URZ100201703-202004

PERSONAL PACKAGE&SCUFF PLATE-CFRP,OCHRE,TRIM4#

main67910-11010-E3iGWZ100,URZ100202004

OCHRE,TRIM40

main67910-11010-J3iGWZ100,URZ100201703-202004

"S PACKAGE"&SCUFF PLATE-CFRP,BLUE,TRIM8#

main67910-11010-J3iGWZ100,URZ100201703-202004

BLUE,TRIM8#

main67910-11010-J3iGWZ100,URZ100201703-202004

PERSONAL PACKAGE&SCUFF PLATE-CFRP,BLUE,TRIM8#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iGWZ100,URZ100201703

67914PLATE, FRONT DOOR SCUFF, LH

main67920-11010-C4iGWZ100,URZ100201703

BLACK,TRIM2#,3#

main67920-11010-C5iGWZ100,URZ100202004

BLACK/ORANGE,TRIM42

main67920-11010-E3iGWZ100,URZ100..ARL,GCC,GEN201703-202004

PERSONAL PACKAGE&SCUFF PLATE-CFRP,OCHRE,TRIM4#

main67920-11010-E3iGWZ100,URZ100202004

OCHRE,TRIM40

main67920-11010-E3iGWZ100,URZ100201703-202004

OCHRE,TRIM4#

main67920-11010-E3iGWZ100,URZ100201703-202004

"S PACKAGE"&SCUFF PLATE-CFRP,OCHRE,TRIM4#

main67920-11010-J3iGWZ100,URZ100201703-202004

PERSONAL PACKAGE&SCUFF PLATE-CFRP,BLUE,TRIM8#

main67920-11010-J3iGWZ100,URZ100201703-202004

BLUE,TRIM8#

main67920-11010-J3iGWZ100,URZ100201703-202004

"S PACKAGE"&SCUFF PLATE-CFRP,BLUE,TRIM8#

8602

9018904022

main90189-04022

9046705171

main90467-05171

9046709206

main90467-09206

9046709232

main90467-09232

9046709240

main90467-09240

9046710188

main90467-10188

9046710216

main90467-10216

9046718017

main90467-18017

9356054014

main93560-54014

47 parts on this diagram · 1 diagram in section
