52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-11010i201703

main52023-11020i201703

main52023-11040i202005-202111

REAR DIFFERENTIAL-FD23AT 2.937 LSD

main52023-11050i202004-202111

REAR DIFFERENTIAL-FD23AT 2.937 LSD

52106CEXTENSION SUB-ASSY, REAR BUMPER, RH

main52106-11020i201703

52107CEXTENSION SUB-ASSY, REAR BUMPER, LH

main52107-11020i201703

52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER

main52108-11010i201703-202110

main52108-11011i202111

NO PAINT REQ.

main52108-11020i201712-202110

main52108-11021i202111

NO PAINT REQ.

52151GEXTENSION, REAR BUMPER

main52151-11040i201703

main52151-11050i201703

BRUNEI SPEC; HONGKONG SPEC; INDONESIA SPEC; MALAYSIA SPEC; SINGAPORE SPEC; THAILAND SPEC

52152BEXTENSION, REAR BUMPER, RH

main52152-11030i201703

main52152-11040i201703

BRUNEI SPEC; HONGKONG SPEC; INDONESIA SPEC; MALAYSIA SPEC; SINGAPORE SPEC; THAILAND SPEC

52153BEXTENSION, REAR BUMPER, LH

main52153-11030i201703

main52153-11040i201703

BRUNEI SPEC; HONGKONG SPEC; INDONESIA SPEC; MALAYSIA SPEC; SINGAPORE SPEC; THAILAND SPEC

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-11010i201703

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-11010i201703

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-11010i201703

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-11010i201703

52159COVER, REAR BUMPER

main52159-11904i201703-202004

PAINT REQ.

main52159-11906i201703-202004

PAINT REQ.

main52159-11908i201712-202004

PAINT REQ.

main52159-11917i202004

PAINT REQ.

main52159-11918i202004

PAINT REQ.

main52159-11919i202004

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-11900i201703-201908

main52161-11901i201908

52161BPIECE, REAR BUMPER

main52161-16010×4i201703

52162APIECE, REAR BUMPER, LH

main52162-11900i201703-201908

main52162-11901i201908

52162DPIECE, REAR BUMPER

main52161-16010×4i201703

52165DEXTENSION, REAR BUMPER CORNER, RH

main52165-11901i201703

52166BEXTENSION, REAR BUMPER CORNER, LH

main52166-11901i201703

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-11010i201703

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52168-11010i201703

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040i201703

52197FBRACKET, REAR BUMPER SEAL

main52197-62020×2i201703

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020i201703

52453GUARD, REAR BUMPER, CENTER

main52453-11030i201703

main52453-11040i201712

main52453-11051i201703

52461PAD, REAR BUMPER, CENTER

main52461-11010×2i201703

52461KPAD, REAR BUMPER, NO.1

main52461-11030×2i201703

52461LPAD, REAR BUMPER, NO.2

main52461-11040×2i201703

52461MPAD, REAR BUMPER, NO.3

main52462-53030×2i201703

52465AINSERT, REAR BUMPER PAD

main52465-11010×2i201703

52535ERETAINER, REAR BUMPER SIDE

main52535-28020i201703

52615ABSORBER, REAR BUMPER ENERGY

main52615-11010i201703

main52615-11020i201703

52681AEXTENSION, REAR BUMPER ARM, RH

main52681-11030i201908

52682AEXTENSION, REAR BUMPER ARM, LH

main52682-11010i201908

75867HCLIP, ROCKER PANEL MOULDING

main75867-33050×2i201703

75867JCLIP, ROCKER PANEL MOULDING, NO.2

main75867-33050×2i201703

75895NTAPE, MOULDING, NO.1

main75895-28010×2i201703-201704

main75895-30050×2i201704-201808

main75895-53010×2i201809

8112BACK UP LAMP

→ Go to FIG 81-12

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8202WIRING & CLAMP

→ Go to FIG 82-02

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-78020×2i201703

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-78020×2i201703

9011908C56

main90119-08C56

9011908D16

main90119-08D16

9011908D55

main90119-08D55

9015960431

main90159-60431

9015960477

main90159-60477

9015960602

main90159-60602

9015960621

main90159-60621

9016740057

main90167-40057

9017906349

main90179-06349

9018906018

main90189-06018

9018906211

main90189-06211

9018906228

main90189-06228

9018906235

main90189-06235

9018906238

main90189-06238

9046708225

main90467-08225

9046709237

main90467-09237

9048010024

main90480-10024

9056110021

main90561-10021

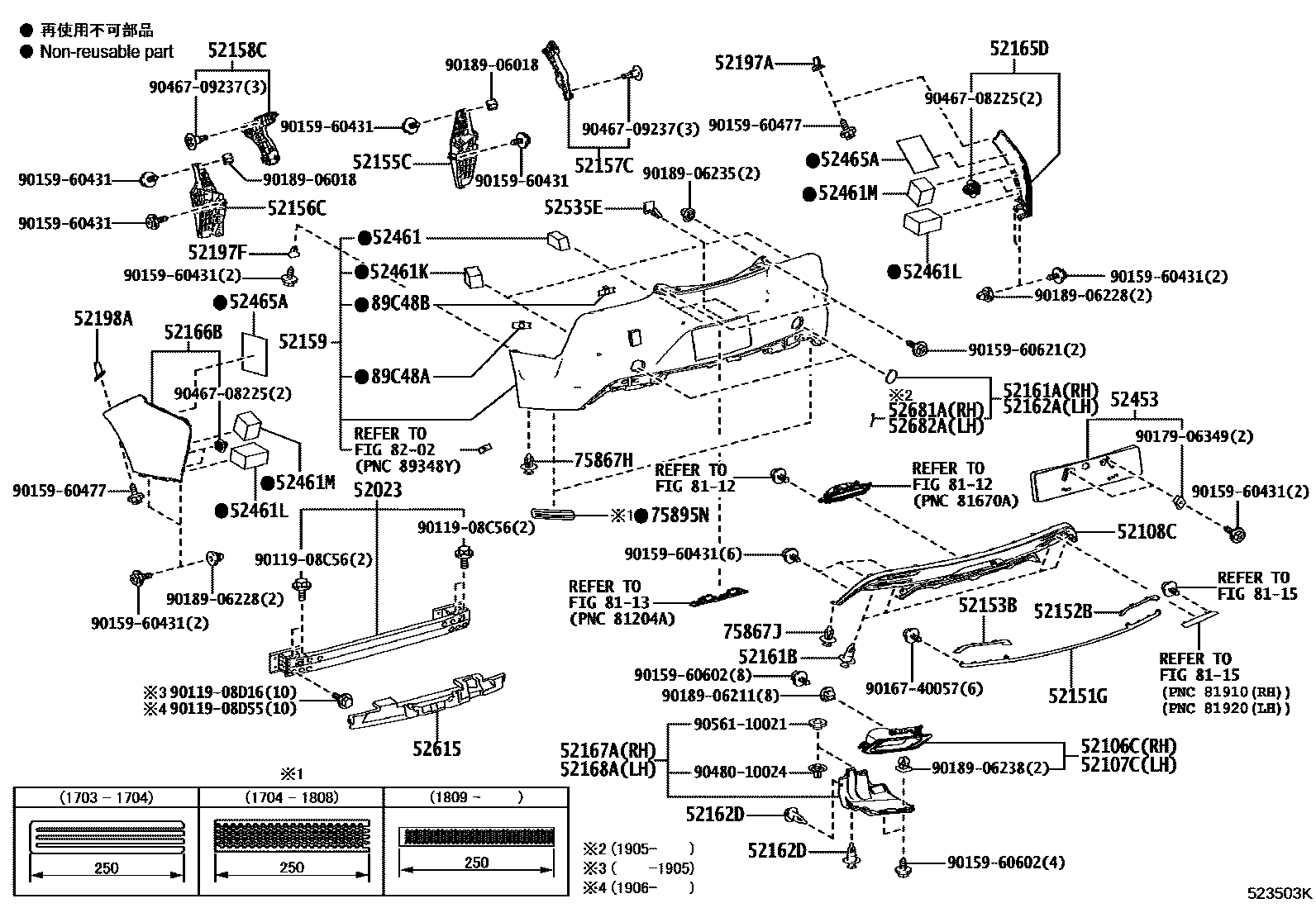

REAR BUMPER & BUMPER STAY
