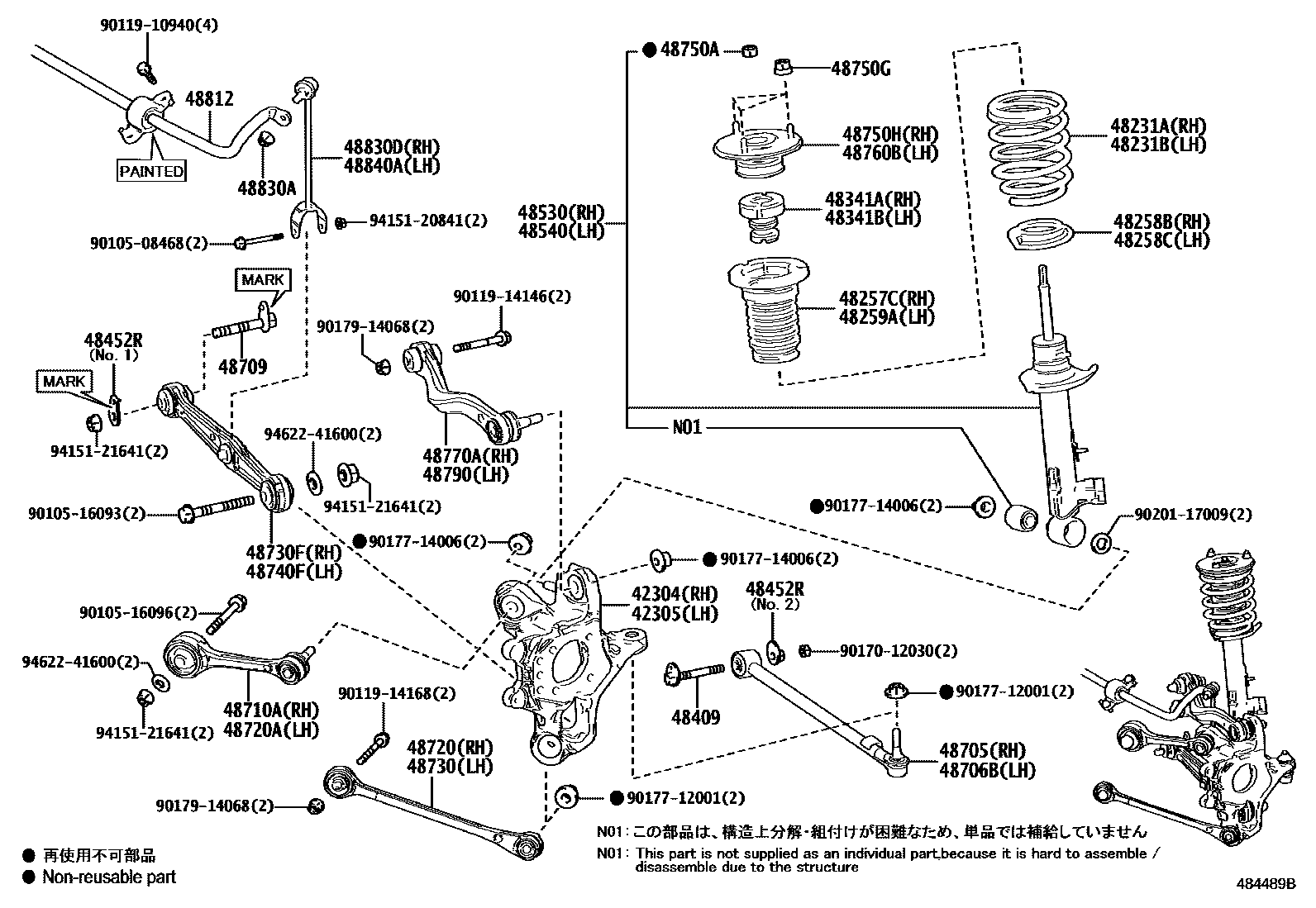

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231ASPRING, COIL, REAR RH
REFER TO PNC 48530
REFER TO PNC 48530
REFER TO PNC 48530
REFER TO PNC 48530
48231BSPRING, COIL, REAR LH
REFER TO PNC 48540
REFER TO PNC 48540
REFER TO PNC 48540
REFER TO PNC 48540
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
REFER TO PNC 48530
REFER TO PNC 48530
48341BBUMPER, REAR SPRING, NO.1 LH
REFER TO PNC 48540
REFER TO PNC 48540
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
MARK A****,NO.1
MARK B,NO.1
MARK C,NO.1
NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-11010
MARK 48530-11011
MARK 48530-11030
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-11010
MARK 48540-11011
MARK 48540-11030
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM
MARK A
MARK B
MARK C
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720ARM ASSY, LOWER CONTROL, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730ARM ASSY, LOWER CONTROL, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
PAINTED=YELLOW GREEN
PAINTED=LIGHT BLUE
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010508468
main90105-08468
9010516093
main90105-16093
9010516096
main90105-16096
9011910940
main90119-10940
9011914146
main90119-14146
9011914168
main90119-14168
9017012030
main90170-12030
9017712001
main90177-12001
9017714006
main90177-14006
9017914068
main90179-14068
9020117009
main90201-17009
9415120841
main94151-20841
9415121641
main94151-21641
9462241600
main94622-41600
47 parts on this diagram · 4 diagrams in section
