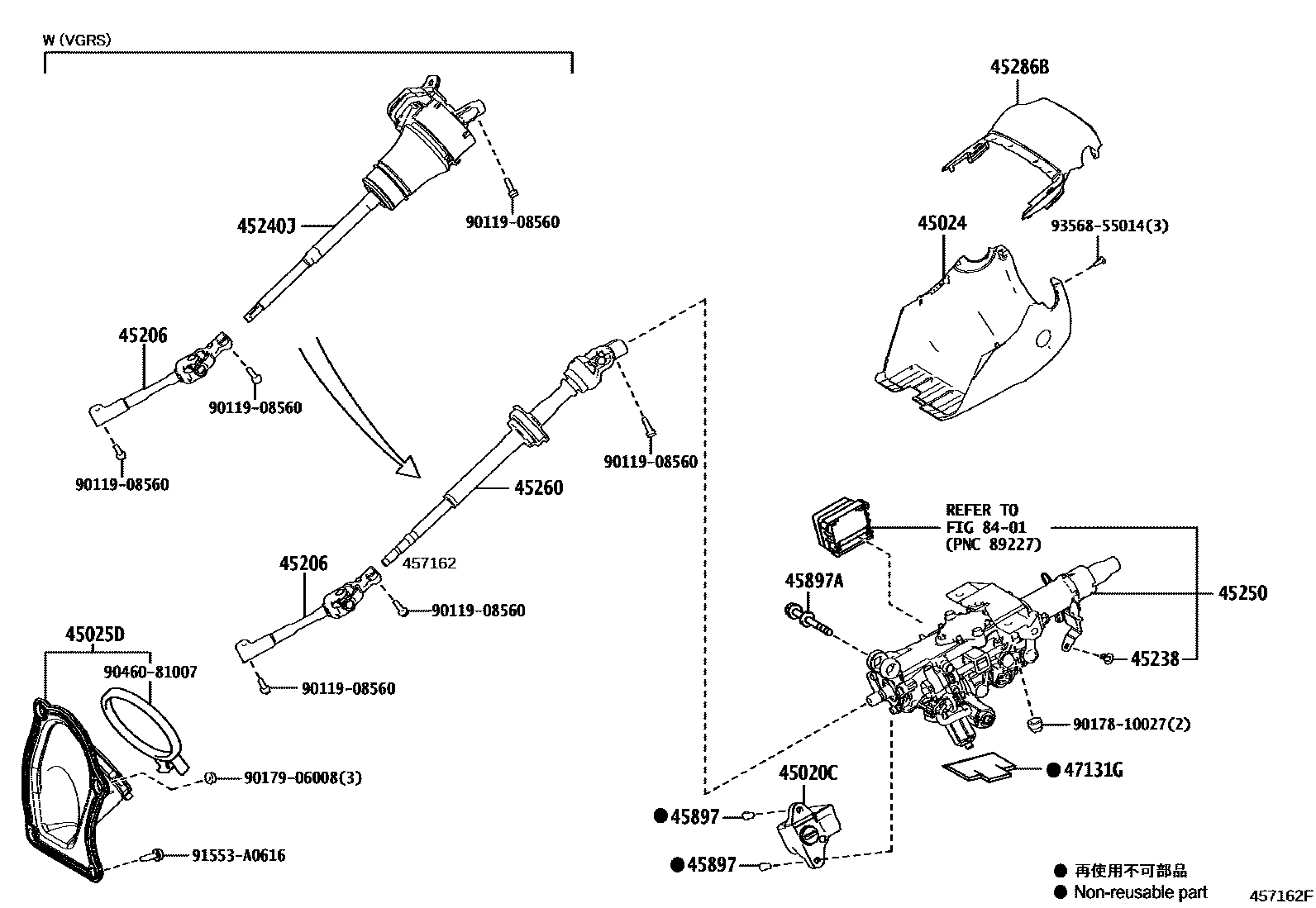

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM2#,3#,4#
BLUE,TRIM8#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45240JACTUATOR ASSY, STEERING
"S PACKAGE"
FOUR-WHEEL STEERING-WITH
"S PACKAGE"
FOUR-WHEEL STEERING-WITH
45250COLUMN ASSY, STEERING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,3#,4#
BLUE,TRIM8#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
47131GCUSHION
8401SWITCH & RELAY & COMPUTER
9011908560
main90119-08560
9017810027
main90178-10027
9017906008
main90179-06008
9046081007
main90460-81007
91553A0616
main91553-A0616
9356855014
main93568-55014
19 parts on this diagram · 2 diagrams in section
