1104CYLINDER HEAD

→ Go to FIG 11-04

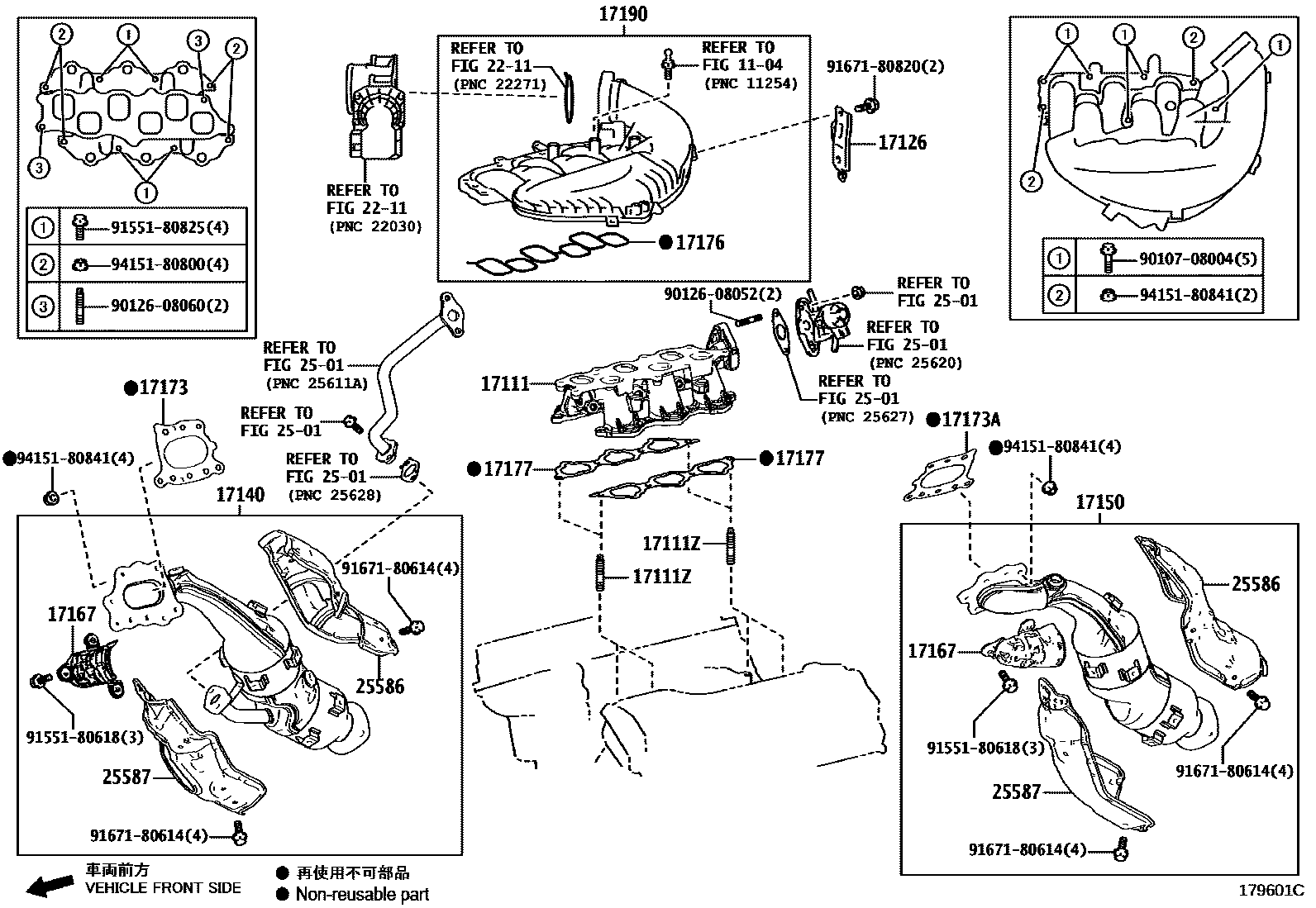

17111MANIFOLD, INTAKE

main17120-31080i201703

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i201703

main90126-08052×4i201703

17126STAY, SURGE TANK, NO.2

main17126-31070i201703

17140MANIFOLD ASSY, EXHAUST, RH

main17140-31A80supersedes 17140-31C50i201703-202312

*114=*477

17150MANIFOLD ASSY, EXHAUST, LH

main17150-31A80supersedes 17150-31C50i201703-202004

*114=*478

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-31120i201703

RH BANK

main17167-31160i201703

LH BANK

main17167-38150i201703

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31070i201703

main17173-38050i201703

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31070i201703

main17173-38050i201703

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31150i201703

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31070×2i201703

main17177-38030×2i201703

17190TANK ASSY, INTAKE AIR SURGE

main17190-31300i201703-201706

main17190-31301i201707

main17190-38030i201703

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-31060supersedes 25586-31130i201703-202004

RH BANK

main25586-31080i201703

LH BANK

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-31020i201703

RH BANK

main25587-31030i201703

LH BANK

9010708004

main90107-08004

9012608052

main90126-08052

9012608060

main90126-08060

9155180618

main91551-80618

9155180825

main91551-80825

9167180614

main91671-80614

9167180820

main91671-80820

9415180800

main94151-80800

9415180841

main94151-80841
