ENGINE OVERHAUL GASKET KIT

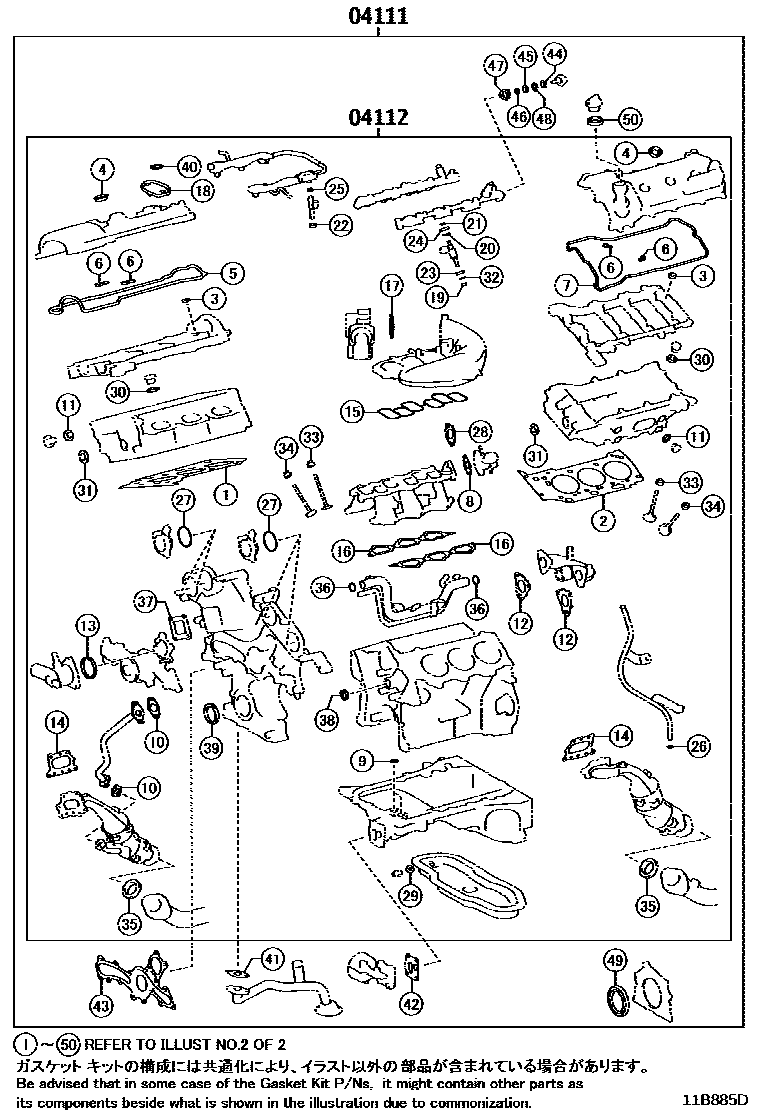

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31C90i201703-201706
main04111-31C91i201706-202107
sub04111-31C92
main04111-31C92i202107-202111
sub04111-31C93
main04111-31C93i202112
main04111-31D00i201703-201705
sub04111-31D01
main04111-31D01i201705-201806
sub04111-31D02
main04111-31D02i201806-202107
sub04111-31D03
main04111-31D03i202107-202111
sub04111-31D04
main04111-31D04i202112
main04111-38310i201703
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31A30i201703-201706
sub04112-31A41
main04112-31A40i201703-201705
sub04112-31A41
main04112-31A41i201705-202111
sub04112-31A42
main04112-31A42i202112
main04112-38290i201703

2 parts on this diagram · 6 diagrams in section
