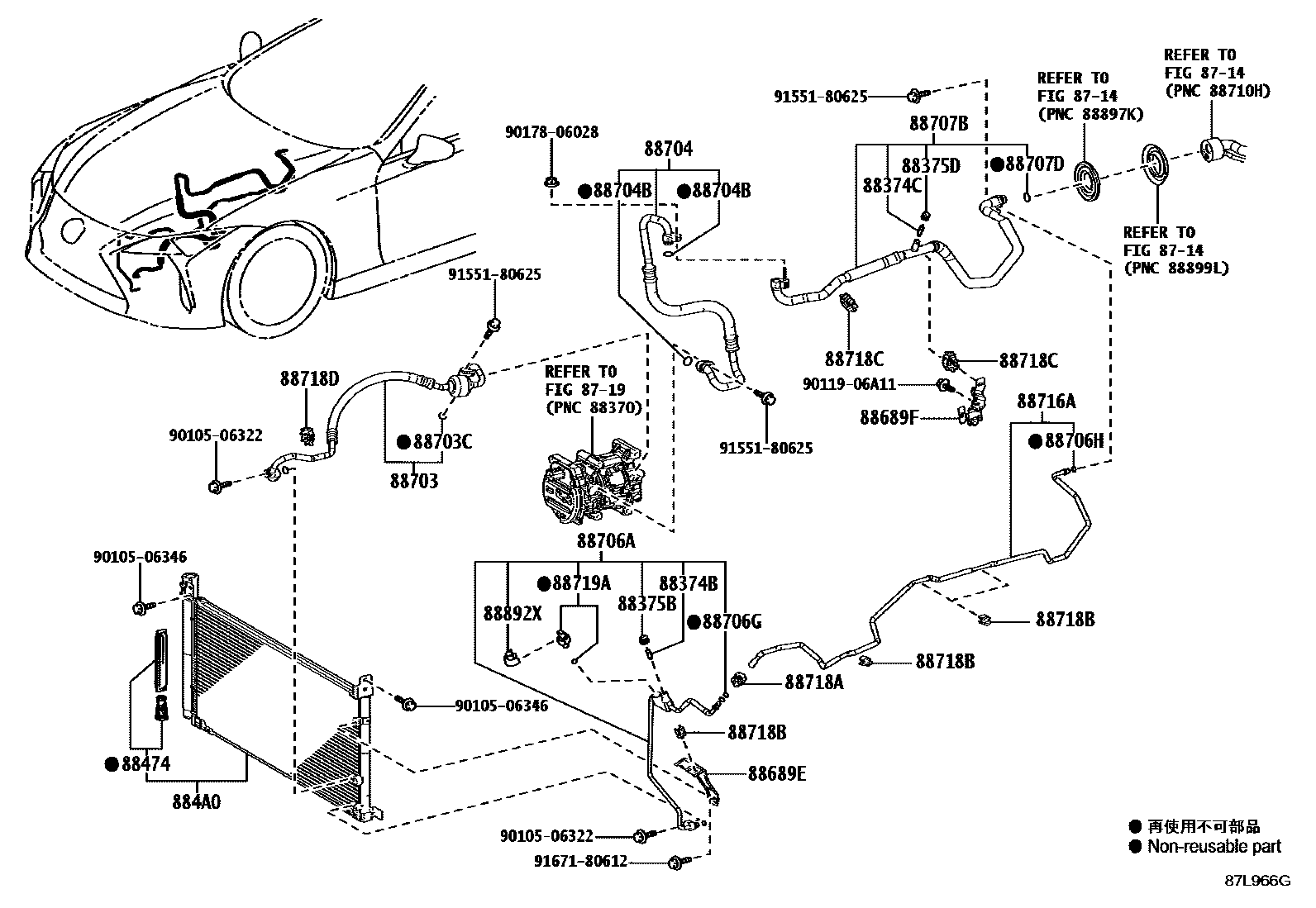

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88689EBRACKET, COOLER, NO.1
88689FBRACKET, COOLER, NO.2
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88706HRING, O, NO.2(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88707BTUBE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88716APIPE, COOLER REFRIGERANT LIQUID, A
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88892XCOVER, COOLER, NO.2
9010506322
main90105-06322
9010506346
main90105-06346
9011906A11
main90119-06A11
9017806028
main90178-06028
9155180625
main91551-80625
9167180612
main91671-80612
32 parts on this diagram · 4 diagrams in section
