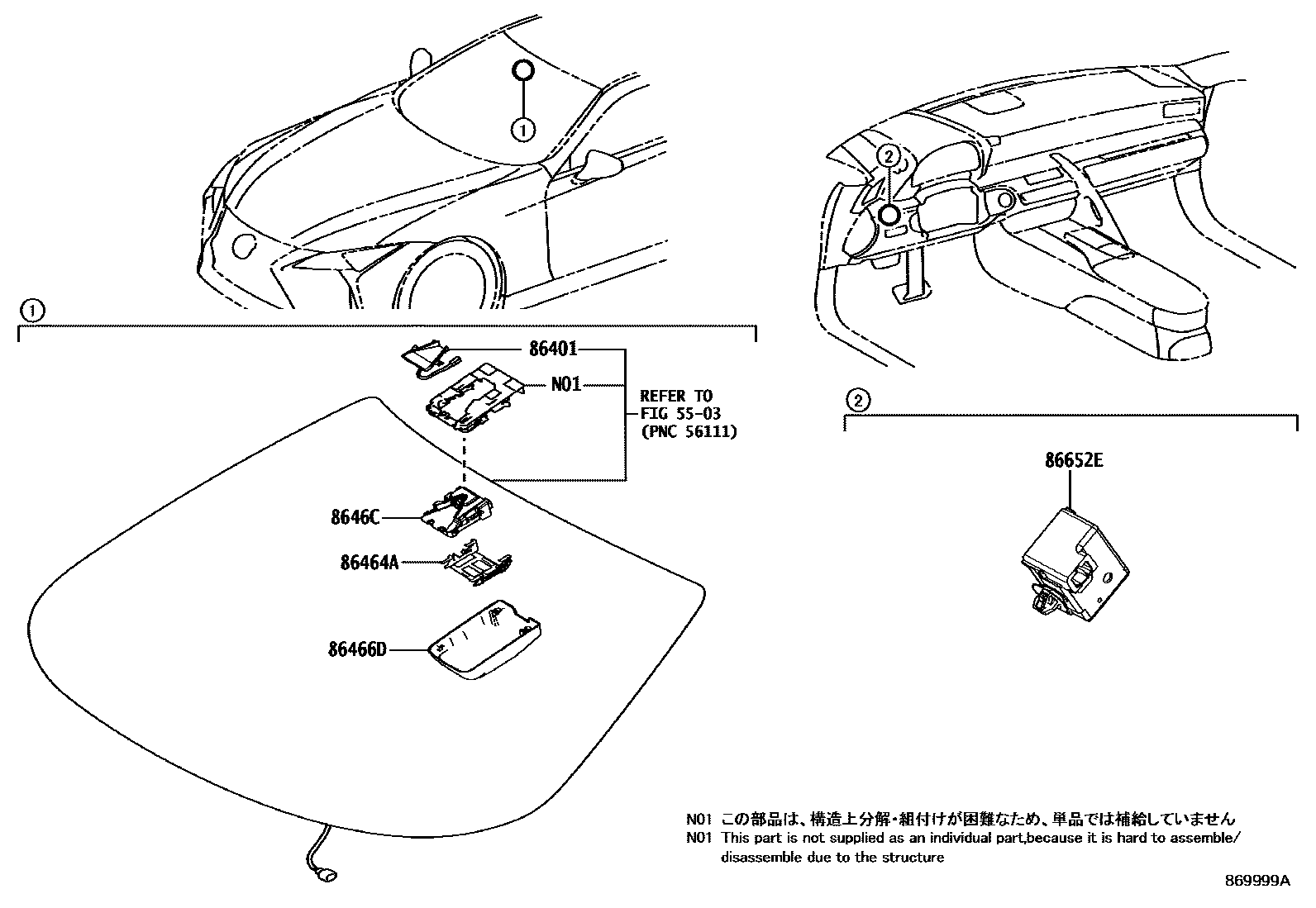

PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-11020iGWZ100,URZ100..EUR202305-202403

86464ALATCH, FORWARD RECOGNITION

main86464-26010iGWZ100,URZ100..EUR202305-202403

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-11010iGWZ100,URZ100..EUR202305-202403

8646CCAMERA, FORWARD RECOGNITION

main8646C-11030iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202501

main8646C-11031iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202501

main8646C-11040iURZ100..CONV..(ARL,GCC,GEN)202305-202501

main8646C-11041iURZ100..CONV..(ARL,GCC,GEN)202501

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iGWZ100,URZ100..EUR202305-202403

6 parts on this diagram · 2 diagrams in section
