HEV INVERTER

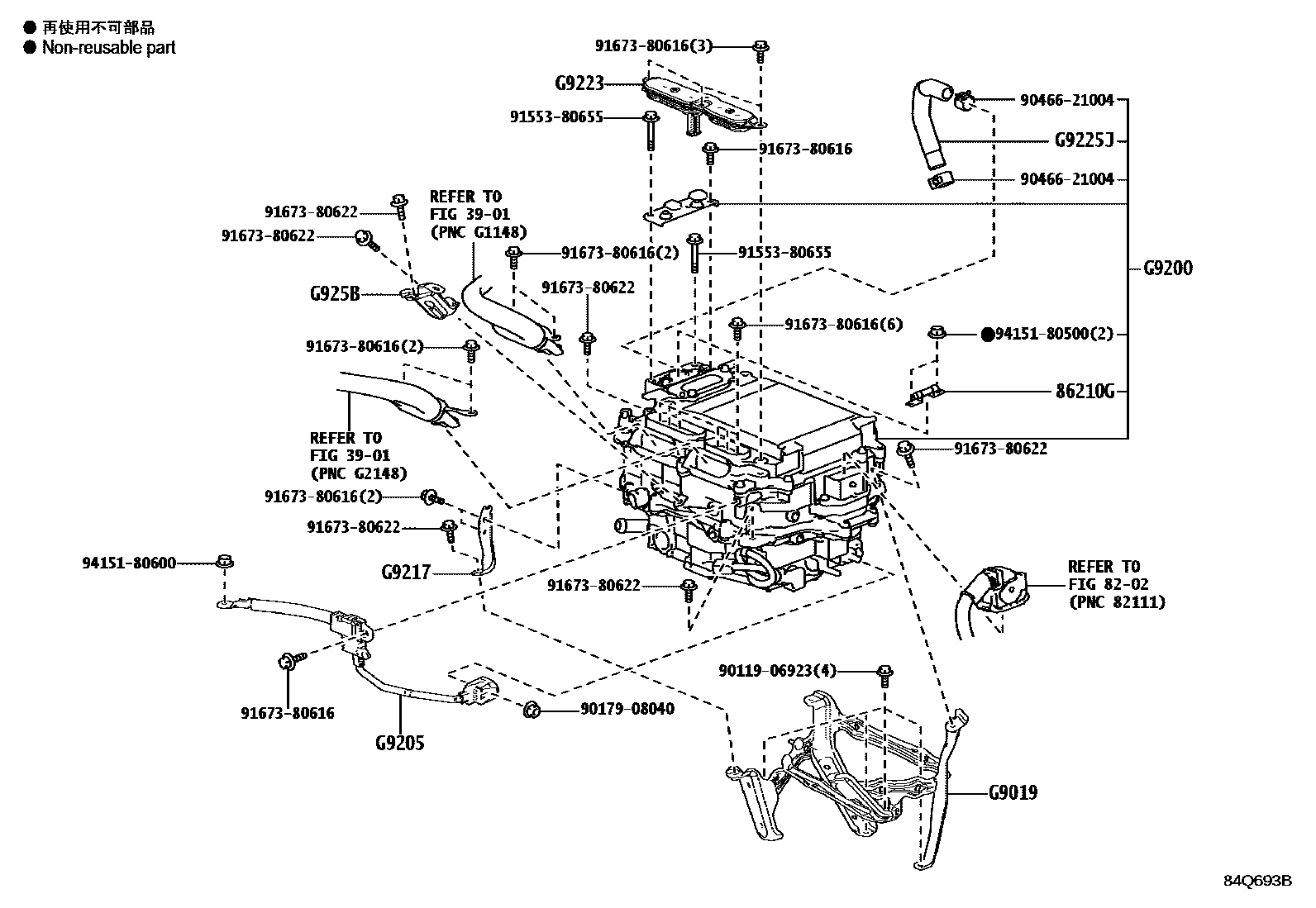

Parts diagram

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

86210GFUSE, HIGH VOLTAGE

main90982-11050i202305-202403

G9019BRACKET SUB-ASSY, INVERTER TRAY

mainG901911030i202305-202403

mainG901911040i202305-202403

G9200INVERTER ASSY, W/CONVERTER

mainG92A050012i202305-202403

mainG92A050022i202305-202403

G9205PLATE SUB-ASSY, INVERTER BUS-BAR

mainG920511010i202305-202403

mainG920511020i202305-202403

G9217BRACKET, INVERTER, NO.4

mainG921730030i202305-202403

mainG921730040i202305-202403

G9223COVER, INVERTER TERMINAL

mainG922311010i202305-202403

mainG922311020i202305-202403

G9225JHOSE, INVERTER COOLING, NO.1

mainG922530210i202305-202403

G925BBRACKET, INVERTER, NO.6

mainG925B11010i202305-202403

mainG925B11020i202305-202403

9011906923

main90119-06923

9017908040

main90179-08040

9046621004

main90466-21004

9155380655

main91553-80655

9167380616

main91673-80616

9167380622

main91673-80622

9415180500

main94151-80500

9415180600

main94151-80600

18 parts on this diagram · 2 diagrams in section
