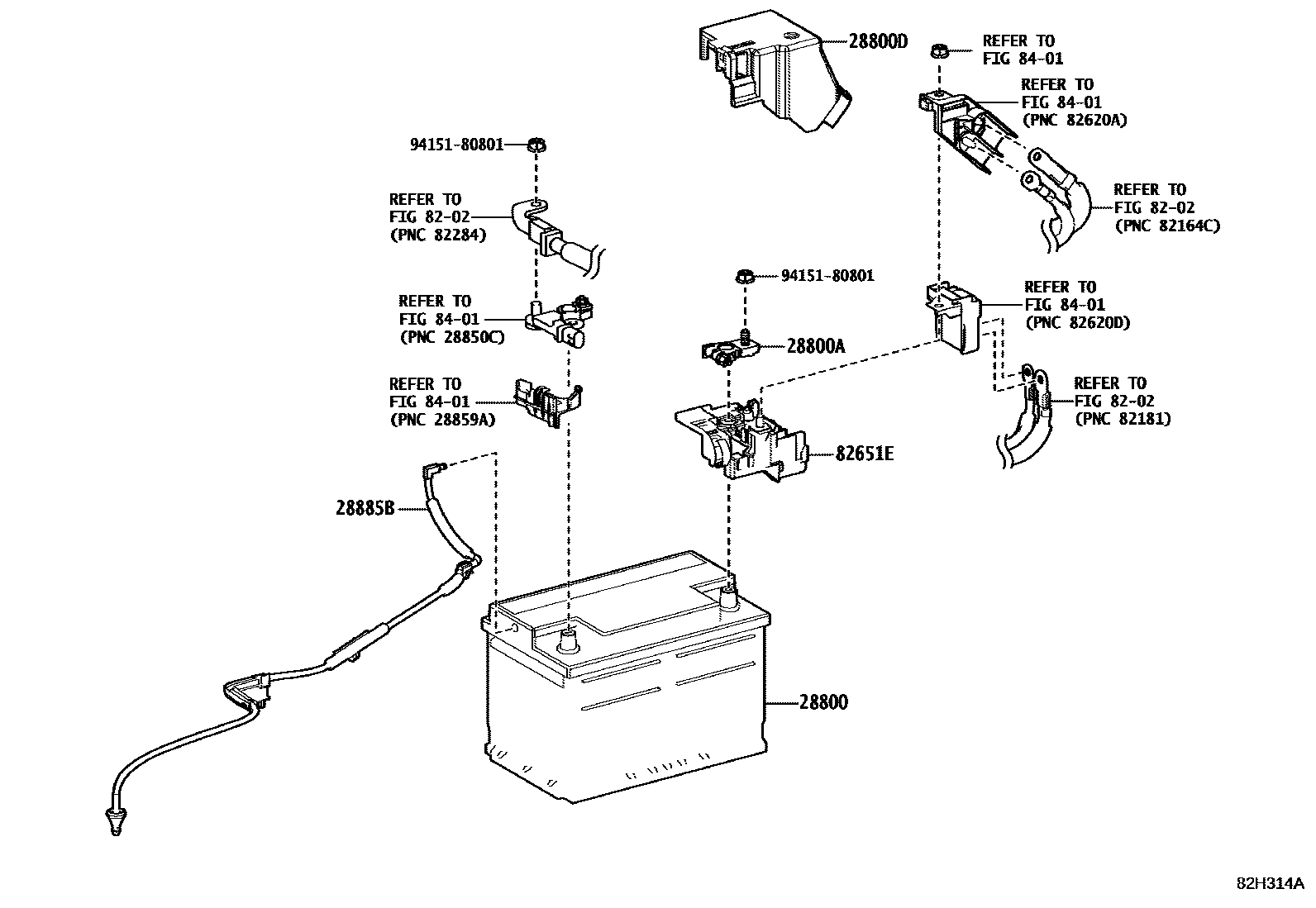

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-31452i8GRFXS..GWZ100202305-202403

LN3

main28800-31453i8GRFXS..GWZ100..ARL,CHI,GCC,GEN202404

LN3

main28800-38192i2URGSE..URZ100202305-202403

LN4

main28800-38193i2URGSE..URZ100..ARL,GCC,GEN202404

LN4

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i8GRFXS,2URGSE..GWZ100,URZ100..EUR202305-202403

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50730i8GRFXS,2URGSE..GWZ100,URZ100..EUR202305-202403

28885BHOSE, BATTERY

main28885-38020i8GRFXS,2URGSE..GWZ100,URZ100..EUR202305-202403

8202

82651EBLOCK, TERMINAL

main82651-50010iGWZ100,URZ100..EUR202305-202403

8401

9415180801

main94151-80801

8 parts on this diagram · 5 diagrams in section
