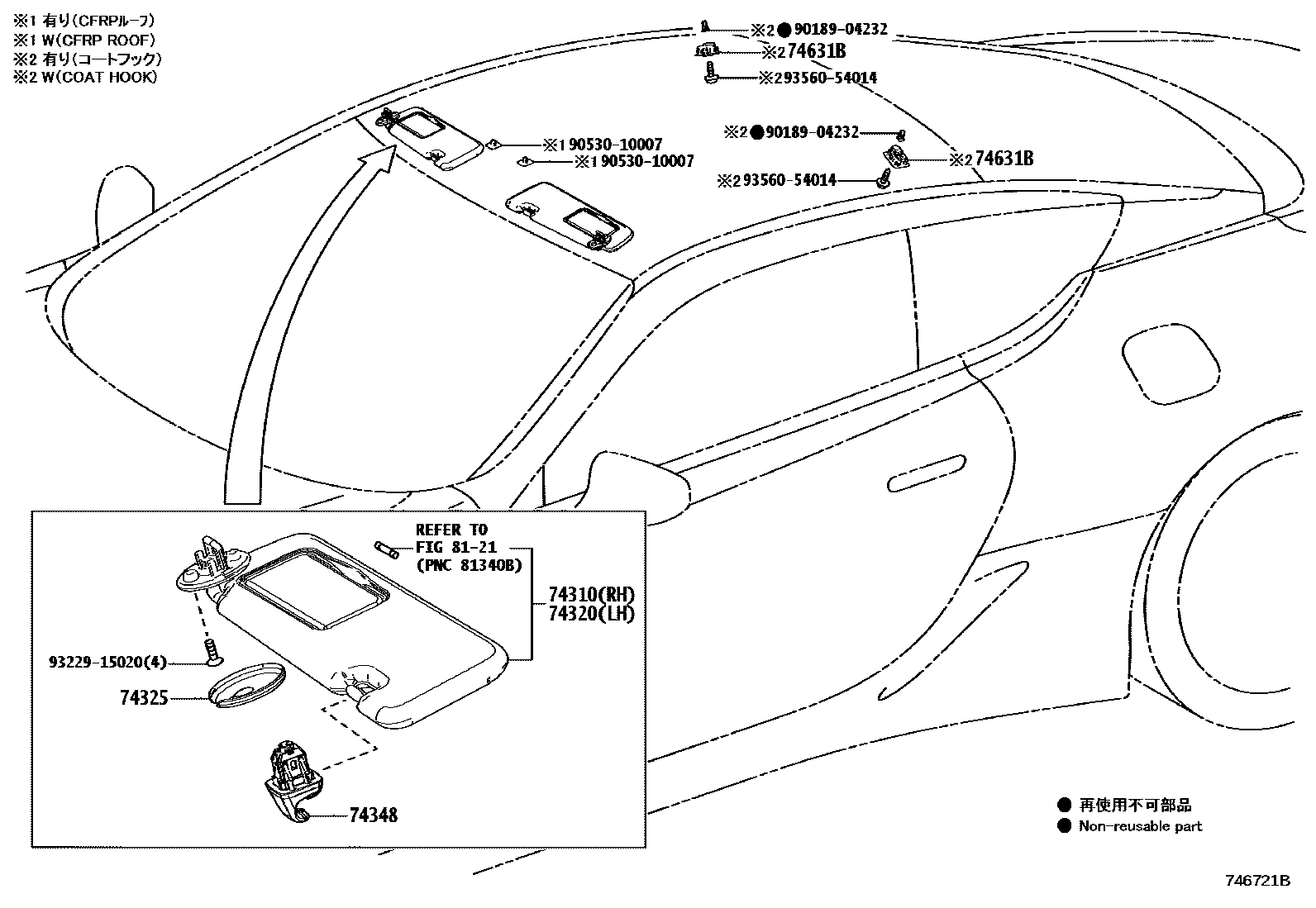

ARMREST & VISOR
74310VISOR ASSY, RH
WHITE,TRIM0#
WHITE,TRIM0#
WHITE,TRIM0#
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#
ARGENTINA SPEC,WHITE,TRIM0#; PHILIPPINE SPEC,WHITE,TRIM0#; WHITE,TRIM0#
ARGENTINA SPEC,BLACK,TRIM2#,3#; BLACK,TRIM2#,3#; PHILIPPINE SPEC,BLACK,TRIM2#,3#
OCHRE,TRIM4#
ARGENTINA SPEC,BLUE,TRIM8#; BLUE,TRIM8#; GUATEMALA SPEC,BLUE,TRIM8#; MIDDLE & SOUTH AMERICA SPEC,BLUE,TRIM8#; PHILIPPINE SPEC,BLUE,TRIM8#
main74310-11040-C9supersedes 74310-11030-20iGWZ100,URZ100..CP..GCC; GWZ100..GEN; URZ100..CP..GEN202305
ARGENTINA SPEC,BLACK,TRIM2#,3#; PHILIPPINE SPEC,BLACK,TRIM2#,3#; ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#
ARGENTINA SPEC,OCHRE,TRIM4#; PHILIPPINE SPEC,OCHRE,TRIM4#; ROOF HEADLINING-ALCANTARA,OCHRE,TRIM4#
GUATEMALA SPEC,BLUE,TRIM8#; MIDDLE & SOUTH AMERICA SPEC,BLUE,TRIM8#; PHILIPPINE SPEC,BLUE,TRIM8#; ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; VIETNAM SPEC,BLUE,TRIM8#
ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#
ROOF HEADLINING-ALCANTARA,OCHRE,TRIM4#
ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#
ROOF HEADLINING-ALCANTARA,OCHRE,TRIM4#
ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
ROOF HEADLINING-BELLEZA,WHITE,TRIM0#
74320VISOR ASSY, LH
WHITE,TRIM0#
main74320-11041-C9supersedes 74320-11031-20iGWZ100,URZ100..CP..(CHI,GCC); GWZ100,URZ100..CP..GEN202305
BLACK,TRIM2#,3#; ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#
main74320-11041-E8supersedes 74320-11031-E8iGWZ100,URZ100..CP..(CHI,GCC); GWZ100,URZ100..CP..GEN202305
OCHER,TRIM4#; ROOF HEADLINING-ALCANTARA,OCHER,TRIM4#
BLUE,TRIM8#; ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
WHITE,TRIM0#
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#
ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#
ROOF HEADLINING-ALCANTARA,OCHER,TRIM4#
ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
74325COVER, VISOR BRACKET
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM8#
L WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#; ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
74348HOLDER, VISOR
main74348-33040-02×2iGWZ100,URZ100..CP..(ARL,CHI,GCC); GWZ100,URZ100..CP..GEN; GWZ100..GEN; URZ100..CP..GEN202305
ARGENTINA SPEC&ROOF HEADLINING-BELLEZA,L WHITE,TRIM0#; L WHITE,TRIM0#; PHILIPPINE SPEC&ROOF HEADLINING-BELLEZA,L WHITE,TRIM0#; ROOF HEADLINING-BELLEZA,L WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#; ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
L WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM8#
74631BHOOK, COAT
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
main74631-11010-J0×2iGWZ100..RHD..EUR; URZ100..CP..EUR; URZ100..CP..EUR;GWZ100..RHD..EUR; URZ100..LHD..CP..EUR202309-202403
"S+ PACKAGE"&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; ARMENIA SPEC& "S+ PACKAGE"&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; ARMENIA SPEC& IE 24MY&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; ARMENIA SPEC&PERSONAL PACKAGE&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; BELARUS SPEC& "S+ PACKAGE"&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; BELARUS SPEC& IE 24MY&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; BELARUS SPEC&PERSONAL PACKAGE&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; IE 24MY&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; INDIA SPEC& IE 24MY&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; KAZAKHSTAN SPEC& "S+ PACKAGE"&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; KAZAKHSTAN SPEC& IE 24MY&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; KAZAKHSTAN SPEC&PERSONAL PACKAGE&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; PERSONAL PACKAGE&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; RUSSIA SPEC& "S+ PACKAGE"&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; RUSSIA SPEC& IE 24MY&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#; RUSSIA SPEC&PERSONAL PACKAGE&ROOF-CFRP ROOF&ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
8121INTERIOR LAMP
9018904232
main90189-04232
9053010007
main90530-10007
9322915020
main93229-15020
9356054014
main93560-54014
10 parts on this diagram · 1 diagram in section
