EPC Data

FRONT SEAT & SEAT TRACK

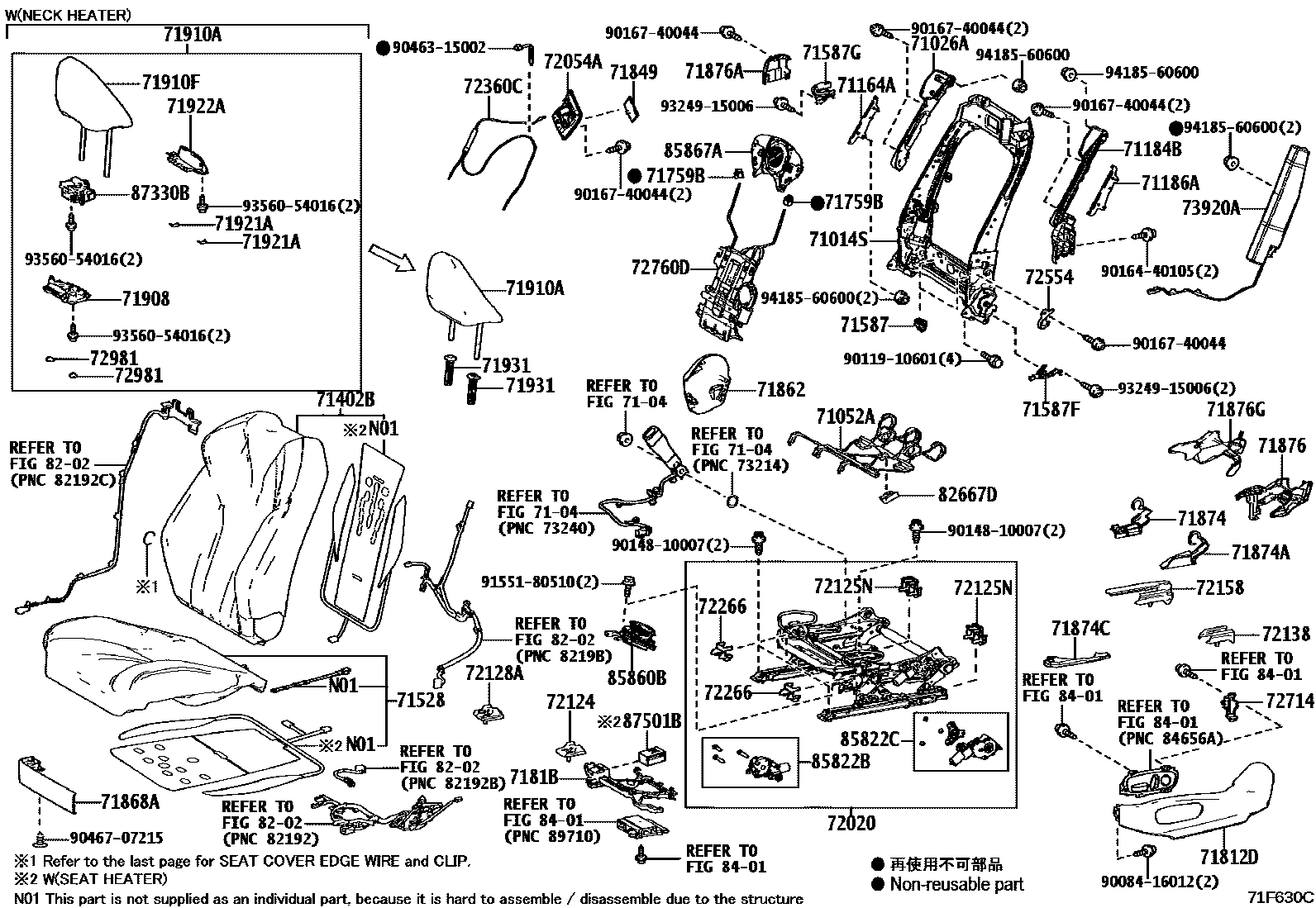

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-11011i202305
main71014-11030i202305
main71014-11021supersedes 71014-11011i202305
"S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)
71026ASUPPORT, FRONT SEATBACK, LH
main71026-11010i202305
main71026-11020supersedes 71026-11010i202305-202403
"S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-11010i202305
71164ABRACKET, FRONT SEATBACK SUPPORT, LH
main71163-11010i202305
71184BSUPPORT, FRONT SEATBACK, LH
main71025-11030supersedes 71183-11010i202305
"S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)
main71183-11010i202305
71186BRACKET, FRONT SEAT SIDE SUPPORT, RH
main71186-11010i202305
71186ABRACKET, FRONT SEAT SIDE SUPPORT, LH
main71186-11020i202305
71402BBACK SUB-ASSY, FRONT SEAT, LH
main71402-11030-A0i202305
WHITE,TRIM0#
main71402-11030-C5i202305
BLACK,TRIM2#
main71402-11030-D1i202305
DK.ROSE,TRIM3#
main71402-11030-E1i202305
LT.OCHRE,TRIM4#
main71402-11040-A0i202305
WHITE,TRIM0#
main71402-11050-C9supersedes 71402-11010-C4i202305-202403
IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71402-11050-D9i202305
PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),DK.ROSE,TRIM3#
main71402-11050-E6supersedes 71402-11010-E1i202305
PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),LT.OCHRE,TRIM4#
main71402-11050-J0i202309-202409
"S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#
main71402-11060-C9supersedes 71402-11040-C5i202305
"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#
main71402-11060-D9supersedes 71402-11040-D1i202305
"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71402-11060-E6supersedes 71402-11040-E1i202305
PERSONAL PACKAGE&FRONT SEAT-SPORT TYPE,LT.OCHRE,TRIM4#
main71402-11060-J0i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71402-11140-A2i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main71402-11140-C1supersedes 71402-11120-C1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71402-11140-D3i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71402-11140-E1supersedes 71402-11120-E1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM4#
main71402-11140-J0i202309-202409
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
main71402-11150-A2i202305-202508
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main71402-11150-C1supersedes 71402-11130-C1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71402-11150-D3i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71402-11150-E1supersedes 71402-11130-E1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),LT.OCHRE,TRIM4#
main71402-11150-J0i202309-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
main71402-11180-A0i202305
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
main71402-11190-A0i202305
"S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
71528PAD, FRONT SEAT CUSHION W/COVER, LH
main71102-11080-A1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main71102-11080-C0supersedes 71102-11050-C0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71102-11080-D2i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71102-11080-E0supersedes 71102-11050-E0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM4#
main71102-11080-J0i202309-202409
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
main71102-11090-A1i202305-202508
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main71102-11090-C0supersedes 71102-11060-C0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71102-11090-D2i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71102-11090-E0supersedes 71102-11060-E0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),LT.OCHRE,TRIM4#
main71102-11090-J0i202309-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
main71102-11100-A1i202305-202508
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main71102-11100-C0supersedes 71102-11070-C0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71102-11100-D2i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71102-11100-E0supersedes 71102-11070-E0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),LT.OCHRE,TRIM4#
main71102-11100-J0i202309-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
main71102-11110-C1i202305
"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#
main71102-11110-D1i202305
"S+ PACKAGE"&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71102-11110-E0i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,OCHRE/CAMEL,TRIM4#
main71102-11110-J0i202309-202409
IE 24MY&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71102-11120-C1i202305
"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLACK/LT.GRAY,TRIM2#
main71102-11120-D1i202305
"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71102-11120-E0i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,OCHRE/CAMEL,TRIM4#
main71102-11120-J0i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71102-11130-C1i202305-202403
IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71102-11130-D1i202305
"S+ PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
main71102-11130-E0i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE/CAMEL,TRIM4#
main71102-11130-J0i202309-202409
"S PACKAGE"&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#
main71102-11140-A0i202305-202403
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main71102-11150-A0i202305-202508
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
main71102-11160-A0i202305-202508
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010×4i202305
71587FPROTECTOR, FRONT SEATBACK EDGE, OUTER(FOR LH SEAT)
main71587-11030i202305-202403
71587GPROTECTOR, FRONT SEATBACK EDGE, INNER(FOR LH SEAT)
main71587-11040i202305
71759BHOOK, FRONT SEATBACK
main71759-50040×4i202305-202403
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-11020-A2i202305
WHITE,TRIM0#
main71812-11020-C3i202305-202403
BLACK,TRIM2#,3#
main71812-11020-E3i202305-202403
OCHRE,TRIM4#
main71812-11020-J3i202309-202403
BLUE,TRIM8#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-11010i202305-202403
71849CAP, SEAT ADJUSTER COVER, LH
main71848-11010-A0i202305
WHITE,TRIM0#
main71848-11010-C1i202305-202403
BLACK,TRIM2#,30
main71848-11010-D2i202305
DK. ROSE,TRIM30
main71848-11010-E2i202305
LT.OCHRE,TRIM4#
main71848-11020-C0i202305-202403
BLACK,TRIM2#
main71848-11020-E1i202305-202403
OCHER,TRIM4#
main71848-11010-E1supersedes 71848-11010-E2i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,OCHRE,TRIM4#
main71848-11010-J0i202309-202409
IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#
main71848-11020-A1i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main71848-11020-J0i202309-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-11010-A1i202305-202403
WHITE,TRIM0#
main71862-11010-C1i202305-202403
BLACK,TRIM2#,3#
main71862-11010-E1i202305-202403
OCHRE,TRIM4#
main71862-11010-J0i202309-202409
BLUE,TRIM8#
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-11010-A1i202305
WHITE,TRIM0#
main71868-11010-C2i202305-202403
BLACK,TRIM2#,3#
main71868-11010-E3i202305
OCHRE,TRIM4#
main71868-11010-J0i202309-202409
BLUE,TRIM8#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-11010-C1i202305
BLACK
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47070i202305
71874CSHIELD, FRONT SEAT CUSHION, LOWER
main71874-47090i202305
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-11020-A1i202305
WHITE,TRIM0#
main71876-11020-C1i202305
BLACK,TRIM2#,3#
main71876-11020-E1i202305
OCHRE,TRIM4#
main71876-11020-J0i202309-202403
BLUE,TRIM8#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-11030i202305
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-11010-A1i202305-202403
WHITE,TRIM0#
main71876-11010-C1i202305-202403
BLACK,TRIM2#,3#
main71876-11010-E1i202305
OCHRE,TRIM4#
main71876-11010-J0i202309-202409
BLUE,TRIM8#
71908COVER SUB-ASSY, FRONT SEAT HEADREST
main71908-11010-A0×2i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),WHITE,TRIM0#
main71908-11010-C0×2i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLACK,TRIM2#
main71908-11010-D1×2i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),DK. ROSE,TRIM3#
main71908-11010-E0×2i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),LT.OCHRE,TRIM4#
main71908-11010-J0×2i202309-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLUE,TRIM8#
71910AHEADREST ASSY, FRONT SEAT
main71910-11030-A3×2i202305
WHITE/BLUE,TRIM0#
main71910-11040-A0×2i202305
"S PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
main71910-11040-C5×2supersedes 71910-11020-21i202305
"S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#
main71910-11040-D6×2supersedes 71910-11030-D1i202305
PERSONAL PACKAGE& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#
main71910-11040-E3×2supersedes 71910-11020-E5i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,OCHRE,TRIM4#
main71910-11040-J0×2i202309-202409
IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#
main71910-11070-A2×2supersedes 71910-11060-A1i202305
"S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,WHITE,TRIM0#
main71910-11070-C6×2supersedes 71910-11060-26i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,BLACK,TRIM2#
main71910-11070-D7×2supersedes 71910-11060-D0i202305
"S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,DK.ROSE,TRIM3#
main71910-11070-E3×2supersedes 71910-11060-E3i202305
"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,OCHER,TRIM4#
main71910-11070-J0×2i202305-202409
"S+ PACKAGE"&ROOF HEADLINING-ALCANTARA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main719A0-11010-A0i202305-202508
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),WHITE,TRIM0#,RH
main719A0-11010-C0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLACK,TRIM2#,RH
main719A0-11010-D1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),DK.ROSE,TRIM3#,RH
main719A0-11010-E0supersedes 719B0-11040-E0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),LT.OCHRE,TRIM4#,RH
main719A0-11010-J0i202309-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLUE,TRIM8#,RH
main719A0-11020-A0i202305-202508
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),WHITE,TRIM0#,LH
main719A0-11020-C0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLACK,TRIM2#,LH
main719A0-11020-D1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),DK.ROSE,TRIM3#,LH
main719A0-11020-E0supersedes 719B0-11040-E0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),LT.OCHRE,TRIM4#,LH
main719A0-11020-J0i202309-202409
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLUE,TRIM8#,LH
main719B0-11020-A0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#,RH
main719B0-11020-C0supersedes 719B0-11040-C0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#,RH
main719B0-11020-D1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#,RH
main719B0-11020-E0supersedes 719B0-11040-E0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM4#,RH
main719B0-11020-J0i202309-202409
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#,RH
main719B0-11060-A0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#,LH
main719B0-11060-C0supersedes 719B0-11040-C0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#,LH
main719B0-11060-D1i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#,LH
main719B0-11060-E0supersedes 719B0-11040-E0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM4#,LH
main719B0-11060-J0i202309-202409
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#,LH
71910FHEADREST ASSY, FRONT SEAT, LH
main719B0-11050-C0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLACK,TRIM2#
main719B0-11050-D1i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),DK.ROSE,TRIM3#
main719B0-11050-E0i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),LT.OCHRE,TRIM4#
main719B0-11050-J0i202305-202508
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),WHITE,TRIM0#
main719B0-11050-J1i202309-202409
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLUE,TRIM8#
71921ACOVER, FRONT SEAT HEADREST
main72981-11050-A0×4i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),WHITE,TRIM0#
main72981-11050-C0×4i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLACK,TRIM2#,3#
main72981-11050-E0×4i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),OCHER,TRIM4#
main72981-11050-J0×4i202309-202409
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLUE,TRIM8#
71922ACOVER, FRONT SEAT HEADREST UNDER
main71922-11010-A0×2i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),WHITE,TRIM0#
main71922-11010-C0×2i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLACK,TRIM2#,3#
main71922-11010-E0×2i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),OCHER,TRIM4#
main71922-11010-J0×2i202309-202409
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-A9×2i202305
W(LOCK),WHITE,TRIM0#
main71930-47050-C5×2i202305-202403
W(LOCK),BLACK,TRIM2#,4#
main71931-47030-A9×2i202305
W/O(LOCK),PERSONAL PACKAGE& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main71931-47030-C4×2i202305
W/O(LOCK),BLACK,TRIM2#,3#,4#
main71930-47050-J1×2i202309-202409
W(LOCK),PERSONAL PACKAGE& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
main71931-47030-J1×2i202309-202409
W/O(LOCK), "S PACKAGE"& BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA&FRONT SEAT-SPORT TYPE,BLUE,TRIM8#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-11020i202305
main72020-11030i202305
72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72053-11010-A0i202305-202403
WHITE,TRIM0#
main72053-11010-C1i202305
"S+ PACKAGE"& BLUE&WHITE PACKAGE&FRONT SEAT-SPORT TYPE,BLACK,TRIM2#,3#
main72053-11010-D2i202305
DK. ROSE,TRIM30
main72053-11010-E2i202305
LT.OCHRE,TRIM4#
main72053-11030-C1i202305
BLACK,TRIM2#
main72053-11010-E1supersedes 72053-11010-E2i202305
"S PACKAGE"&FRONT SEAT-SPORT TYPE,OCHRE,TRIM4#
main72053-11010-J0i202309-202409
IE 24MY&FRONT SEAT-SPORT TYPE&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLUE,TRIM8#
main72053-11020-A1i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM0#
main72053-11020-C0i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK,TRIM2#,3#
main72053-11020-E1supersedes 72053-11030-E1i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHER,TRIM4#
main72053-11020-J0i202309-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-11010-A2i202305-202403
WHITE,TRIM0#
main72124-11010-C1i202305-202403
BLACK,TRIM2#,3#
main72124-11010-E1i202305-202403
OCHRE,TRIM4#
main72124-11010-J0i202305-202403
BLUE,TRIM8#
72125NCOVER, SEAT TRACK, UPPER NO.4
main72125-47020i202305-202403
sub72125-47010
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-11010-A2i202305
WHITE,TRIM0#
main72128-11010-C1i202305
BLACK,TRIM2#,3#
main72128-11010-E1i202305-202403
OCHRE,TRIM4#
main72128-11010-J0i202305-202403
BLUE,TRIM8#
72138COVER, SEAT TRACK, OUTER LH
main72137-11010-A2i202305-202403
WHITE,TRIM0#
main72137-11010-C1i202305
BLACK,TRIM2#,3#
main72137-11010-E1i202305-202403
OCHRE,TRIM4#
main72137-11010-J0i202305-202403
BLUE,TRIM8#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-11010-A2i202305
WHITE,TRIM0#
main72158-11010-C1i202305-202403
BLACK,TRIM2#,3#
main72158-11010-E1i202305
OCHRE,TRIM4#
main72158-11010-J0i202305-202403
BLUE,TRIM8#
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47020i202305-202403
72360CCABLE ASSY, RECLINING ADJUSTER EQUALIZING LH
main72360-11010i202305-202403
72554PROTECTOR, RECLINING COVER, LH
main72554-11010i202305-202403
main72554-11020i202305
72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH
main72714-11010i202305-202403
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-11010i202305-202403
72981COVER, FRONT SEAT HEADREST
main72981-11040-A0×4i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),WHITE,TRIM0#
main72981-11040-C0×4i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLACK,TRIM2#
main72981-11040-D1×4i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),DK. ROSE,TRIM3#
main72981-11040-E0×4i202305-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),LT.OCHRE,TRIM4#
main72981-11040-J0×4i202309-202403
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER),BLUE,TRIM8#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-11010i202305-202403
main73920-11030i202305-202403
8202
82667DHOLDER, CONNECTOR
main82666-47630i202305
8401
85822BMOTOR ASSY, POWER SEAT TILT, LH
main85801-11040i202305
main85801-47060i202305
85822CMOTOR ASSY, POWER SEAT LIFTER, LH
main85801-11050i202305-202403
85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
main85802-11010i202305-202403
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-11011i202305
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-11011i202305-202403
87330BBLOWER ASSY, HEATER
main87330-11010×2i202305
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)&SEAT HEATER-WITH(*DRP) & WITH(NECK HEATER)
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-11010i202305
9008416012
main90084-16012
9011910601
main90119-10601
9014810007
main90148-10007
9016440105
main90164-40105
9016740044
main90167-40044
9046315002
main90463-15002
9046707215
main90467-07215
9155180510
main91551-80510
9324915006
main93249-15006
9356054016
main93560-54016
9418560600
main94185-60600

66 parts on this diagram · 8 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
