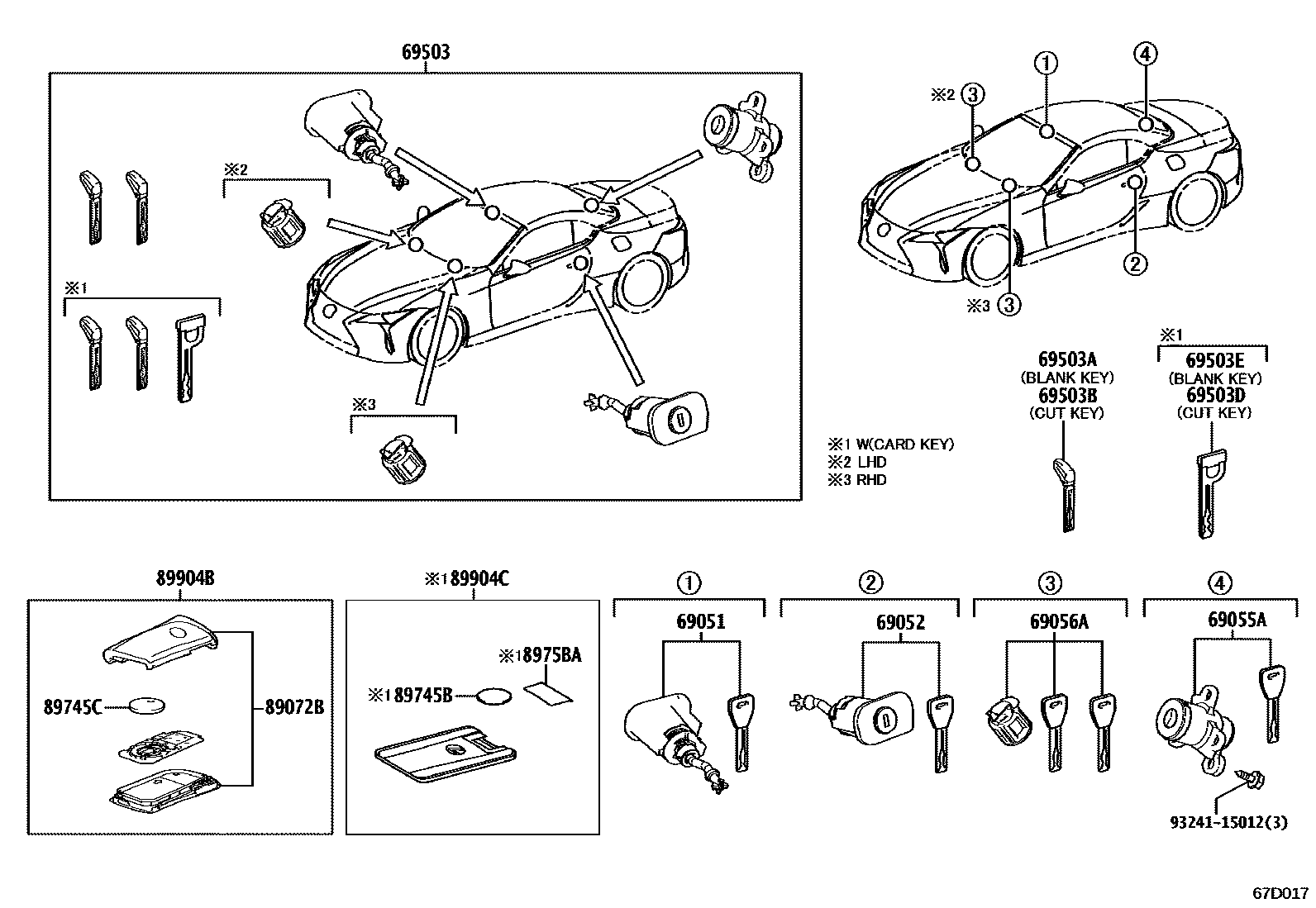

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-11070iGWZ100,URZ100..GCC,GEN202305

main69051-11080iGWZ100,URZ100..EUR202305-202403

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-11070iGWZ100,URZ100..GCC,GEN202305

main69052-11080iGWZ100,URZ100..ARL,CHI202305

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-11020iGWZ100,URZ100..EUR202305-202403

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iGWZ100,URZ100..EUR202305-202403

69503CYLINDER SET, LOCK

main69005-11070supersedes 69005-11050iGWZ100,URZ100..GCC,GEN202305

CARD KEY-WITH

main69005-11080supersedes 69005-11060iGWZ100,URZ100..ARL,CHI202305

CARD KEY-WITH

69503AKEY, BLANK

main69515-11020iGWZ100,URZ100..GCC,GEN202305

BLANK KEY

69503BKEY, CUT

main69515-11010iGWZ100,URZ100..EUR202305-202403

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

main69515-30330iGWZ100..CHI202305-202410

MASTER KEY,CARD KEY-WITH(DIGITAL KEY)

69503EKEY, BLANK(CARD KEY)

main69515-30350iGWZ100,URZ100..EUR202305-202403

MASTER KEY,CARD KEY-WITH

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-11290×2iGWZ100,URZ100..ARL,GCC,GEN202305

main89072-11380×2supersedes 89072-11270iURZ100..ARL202305

MALAYSIA SPEC

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iGWZ100,URZ100..EUR202305-202403

CR2412,IRELAND SPEC&CARD KEY-WITH

89745CBATTERY, TRANSMITTER

main89745-50020iGWZ100,URZ100..EUR202305-202403

CR2032

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50030iGWZ100..GEN;URZ100..CONV..GEN202305

ARGENTINA SPEC&CARD KEY-WITH

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-11030supersedes 8990H-11040iURZ100..RHD..CONV..EUR202305-202403

IRELAND SPEC

main8990H-11070iURZ100..GEN202305

PHILIPPINE SPEC

main8990H-11050supersedes 8990H-11080iGWZ100,URZ100..GEN202305-202311

GUATEMALA SPEC

main8990H-11051supersedes 8990H-11080iGWZ100,URZ100..GEN202312-202410

MIDDLE & SOUTH AMERICA SPEC

main8990H-11090iURZ100..ARL202305-202405

INDONESIA SPEC

main8990H-11091iURZ100..CONV..ARL202406

INDONESIA SPEC

main8990H-11100iGWZ100..RHD..EUR202305-202403

INDIA SPEC

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main8990H-11110iURZ100..RHD..CONV..EUR202305-202403

CARD KEY-WITH

main8990H-33280iGWZ100,URZ100..GEN202305

CARD KEY-WITH

main8990H-33301iURZ100..RHD..CONV..EUR202305-202401

CARD KEY-WITH(DIGITAL KEY)

main8990H-33302iGWZ100,URZ100..GEN202402-202508

GUATEMALA SPEC&CARD KEY-WITH

main8990H-33341iURZ100..CP..ARL202305-202410

INDONESIA SPEC&CARD KEY-WITH

main8990H-50C40iGWZ100..RHD..EUR202305-202403

INDIA SPEC&CARD KEY-WITH

9324115012

main93241-15012

16 parts on this diagram · 1 diagram in section
