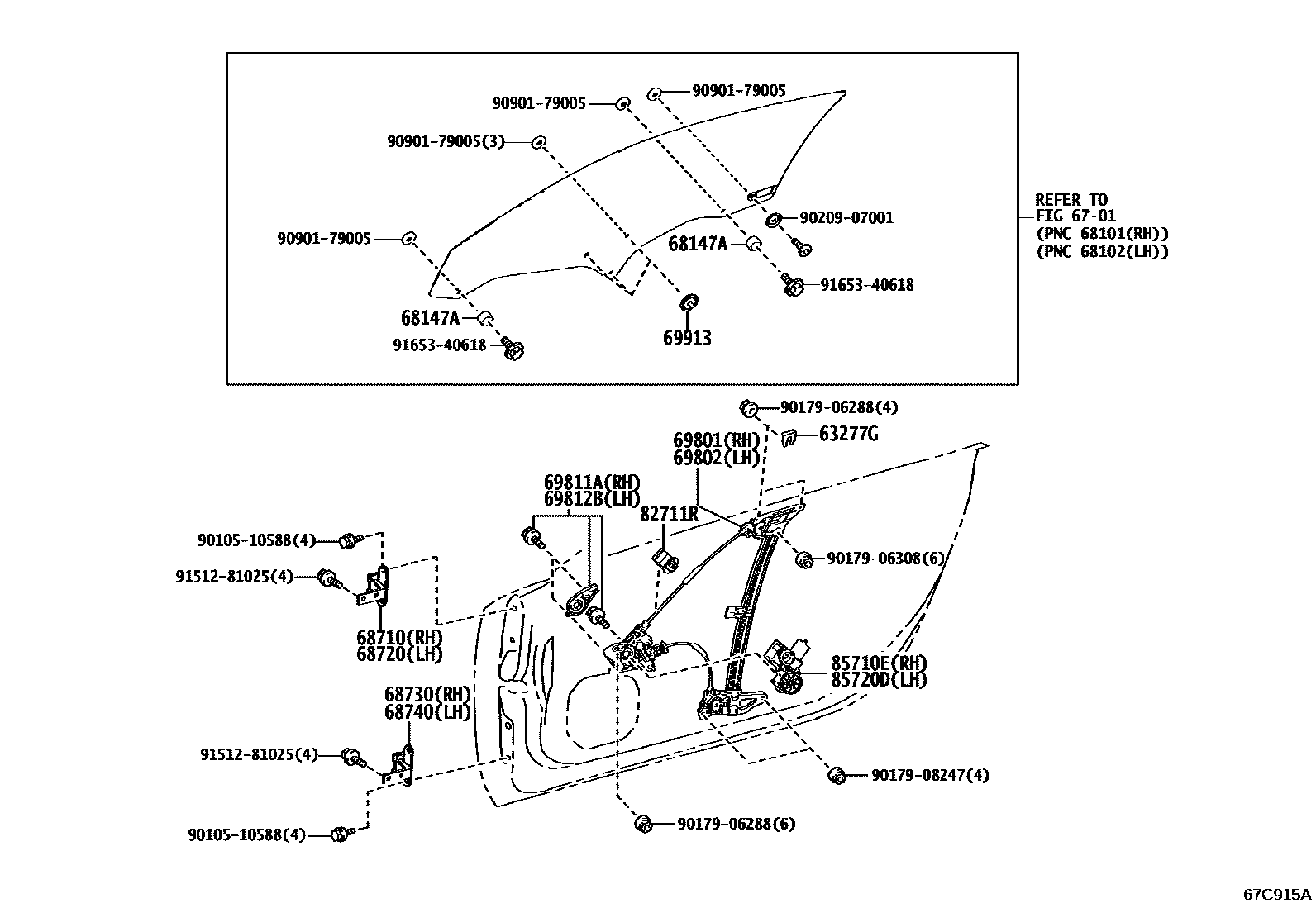

FRONT DOOR WINDOW REGULATOR & HINGE

63277GSHIM, WINDOW REGULATOR

main63277-30060iGWZ100,URZ100..EUR202305-202403

6701

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-22010×4iGWZ100,URZ100..EUR202305-202403

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-11010iGWZ100,URZ100..EUR202305-202403

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-11010iGWZ100,URZ100..EUR202305-202403

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-11010iGWZ100,URZ100..EUR202305-202403

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-11010iGWZ100,URZ100..EUR202305-202403

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-11010iGWZ100,URZ100..EUR202305-202403

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-11010iGWZ100,URZ100..EUR202305-202403

69811APLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-24020iGWZ100,URZ100..EUR202305-202403

69812BPLATE, FRONT DOOR WINDOW REGULATOR BASE, LH

main69814-24020iGWZ100,URZ100..EUR202305-202403

69913BOLT, FRONT DOOR GLASS SETTING

main69913-30090×6iGWZ100,URZ100..EUR202305-202403

82711RCLAMP, WIRING HARNESS

main82711-1E350×2iGWZ100,URZ100..EUR202305-202403

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-11010iGWZ100,URZ100..CP..EUR202305-202403

main85710-11020iURZ100..CONV..EUR202305-202403

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-11010iGWZ100,URZ100..CP..EUR202305-202403

main85720-11020iURZ100..CONV..EUR202305-202403

9010510588

main90105-10588

9017906288

main90179-06288

9017906308

main90179-06308

9017908247

main90179-08247

9020907001

main90209-07001

9090179005

main90901-79005

9151281025

main91512-81025

9165340618

main91653-40618

23 parts on this diagram · 1 diagram in section
