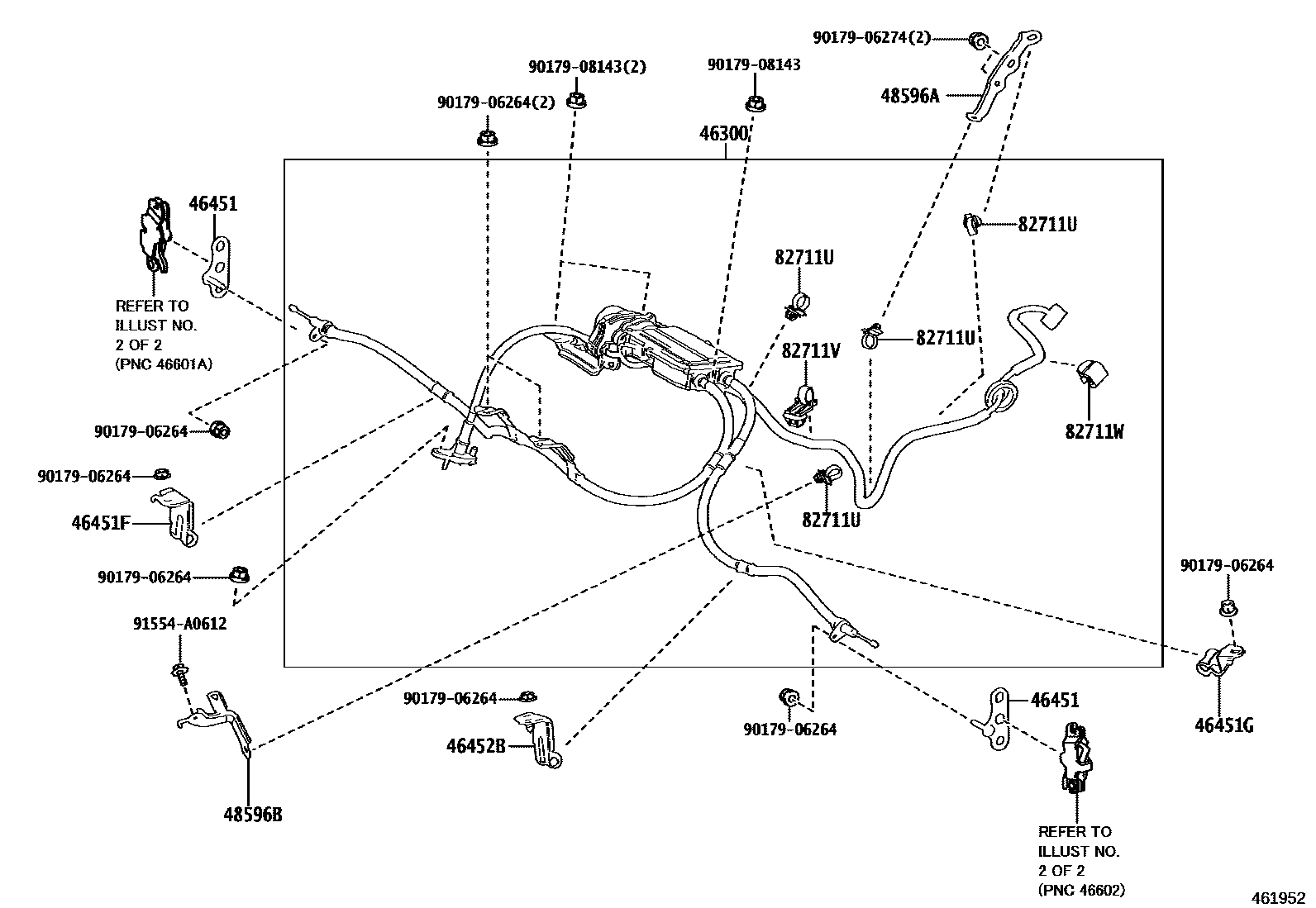

PARKING BRAKE & CABLE

0001 1 0002 1

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-11010iGWZ100,URZ100202305-202310

main46300-11011iGWZ100,URZ100..EUR202310-202403

46451BRACKET, CABLE SUPPORT

main46451-30270iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

RH

main46451-30280iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

LH

46451FBRACKET, CABLE SUPPORT

main46451-11060iGWZ100,URZ100..EUR202310-202403

main46451-11070iGWZ100,URZ100202305-202310

46451GBRACKET, CABLE SUPPORT

main46451-11030iGWZ100,URZ100..EUR202305-202403

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-11040iGWZ100,URZ100202305-202310

main46451-11050iGWZ100,URZ100..EUR202310-202403

48596ACLAMP, ACTUATOR HARNESS, NO.1

main48596-11020iGWZ100,URZ100..EUR202305-202403

48596BCLAMP, ACTUATOR HARNESS, NO.2

main48596-11010iGWZ100,URZ100..EUR202305-202403

82711UCLAMP, WIRING HARNESS, NO.1

main82711-16830×4iGWZ100,URZ100..EUR202305-202403

82711VCLAMP, WIRING HARNESS, NO.2

main82711-3F400iGWZ100,URZ100..EUR202305-202403

82711WCLAMP, WIRING HARNESS, NO.3

main82711-3F240iGWZ100,URZ100..EUR202305-202403

9017906264

main90179-06264

9017906274

main90179-06274

9017908143

main90179-08143

91554A0612

main91554-A0612

14 parts on this diagram · 2 diagrams in section
