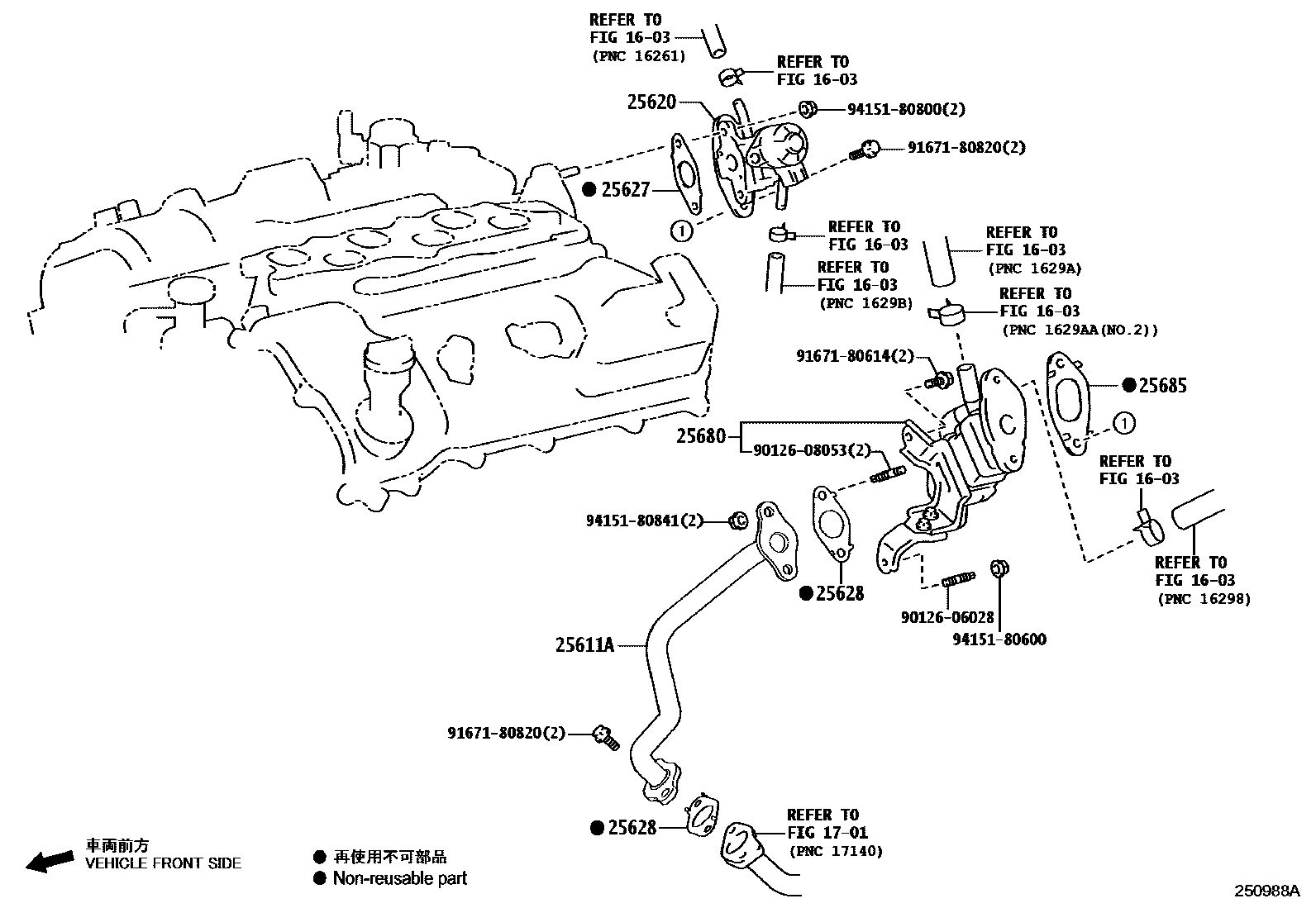

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25611APIPE, EGR, NO.1

main25611-31080i8GRFXS..GWZ100..EUR202305-202403

25620VALVE ASSY, EGR

main25620-31100i8GRFXS..GWZ100..EUR202305-202403

main25620-31110i8GRFXS..GWZ100..CHI,GCC,GEN202305

25627GASKET, EGR VALVE

main25627-31050i8GRFXS..GWZ100..EUR202305-202403

25628GASKET, EGR INLET

main25628-31040i8GRFXS..GWZ100..EUR202305-202403

25680COOLER ASSY, EGR

main25680-31070i8GRFXS..GWZ100..EUR202305-202403

main25680-31080i8GRFXS..GWZ100..CHI,GCC,GEN202305

25685GASKET, EGR COOLER, NO.1

main25685-31010i8GRFXS..GWZ100..EUR202305-202403

9012606028

main90126-06028

9012608053

main90126-08053

9167180614

main91671-80614

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

15 parts on this diagram · 1 diagram in section
