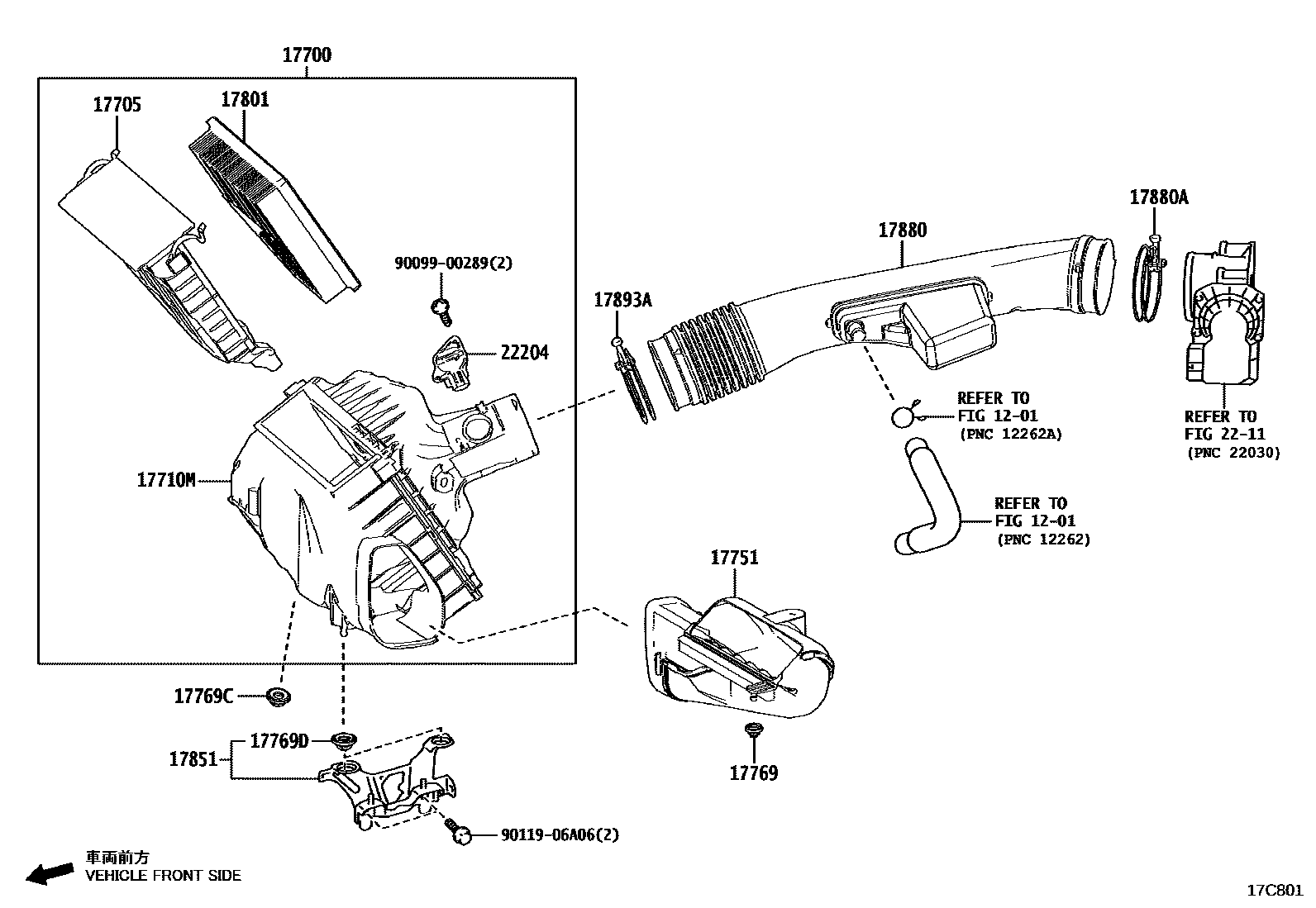

AIR CLEANER

0001 1 0002 1AIR CLEANER CASE 0003 1AIR CLEANER CASE & SOUND GENE0004 1AIR CLEANER CASE & SOUND GENE

1201

17700CLEANER ASSY, AIR

main17700-31B70i8GRFXS..GWZ100..ARL,CHI,GCC,GEN202305

17705CAP SUB-ASSY, AIR CLEANER

main17705-25140i8GRFXS..GWZ100..ARL,CHI,GCC,GEN202305

17710MCLEANER ASSY, AIR (WITHOUT ELEMENT)

main17710-31600i8GRFXS..GWZ100..ARL,CHI,GCC,GEN202305

17751INLET, AIR CLEANER, NO.1

main17751-31420i8GRFXS..GWZ100..ARL,CHI,GCC,GEN202305

main17751-38130i2URGSE..URZ100..EUR202305-202403

17769SUPPORT, AIR CLEANER

main17769-25040i2URGSE..URZ100..ARL,GCC,GEN202305

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25010i2URGSE..URZ100..EUR202305-202403

17769DSUPPORT, AIR CLEANER, NO.2

main17769-25010×2i2URGSE..URZ100..EUR202305-202403

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31150i8GRFXS..GWZ100..EUR202305-202403

main17801-38060×2i2URGSE..URZ100..EUR202305-202403

17851BRACKET, AIR CLEANER SUPPORT

main17850-38010i2URGSE..URZ100..EUR202305-202403

17880HOSE ASSY, AIR CLEANER

main17880-31430i8GRFXS..GWZ100..ARL,CHI,GCC,GEN202305

main17880-38090i2URGSE..URZ100..EUR202305-202403

17880ACLAMP, HOSE

main17891-38070i2URGSE..URZ100..EUR202305-202403

main90460-90005i8GRFXS..GWZ100..EUR202305-202403

17893ACLAMP, HOSE

main90460-85010i8GRFXS..GWZ100..ARL,CHI,GCC,GEN202305

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040i2URGSE..URZ100..EUR202305-202403

9009900289

main90099-00289

9011906A06

main90119-06A06

17 parts on this diagram · 4 diagrams in section
