MANIFOLD
1104
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17126STAY, SURGE TANK, NO.2
17140MANIFOLD ASSY, EXHAUST, RH
*114=*477
*114=*717
*114=TOYOTA/R31C50/Y
*114=TOYOTA/R31C51/Y
17150MANIFOLD ASSY, EXHAUST, LH
*114=*478,AZERBAIJAN SPEC
*114=*718,ARGENTINA SPEC
*114=TOYOTA/L31C50/Y
*114=TOYOTA/L31C51/Y
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
RH BANK
LH BANK
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17190TANK ASSY, INTAKE AIR SURGE
2211
2501
25586INSULATOR, MANIFOLD CONVERTER, NO.1
ARGENTINA SPEC,RH BANK
ARGENTINA SPEC,LH BANK
RH BANK
LH BANK
25587INSULATOR, MANIFOLD CONVERTER, NO.2
RH BANK
LH BANK
9010708004
main90107-08004
9012608052
main90126-08052
9012608060
main90126-08060
9155180618
main91551-80618
9155180825
main91551-80825
9167180614
main91671-80614
9167180820
main91671-80820
9415180800
main94151-80800
9415180841
main94151-80841

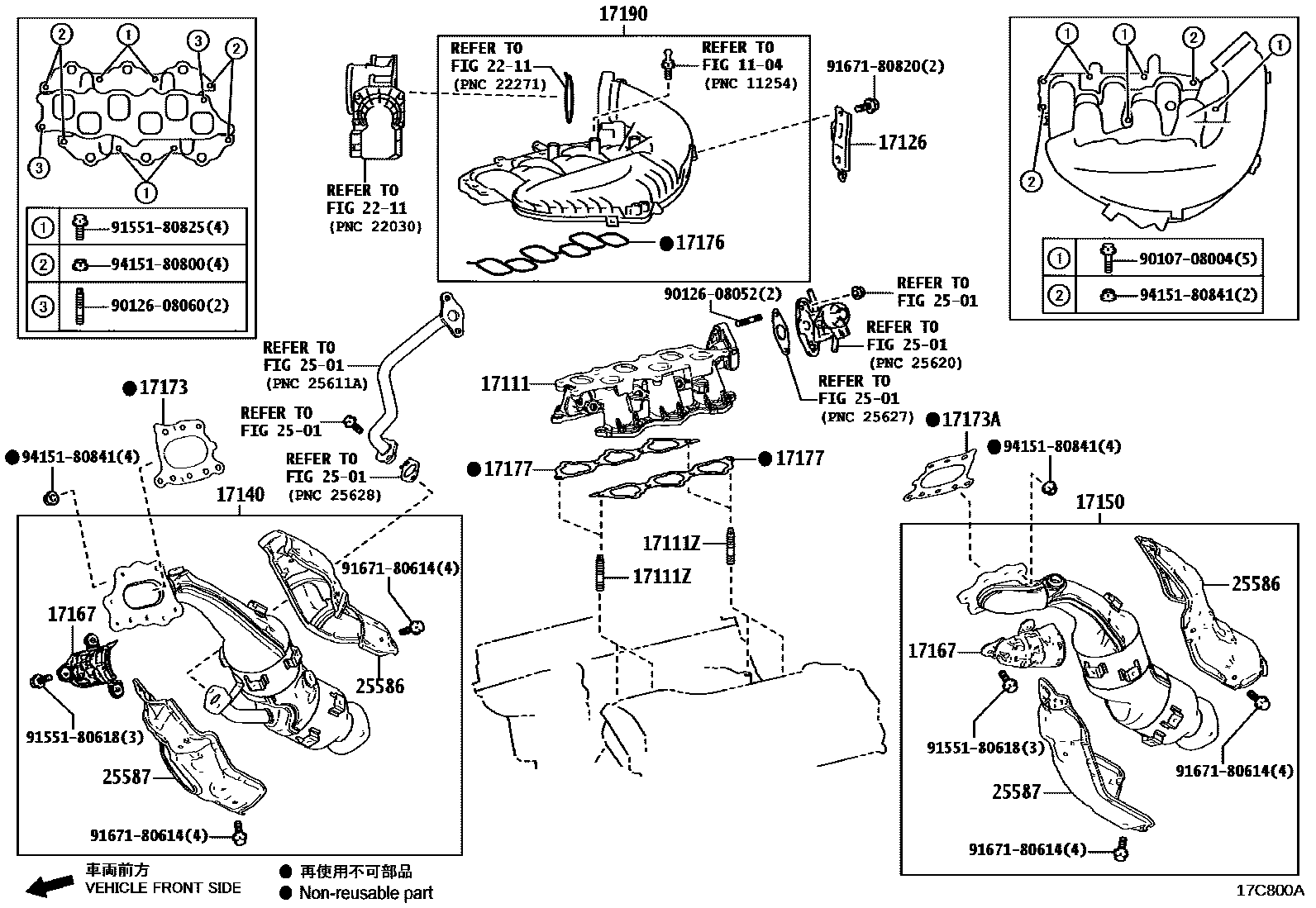

25 parts on this diagram · 2 diagrams in section
