PARTIAL ENGINE ASSEMBLY

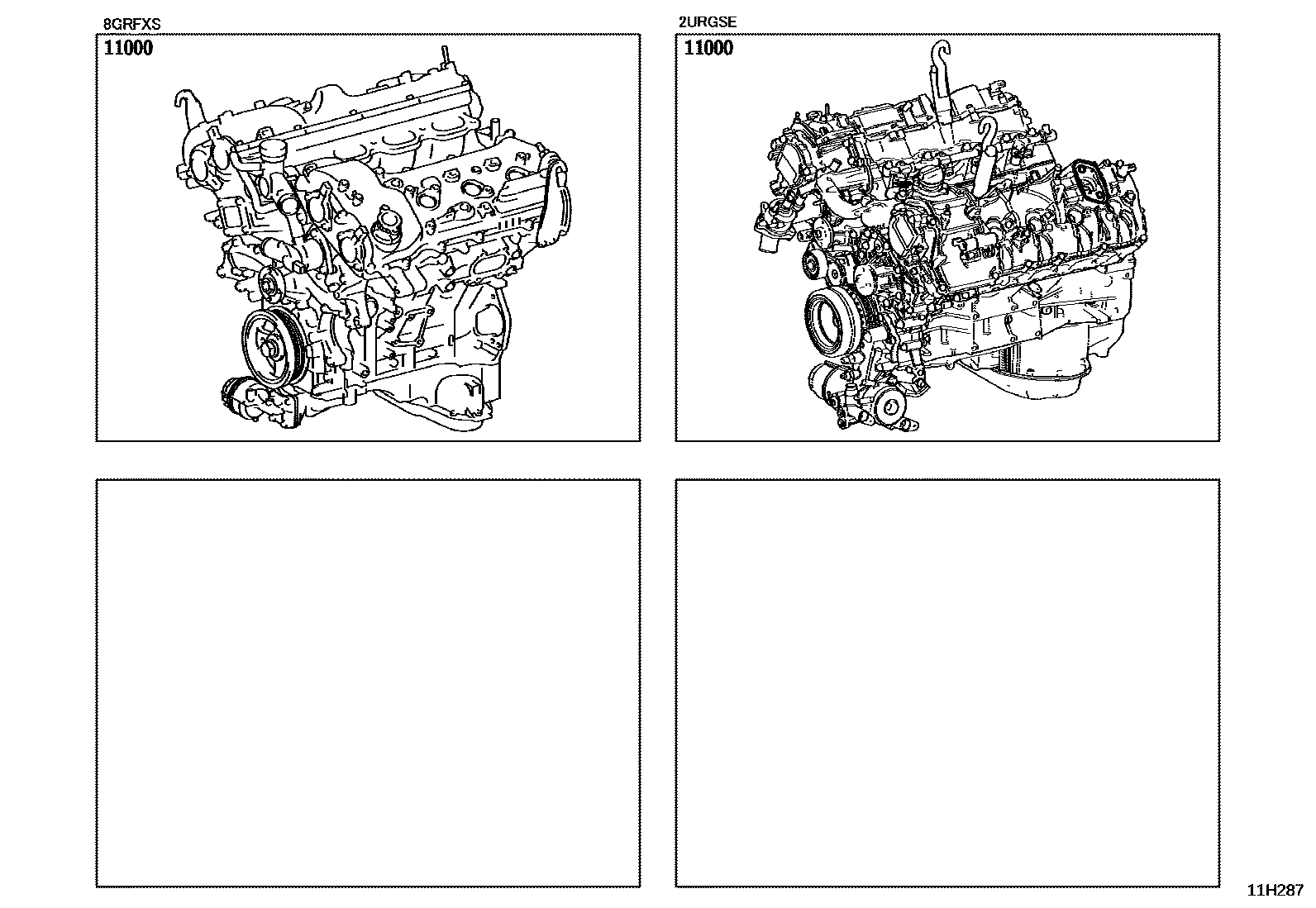

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31R50i202305-202404

main19000-31R51i202404

main19000-31R60i202305-202404

main19000-31R61i202404

main19000-38720i202305

1 parts on this diagram · 1 diagram in section
