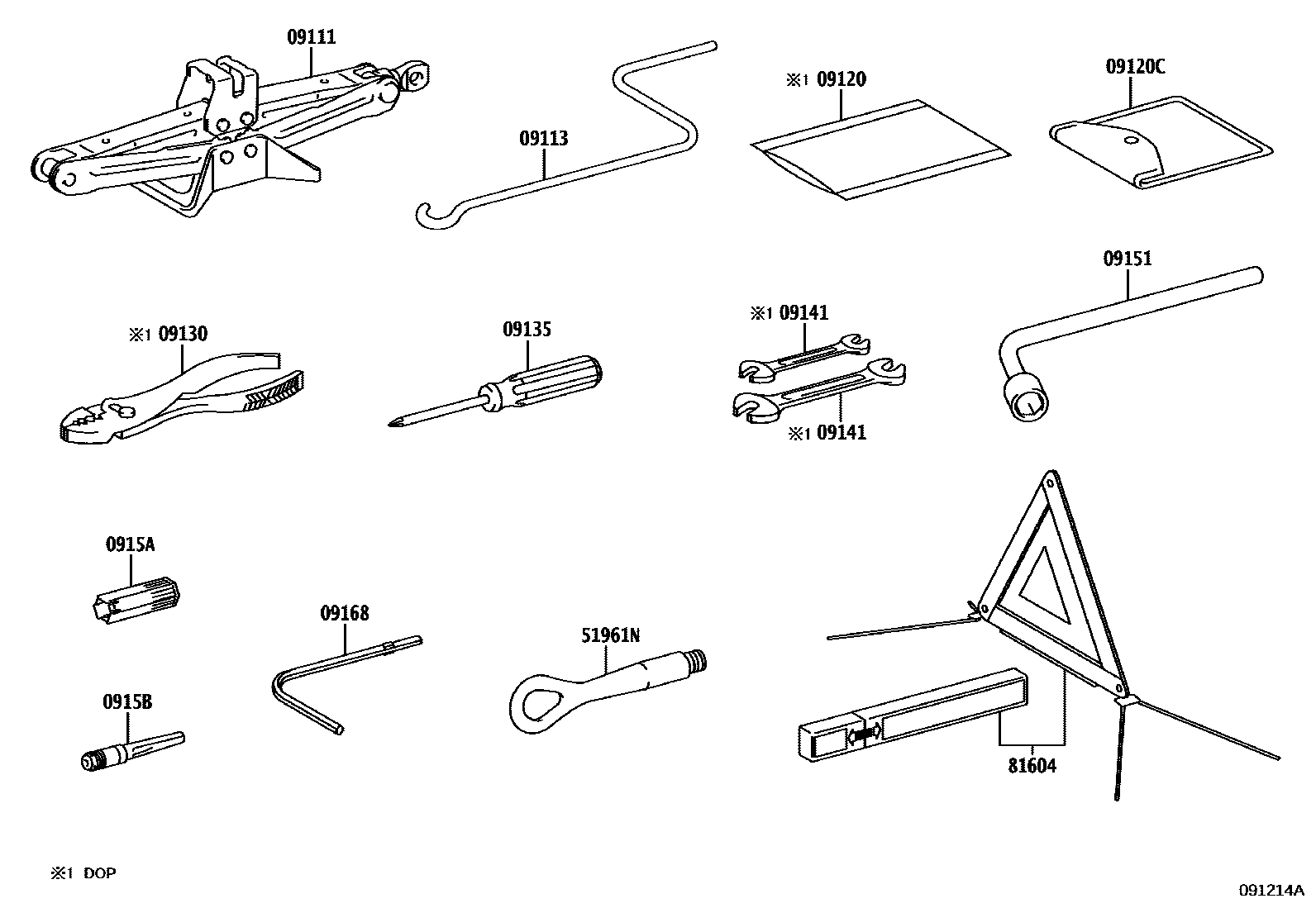

STANDARD TOOL

0001 1 0002 1

09111JACK SUB-ASSY

main09111-11060iGWZ100,URZ100..ARL202305

JACK-WITH(DOP, AUSTRALIA & NEW ZEALAND SPEC)

main09111-50131iGWZ100,URZ100..EUR202305-202403

JACK-WITH (DOP)

09113HANDLE, JACK

main09113-30050iGWZ100..CHI,GCC,GEN;URZ100..CONV..(GCC,GEN);URZ100..CP..(ARL,GCC,GEN)202305

JACK-WITH (DOP)

09120BAG, TOOL

main09120-24020iGWZ100,URZ100..EUR202305-202403

TOOL(DOP)-SPANNER & PLIERS & DRIVER

09120CBAG,TOOL, NO.2

main09120-13030iURZ100..CONV..(ARL,GCC,GEN)202305

09130PLIERS

main09130-50040iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

TOOL(DOP)-SPANNER & PLIERS & DRIVER

09135DRIVER, SCREW

main99915-10700iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

09141SPANNER

main09141-60010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

8 X 10,TOOL(DOP)-SPANNER & PLIERS & DRIVER

main09141-60020iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

12 X 14,TOOL(DOP)-SPANNER & PLIERS & DRIVER

09151WRENCH, HUB BOLT BOX

main09151-53010iGWZ100..CHI,GCC,GEN;URZ100..CONV..(GCC,GEN);URZ100..CP..(ARL,GCC,GEN)202305

JACK-WITH (DOP)

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iGWZ100..CHI,GCC,GEN;URZ100..CONV..(GCC,GEN);URZ100..CP..(ARL,GCC,GEN)202305

JACK-WITH (DOP)

0915BPIN, WHEEL GUIDE

main0915B-53010iGWZ100..CHI,GCC,GEN;URZ100..CONV..(GCC,GEN);URZ100..CP..(ARL,GCC,GEN)202305

JACK-WITH (DOP)

09168WRENCH, ROOF PANEL

main09168-11010iURZ100..CONV..EUR202305-202403

51961NHOOK, TRANSPORT

main51961-11030iGWZ100,URZ100..EUR202305-202403

81604REFLECTOR SET, TRIANGLE

main81604-78010iGWZ100..CHI202305

13 parts on this diagram · 2 diagrams in section
