NAVIGATION & FRONT MONITOR DISPLAY

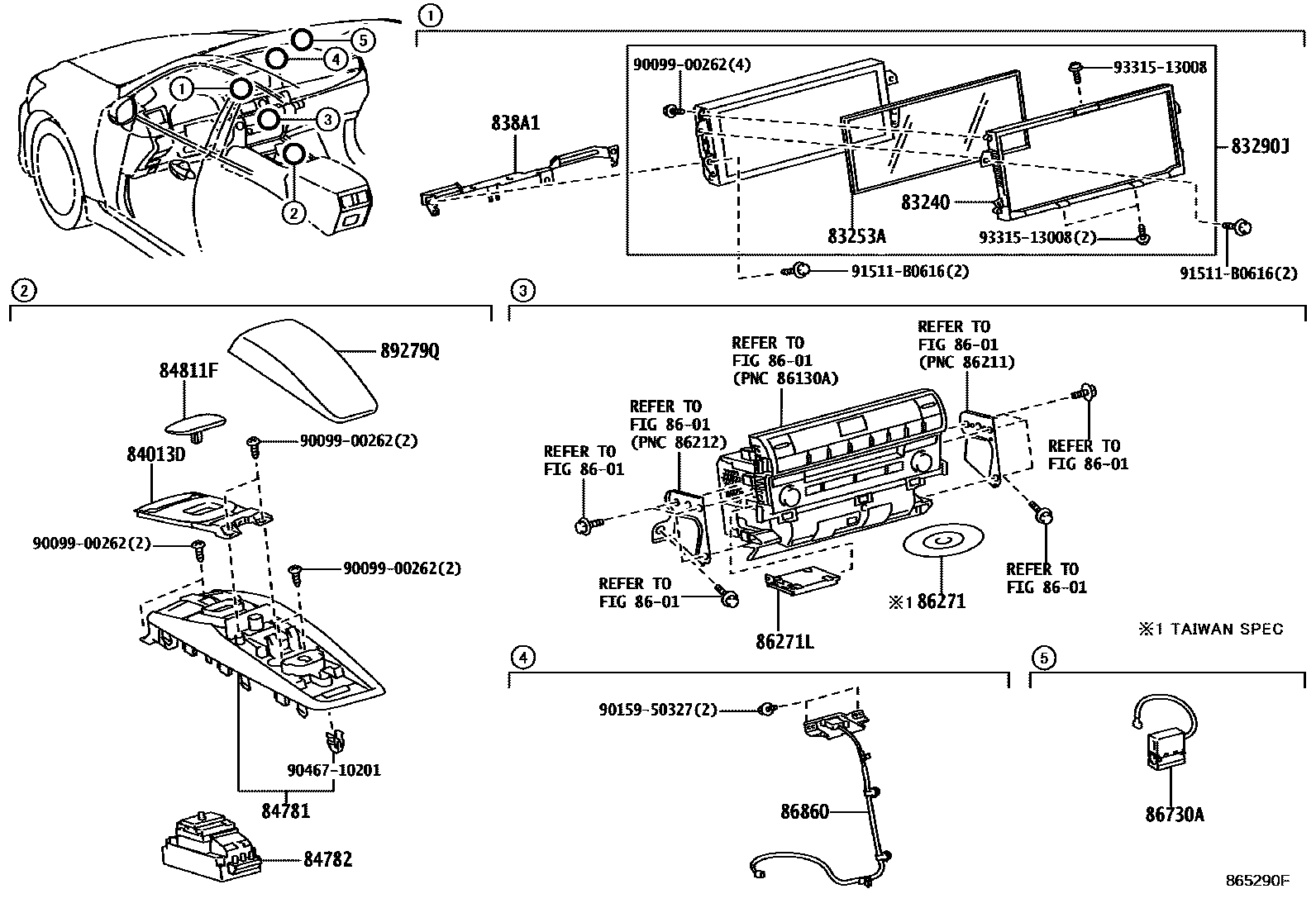

Parts diagram

83240CASE ASSY, MULTI INFORMATION DISPLAY

main83811-50010i201209-201309

main83811-50080i201309

83253AGLASS, ACCESSORY METER

main83253-50010i201209-201309

main83253-50080i201309

83290JMETER ASSY, ACCESSORY

main83290-50020i201209-201309

main83290-50030i201209-201309

PHILIPPINES SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); SOUTHEAST ASIA SPEC; THAILAND SPEC

main83290-50040i201211-201309

main83290-50090i201309-201410

main83290-50100i201309-201410

MALAYSIA; PHILIPPINES SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION); SOUTHEAST ASIA SPEC; THAILAND SPEC

main83290-50110i201309-201410

TAIWAN SPEC

main83290-50160i201410-201509

main83290-50170i201410-201509

MALAYSIA; PHILIPPINES SPEC; SOUTHEAST ASIA SPEC; THAILAND SPEC

main83290-50180i201410-201509

HONGKONG,MACAO SPEC

main83290-50230i201509-201706

main83290-50231i201707

main83290-50200i201410-201509

TAIWAN SPEC

838A1BRACKET, COMBINATION METER

main838A1-50020i201209

main838A1-50030i201209

84013DPANEL SUB-ASSY, INTEGRATION

main84013-50010i201209-201509

main84013-50020i201509-201708

84781SWITCH, REMOTE OPERATION

main84781-50010i201209-201509

main84781-50030i201209-201509

main84781-50070i201509

main84781-50090i201509

main84781-50020i201209-201509

EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main84781-50040i201309-201410

MALAYSIA&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main84781-50060i201509

EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

84782BOARD, REMOTE OPERATION

main84782-50010i201209-201410

main84782-50011i201210-201302

main84782-50020i201410-201509

main84782-50030i201509

84811FKNOB, SWITCH

main84811-50010i201209-201410

main84811-50011i201410-201506

main84811-50020i201509

main84811-50030i201507-201509

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86271DISC, DISC PLAYER

main86271-30A91i201410-201501

MICRO SD CARD

main86271-30A92i201501-201507

MICRO SD CARD

main86271-30A93i201507-201509

MICRO SD CARD

main86271-30B11i201410-201507

MICRO SD CARD

main86271-30B12i201507-201509

MICRO SD CARD

main86271-48330i201509-201608

MICRO SD CARD

main86271-48331i201608-201708

MICRO SD CARD

main86271-48340i201509-201601

MICRO SD CARD

main86271-48341i201601-201608

MICRO SD CARD

main86271-48342i201608-201702

MICRO SD CARD

main86271-48343i201702-201708

MICRO SD CARD

main86807-30131i201309-201408

main86807-30132i201409-201410

main86271-30B20i201410-201507

SOUTH AFRICA SPEC,MICRO SD CARD

main86271-30B21i201507-201509

SOUTH AFRICA SPEC,MICRO SD CARD

main86271-30B31i201410-201507

MALAYSIA,MICRO SD CARD; PHILIPPINES SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; SOUTHEAST ASIA SPEC,MICRO SD CARD; THAILAND SPEC,MICRO SD CARD

main86271-30B32i201507-201509

MALAYSIA,MICRO SD CARD; PHILIPPINES SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; SOUTHEAST ASIA SPEC,MICRO SD CARD; THAILAND SPEC,MICRO SD CARD

main86271-30B41i201410-201509

TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-48370i201509-201608

MALAYSIA,MICRO SD CARD; PHILIPPINES SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; SOUTHEAST ASIA SPEC,MICRO SD CARD; THAILAND SPEC,MICRO SD CARD

main86271-48371i201608-201708

MALAYSIA,MICRO SD CARD; PHILIPPINES SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD; SOUTHEAST ASIA SPEC,MICRO SD CARD; THAILAND SPEC,MICRO SD CARD

main86271-48380i201509-201609

AUSTRALIA,NEW ZEALAND SPEC,MICRO SD CARD

main86271-48381i201609-201708

AUSTRALIA,NEW ZEALAND SPEC,MICRO SD CARD

main86271-48390i201509-201608

SOUTH AFRICA SPEC,MICRO SD CARD

main86271-48391i201608-201609

SOUTH AFRICA SPEC

main86271-53381i201509-201609

TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-53382i201610-201708

TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICRO SD CARD

main86271-53410i201609-201701

TURKEY SPEC

main86271-53411i201702-201708

TURKEY SPEC

main86271-76041i201410-201509

AUSTRALIA,NEW ZEALAND SPEC,MICRO SD CARD

main86807-06010i201309-201410

AUSTRALIA,NEW ZEALAND SPEC

main86807-0W220i201209-201308

TAIWAN SPEC&MAP DISC(DOP)-WITH

main86807-0W221i201309-201407

TAIWAN SPEC&MAP DISC(DOP)-WITH

main86807-0W222i201408-201410

TAIWAN SPEC&MAP DISC(DOP)-WITH

main86807-30101i201309-201408

HONGKONG,MACAO SPEC

main86807-30102i201409-201410

HONGKONG,MACAO SPEC

main86807-30120i201209-201308

AUSTRALIA,NEW ZEALAND SPEC

main86807-30141i201309-201408

SOUTH AFRICA SPEC

main86807-30142i201409-201410

SOUTH AFRICA SPEC

main86807-30151i201309-201408

MALAYSIA; SOUTHEAST ASIA SPEC; THAILAND SPEC

main86807-30152i201409-201410

MALAYSIA; SOUTHEAST ASIA SPEC; THAILAND SPEC

86271LHARD DISC

main86271-30712i201209-201301

AUSTRALIA,NEW ZEALAND SPEC; HONGKONG,MACAO SPEC; ISRAEL SPEC; KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SOUTH AFRICA SPEC; SOUTH AMERICA SPEC; SOUTHEAST ASIA SPEC; TAIWAN SPEC; THAILAND SPEC; UKRAINE,CROATIA SPEC

main86271-30713i201302-201309

AUSTRALIA,NEW ZEALAND SPEC; HONGKONG,MACAO SPEC; ISRAEL SPEC; KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SOUTH AFRICA SPEC; SOUTH AMERICA SPEC; SOUTHEAST ASIA SPEC; TAIWAN SPEC; THAILAND SPEC; UKRAINE,CROATIA SPEC

main86271-30714i201309-201401

AUSTRALIA,NEW ZEALAND SPEC; HONGKONG,MACAO SPEC; ISRAEL SPEC; KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SOUTH AFRICA SPEC; SOUTH AMERICA SPEC; SOUTHEAST ASIA SPEC; TAIWAN SPEC; THAILAND SPEC; UKRAINE,CROATIA SPEC

main86271-30715i201401-201408

AUSTRALIA,NEW ZEALAND SPEC; HONGKONG,MACAO SPEC; ISRAEL SPEC; KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SOUTH AFRICA SPEC; SOUTH AMERICA SPEC; SOUTHEAST ASIA SPEC; TAIWAN SPEC; THAILAND SPEC; UKRAINE,CROATIA SPEC

main86271-30716i201408-201410

AUSTRALIA,NEW ZEALAND SPEC; HONGKONG,MACAO SPEC; ISRAEL SPEC; KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC; PHILIPPINES SPEC; RUSSIA SPEC; SOUTH AFRICA SPEC; SOUTH AMERICA SPEC; SOUTHEAST ASIA SPEC; TAIWAN SPEC; THAILAND SPEC; UKRAINE,CROATIA SPEC

main86271-30751i201209-201309

main86271-30752i201309-201408

main86271-30753i201408-201410

main86271-30810i201211-201410

main86271-53360i201410-201708

main86271-30700i201209-201410

INDIA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86271-30731i201209-201308

AUSTRALIA,NEW ZEALAND SPEC

main86271-30732i201309-201408

AUSTRALIA,NEW ZEALAND SPEC

main86271-30733i201408-201410

AUSTRALIA,NEW ZEALAND SPEC

main86271-30761i201209-201309

SOUTH AFRICA SPEC

main86271-30762i201309-201408

SOUTH AFRICA SPEC

main86271-30763i201408-201410

SOUTH AFRICA SPEC

main86271-30781i201209-201309

SOUTHEAST ASIA SPEC; THAILAND SPEC

main86271-30782i201309-201408

MALAYSIA; SOUTHEAST ASIA SPEC; THAILAND SPEC

main86271-30783i201408-201410

MALAYSIA; SOUTHEAST ASIA SPEC; THAILAND SPEC

main86271-30790i201309-201410

MALAYSIA&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86271-30820i201209-201410

SOUTH AMERICA SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86271-30830i201209-201410

TAIWAN SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON

main86271-30851i201209-201308

HONGKONG,MACAO SPEC

main86271-30852i201309-201409

HONGKONG,MACAO SPEC

main86271-30853i201409-201410

HONGKONG,MACAO SPEC

86730AMICROPHONE ASSY, TELEPHONE

main86730-50070i201209-201309

main86730-50080i201209-201309

main86730-50090i201309-201708

main86730-50100i201309-201708

86860ANTENNA ASSY, NAVIGATION

main86860-50120i201209-201410

main86860-50130i201209-201410

main86860-50140i201410

main86860-50150i201410

89279QCOVER

main89279-50040i201209-201509

main89279-50050i201509

9009900262

main90099-00262

9015950327

main90159-50327

9046710201

main90467-10201

91511B0616

main91511-B0616

9331513008

main93315-13008

19 parts on this diagram · 4 diagrams in section
