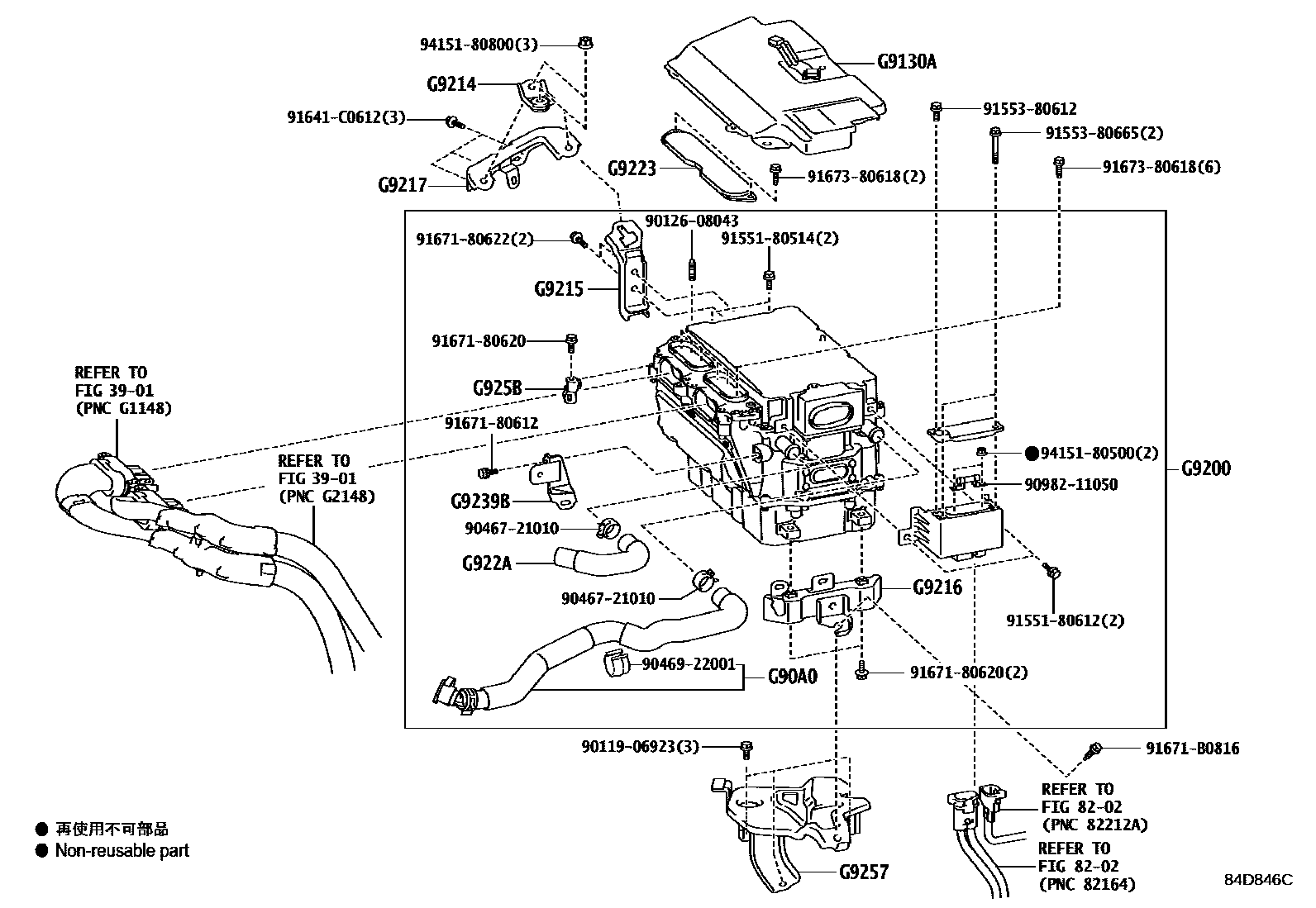

HEV INVERTER

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G90A0HOSE ASSY, INVERTER COOLING, NO.1

mainG90A050010iUVF4#..LHD201209-201708

G9130ACOVER ASSY, INVERTER, RH

mainG913050010iUVF4#..LHD201209

G9200INVERTER ASSY, W/CONVERTER

mainG920050064iUVF4#..LHD201209-201708

mainG920050074iUVF4#..RHD201209-201708

G9214BRACKET, INVERTER, NO.1

mainG921450010iUVF4#..LHD201209

mainG921450020iUVF4#..RHD201209

G9215BRACKET, INVERTER, NO.2

mainG921550010iUVF4#..LHD201209-201708

mainG921550020iUVF4#..RHD201209-201708

G9216BRACKET, INVERTER, NO.3

mainG921650010iUVF4#..LHD201209-201708

mainG921650020iUVF4#..RHD201209-201708

G9217BRACKET, INVERTER, NO.4

mainG921750010iUVF4#..LHD201209

mainG921750020iUVF4#..RHD201209

G9223COVER, INVERTER TERMINAL

mainG922350012iUVF4#..LHD201209

mainG922350022iUVF4#..RHD201209

G922AHOSE, INVERTER COOLING INLET, NO.1

mainG922A50010iUVF4#..LHD201209-201708

G9239BBRACKET, INVERTER COOLING PIPE

mainG923950020iUVF4#..RHD201209-201708

mainG923950040iUVF4#..LHD201209-201708

G9257BRACKET, INVERTER, NO.5

mainG925750010iUVF4#..LHD201209

mainG925750020iUVF4#..RHD201209

G925BBRACKET, INVERTER, NO.6

mainG925B50010iUVF4#..LHD201209

mainG925B50020iUVF4#..RHD201209

9011906923

main90119-06923

9012608043

main90126-08043

9046721010

main90467-21010

9046922001

main90469-22001

9098211050

main90982-11050

9155180514

main91551-80514

9155180612

main91551-80612

9155380612

main91553-80612

9155380665

main91553-80665

91641C0612

main91641-C0612

9167180612

main91671-80612

9167180620

main91671-80620

9167180622

main91671-80622

91671B0816

main91671-B0816

9167380618

main91673-80618

9415180500

main94151-80500

9415180800

main94151-80800

31 parts on this diagram · 2 diagrams in section
