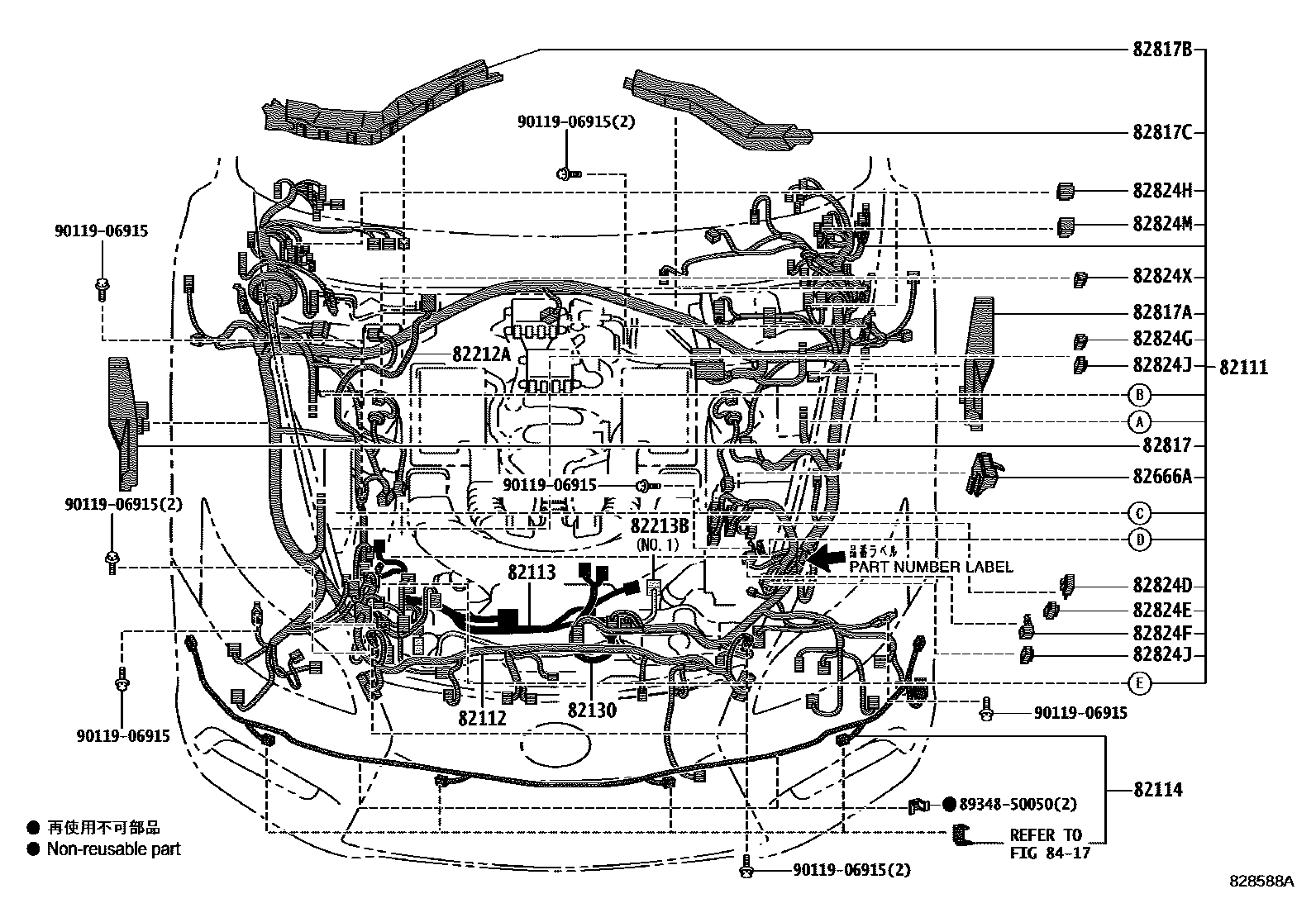

82111WIRE, ENGINE ROOM MAIN

main82111-50R90i201209-201301

main82111-50R91i201301-201309

main82111-50R92i201309

main82111-50S00i201210-201301

F SPORT

main82111-50S01i201301-201309

F SPORT

main82111-50S02i201309-201311

F SPORT

main82111-50S10i201209-201301

main82111-50S11i201301-201309

main82111-50S12i201309-201410

main82111-50S13i201410

main82111-50S23i201410

main82111-50S60i201311-201609

F SPORT

main82111-50S61i201609

F SPORT

main82111-50S20i201210-201301

F SPORT

main82111-50S21i201301-201309

F SPORT

main82111-50S22i201309-201410

F SPORT

main82111-5A030i201609

TAIWAN SPEC

main82111-5A040i201609

TAIWAN SPEC&F SPORT

82112WIRE, ENGINE ROOM, NO.2

main82112-50470supersedes 82112-50460i201410

main82112-50530supersedes 82112-50520i201209

PRE-COLLISION SYSTEM-WITH(*DMO & *MRT & *PB & *PSB); PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB); PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)

main82112-50550supersedes 82112-50540i201209

PRE-COLLISION SYSTEM-WITH(*DMO & *MRT & *PB & *PSB); PRE-COLLISION SYSTEM-WITH(*PB)

82113WIRE, ENGINE ROOM, NO.3

main82113-50050i201209

main82113-50060i201209

82114WIRE, ENGINE ROOM, NO.4

main82114-50050i201209-201708

main82114-50060supersedes 82114-50050i201210-201708

F SPORT

82130HARNESS ASSY, CHASSIS WIRE

main82130-50030i201209

main82130-50040i201209

82212AHARNESS, AIR CONDITIONER

main82212-50072i201209-201708

main82212-50081i201209-201708

82213BWIRE, HEATER

main82213-50020×2i201209-201410

NO.2

main82213-50032i201209

NO.1

main82213-50041i201209

NO.1

82666AHOLDER, CONNECTOR NO.2

main82666-50570i201209

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-50B30i201209

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-50D40i201209

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-50B50i201209

main82817-50E70i201209

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-50B60i201209

main82817-50C20i201209

82824CONNECTOR, WIRING HARNESS

main82824-50270i201210

82824DCONNECTOR, WIRING HARNESS

main82824-30130i201209

82824ECONNECTOR, WIRING HARNESS

main82824-30170i201209

82824FCONNECTOR, WIRING HARNESS

main82824-48020i201209

82824GCONNECTOR, WIRING HARNESS

main82824-50110i201209

82824HCONNECTOR, WIRING HARNESS

main82824-50350×2i201209

82824JCONNECTOR, WIRING HARNESS

main82824-52280×2i201209

82824MCONNECTOR, WIRING HARNESS

main82824-52290i201209

82824XCONNECTOR, WIRING HARNESS

main82824-50300i201209

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9011906915

main90119-06915

WIRING & CLAMP
