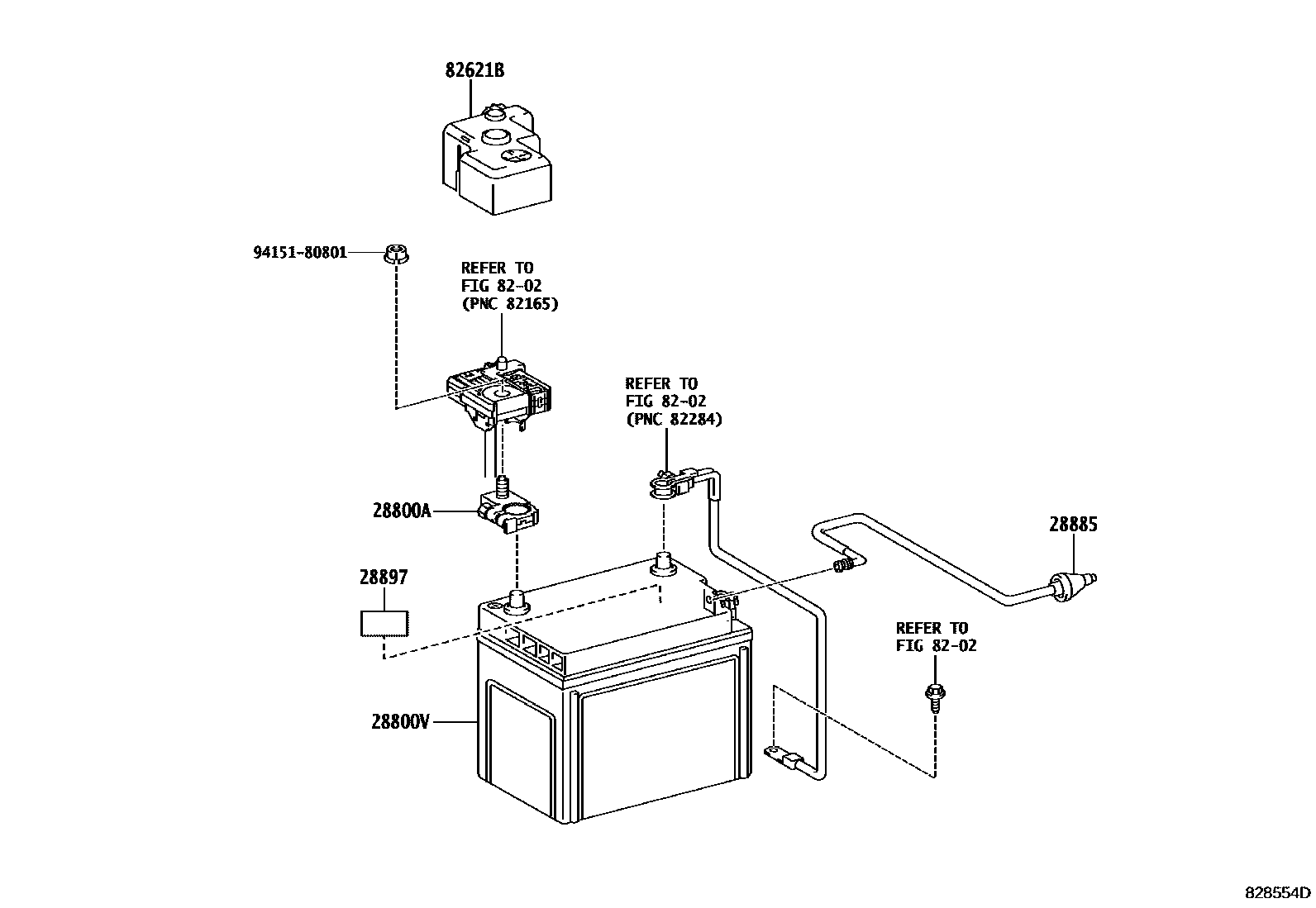

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800ATERMINAL, BATTERY POSITIVE

main90982-05065i2URFSE..UVF4#201209

28800VBATTERY, W/TEMPERATURE SENSOR

main28800-38120i2URFSE..UVF4#201209-201708

S75D31L

28885HOSE, BATTERY ROOM VENTILATION

main28885-38010i2URFSE..UVF4#201209

28897PLATE, BATTERY CAUTION

main28897-36030i2URFSE..UVF4#..GCC201609

GULF SPEC

main28897-31040i2URFSE..UVF4#..LHD..EUR201209

RUSSIA SPEC

8202WIRING & CLAMP

→ Go to FIG 82-02

82621BCOVER, FUSIBLE LINK

main82621-30010iUVF4#201209

9415180801

main94151-80801

7 parts on this diagram · 4 diagrams in section
