EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

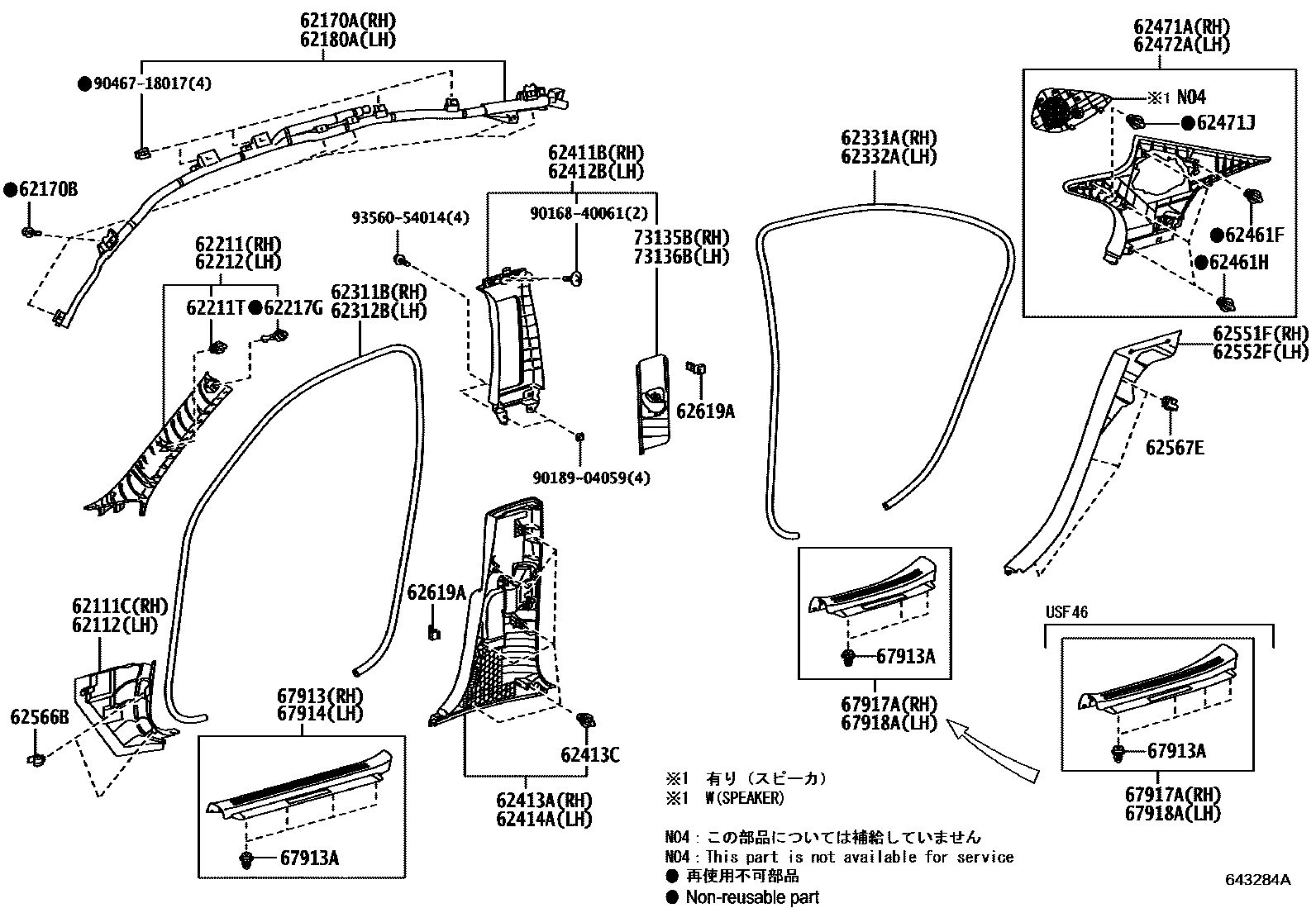

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-50020-A1i201209-201410
MELLOW WHITE,TRIM00,02
main62111-50020-A3i201209-201410
IVORY,TRIM01
main62111-50020-C0i201209-201410
BLACK,TRIM1#,2#,4#,5#
main62111-50070-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62111-50070-A1i201209-201306
IVORY,TRIM01; IVORY,TRIM01,04
main62111-50070-C0i201210-201306
BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62111-50071-A0i201307-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62111-50071-A1i201307-201708
IVORY,TRIM01; IVORY,TRIM01,04
main62111-50071-C0i201307-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#,5#
62112BOARD, COWL SIDE TRIM, LH
main62112-50020-A1i201209-201410
MELLOW WHITE,TRIM00,02
main62112-50020-A3i201209-201708
IVORY,TRIM01
main62112-50020-C0i201410-201708
BLACK,TRIM2#
main62112-50070-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62112-50070-A1i201209-201306
IVORY,TRIM01; IVORY,TRIM01,04
main62112-50070-C0i201210-201306
BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62112-50071-A0i201307-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62112-50071-A1i201307-201708
IVORY,TRIM01; IVORY,TRIM01,04
main62112-50071-C0i201307-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#,5#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-50040i201209
main62170-50050i201209
62170BBOLT, W/WASHER
main90119-06869×12i201209
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-50040i201209
main62180-50050i201209
62211GARNISH, FRONT PILLAR, RH
main62211-50100-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62211-50100-A1i201209-201306
IVORY,TRIM01,04,41,5#; IVORY,TRIM01,5#
main62211-50100-B0i201209-201306
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,40
main62211-50101-A0i201307-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM02
main62211-50101-A1i201307-201708
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,5#
main62211-50101-B0i201307-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main62211-50110-C0i201210-201306
BLACK,TRIM2#; F SPORT&,BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62211-50111-C0supersedes 62211-50131-C1i201307-201708
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main62211-50120-A2supersedes 62211-50100-A0i201209-201306
MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62211-50120-A3i201209-201306
IVORY,TRIM01,41,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,41,5#
main62211-50120-B1i201211-201306
LT.GRAY,TRIM2#,40; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#,40
main62211-50121-A2i201307-201511
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62211-50121-A3i201307-201410
IVORY,TRIM01,4#,5#
main62211-50121-B1supersedes 62211-50101-B0i201307-201511
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62211-50122-A2i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62211-50122-A3i201512-201708
IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,4#,5#
main62211-50122-B1i201512-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62211-50130-C1i201210-201306
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
main62211-50131-C1i201307-201708
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10161×2i201209
62212GARNISH, FRONT PILLAR, LH
main62212-50100-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62212-50100-A1i201209-201306
IVORY,TRIM01,04,41,5#; IVORY,TRIM01,5#
main62212-50100-B0i201209-201306
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,40
main62212-50101-A0i201307-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM02
main62212-50101-A1i201307-201708
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,5#
main62212-50101-B0i201307-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main62212-50110-C0i201210-201306
BLACK,TRIM2#; F SPORT&,BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62212-50111-C0supersedes 62212-50131-C1i201307-201708
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main62212-50120-A2supersedes 62212-50100-A0i201211-201306
MELLOW WHITE,TRIM00; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02
main62212-50120-A3i201209-201306
IVORY,TRIM01,41,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,41,5#
main62212-50120-B1i201211-201306
LT.GRAY,TRIM2#,40; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#,40
main62212-50121-A2i201307-201410
MELLOW WHITE,TRIM00,02
main62212-50121-A3i201307-201511
IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,4#,5#
main62212-50121-B1supersedes 62212-50101-B0i201307-201511
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62212-50122-A2i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62212-50122-A3i201512-201708
IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,4#,5#
main62212-50122-B1i201512-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62212-50130-C1i201210-201306
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
main62212-50131-C1i201307-201708
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
main62217-50020×2i201209
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-50041-C1i201209-201708
BLACK,TRIM1#,2#,4#,50,51; BLACK,TRIM2#,4#,50,51
main62311-50041-E0i201209-201708
ORCHID BROWN,TRIM0#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-50041-C1i201209-201708
BLACK,TRIM1#,2#,4#,50,51; BLACK,TRIM2#,4#,50,51
main62312-50041-E0i201209-201708
ORCHID BROWN,TRIM0#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-50041-C1i201209-201708
BLACK,TRIM1#,2#,4#,50,51
main62331-50041-E0i201209-201708
ORCHID BROWN,TRIM0#
main62331-50051-C1i201209-201708
BLACK,TRIM1#,2#,4#,50,51; BLACK,TRIM2#,4#,50,51
main62331-50051-E0i201209-201708
ORCHID BROWN,TRIM0#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-50041-C1i201209-201708
BLACK,TRIM1#,2#,4#,50,51
main62332-50041-E0i201209-201708
ORCHID BROWN,TRIM0#
main62332-50051-C1i201209-201708
BLACK,TRIM1#,2#,4#,50,51; BLACK,TRIM2#,4#,50,51
main62332-50051-E0i201209-201708
ORCHID BROWN,TRIM0#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-50070-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62410-50070-A1i201209-201306
IVORY,TRIM01,04,41,5#; IVORY,TRIM01,5#
main62410-50070-B0i201209-201306
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,40
main62410-50071-A0i201307-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM02
main62410-50071-A1i201307-201708
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,5#
main62410-50071-B0i201307-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main62410-50080-C0i201210-201306
BLACK,TRIM2#; F SPORT&,BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62410-50081-C0supersedes 62410-50101-C1i201307-201708
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main62410-50090-A2supersedes 62410-50070-A0i201209-201306
MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62410-50090-A3supersedes 62410-50071-A1i201209-201306
IVORY,TRIM01,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,5#
main62410-50090-B1supersedes 62410-50070-B0i201209-201306
LT.GRAY,TRIM1#,2#,4#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#,4#
main62410-50091-A2i201307-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62410-50091-A3i201307-201410
IVORY,TRIM01,4#,5#
main62410-50091-B1supersedes 62410-50071-B0i201307-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62410-50100-C1i201210-201306
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
main62410-50101-C1i201307-201708
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62420-50070-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62420-50070-A1i201209-201306
IVORY,TRIM01,04,41,5#; IVORY,TRIM01,5#
main62420-50070-B0i201209-201306
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,40
main62420-50071-A0i201307-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM02
main62420-50071-A1i201307-201708
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,5#
main62420-50071-B0i201307-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main62420-50080-C0i201210-201306
BLACK,TRIM2#; F SPORT&,BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62420-50081-C0supersedes 62420-50101-C1i201307-201708
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main62420-50090-A2supersedes 62420-50070-A0i201209-201306
MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62420-50090-A3supersedes 62420-50071-A1i201209-201306
IVORY,TRIM01,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,5#
main62420-50090-B1supersedes 62420-50070-B0i201211-201306
LT.GRAY,TRIM2#,4#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#,4#
main62420-50091-A2i201307-201410
MELLOW WHITE,TRIM00,02
main62420-50091-A3i201307-201410
IVORY,TRIM01,4#,5#
main62420-50091-B1supersedes 62420-50071-B0i201307-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62420-50100-C1i201210-201306
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
main62420-50101-C1i201307-201410
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-50170-A2i201209-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62413-50170-A3i201209-201708
IVORY,TRIM01; IVORY,TRIM01,04
main62413-50170-C1i201209-201410
BLACK,TRIM1#,2#,4#,5#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161×12i201209
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-50170-A2i201209-201410
MELLOW WHITE,TRIM00,02
main62414-50170-A3i201209-201708
IVORY,TRIM01; IVORY,TRIM01,04
main62414-50170-C1i201209-201410
BLACK,TRIM1#,2#,4#,5#
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
main90467-10167×2i201209
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-10161×6i201209
62471AGARNISH, ROOF SIDE, INNER RH
main62471-50170-C1supersedes 62471-50182-C2i201210-201306
BLACK,TRIM2#; F SPORT&,BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62471-50171-C1supersedes 62471-50181-C2i201307-201511
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main62471-50172-C1i201512-201708
BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62471-50220-A2supersedes 62471-50240-A2i201209-201306
MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62471-50220-A3i201209-201306
IVORY,TRIM01,41,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,41,5#
main62471-50220-B1i201211-201306
LT.GRAY,TRIM2#,40; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#,40
main62471-50221-A2i201307-201511
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62471-50221-A3i201307-201511
IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,4#,5#
main62471-50221-B1supersedes 62471-50242-B1i201307-201511
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62471-50222-A2i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62471-50222-A3i201512-201708
IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,4#,5#
main62471-50222-B1i201512-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62471-50240-A2i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62471-50240-A3i201209-201306
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,5#
main62471-50240-B1i201209-201306
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#
main62471-50241-A2i201307-201511
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM02
main62471-50241-A3i201307-201511
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,5#
main62471-50241-B1i201307-201511
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main62471-50242-A2i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM02
main62471-50242-A3i201512-201708
IVORY,TRIM01,4#,5#; IVORY,TRIM01,5#
main62471-50242-B1i201512-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main62471-50180-C2i201210-201306
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
main62471-50181-C2i201307-201511
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
main62471-50182-C2i201512-201708
BLACK,TRIM2#; F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
62471JCLIP (FOR ROOF SIDE GARNISH)
main62217-12050×2i201209
62472AGARNISH, ROOF SIDE, INNER LH
main62472-50170-C1supersedes 62472-50182-C2i201210-201306
BLACK,TRIM2#; F SPORT&,BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62472-50171-C1supersedes 62472-50181-C2i201307-201511
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main62472-50172-C1i201512-201708
BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main62472-50220-A2supersedes 62472-50240-A2i201211-201306
MELLOW WHITE,TRIM00; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02
main62472-50220-A3i201209-201306
IVORY,TRIM01,41,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,41,5#
main62472-50220-B1i201209-201306
LT.GRAY,TRIM1#,2#,40; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#,40
main62472-50221-A2i201307-201410
MELLOW WHITE,TRIM00,02
main62472-50221-A3i201307-201511
IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,4#,5#
main62472-50221-B1supersedes 62472-50242-B1i201307-201511
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62472-50222-A2i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; VERSION L&SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62472-50222-A3i201512-201708
IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,4#,5#
main62472-50222-B1i201512-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),LT.GRAY,TRIM1#,2#; VERSION L&SEMI-ANILINE LEATHER SEAT,LT.GRAY,TRIM1#,2#
main62472-50240-A2i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62472-50240-A3i201209-201306
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,5#
main62472-50240-B1i201209-201306
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#
main62472-50241-A2i201307-201511
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM02
main62472-50241-A3i201307-201511
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,5#
main62472-50241-B1i201307-201511
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main62472-50242-A2i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM02
main62472-50242-A3i201512-201708
IVORY,TRIM01,4#,5#; IVORY,TRIM01,5#
main62472-50242-B1i201512-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main62472-50180-C2i201210-201306
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
main62472-50181-C2supersedes 62472-50182-C2i201307-201410
F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
main62472-50182-C2i201512-201708
BLACK,TRIM2#; F SPORT&LEATHER SEAT(F SPORT),BLACK,TRIM2#
62551FGARNISH, REAR SEAT SIDE, RH
main62551-50080-A1i201209-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62551-50080-A2i201209-201708
IVORY,TRIM01; IVORY,TRIM01,04
main62551-50080-C0i201209-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#; BLACK,TRIM2#,4#,5#
main62551-50140-A0supersedes 62551-50080-A1i201209-201306
LEATHER SEAT(F SPORT),MELLOW WHITE,TRIM00,02; MELLOW WHITE,TRIM00,02; SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62551-50140-A1supersedes 62551-50080-A2i201209-201306
IVORY,TRIM01; LEATHER SEAT(F SPORT),IVORY,TRIM01; SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01
main62551-50140-C0supersedes 62551-50080-C0i201211-201306
BLACK,TRIM2#,4#,5#; SEMI-ANILINE *LES(EXCEPT VERSION C),BLACK,TRIM1#,2#,4#,5#
main62551-50141-A0i201307-201708
LEATHER SEAT(F SPORT),MELLOW WHITE,TRIM00,02; MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62551-50141-A1i201307-201708
IVORY,TRIM01; LEATHER SEAT(F SPORT),IVORY,TRIM01; SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01; SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01
main62551-50141-C0i201307-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#; LEATHER SEAT(F SPORT),BLACK,TRIM1#,2#,4#,5#; SEMI-ANILINE *LES(EXCEPT VERSION C),BLACK,TRIM1#,2#,4#,5#; SEMI-ANILINE LEATHER SEAT,BLACK,TRIM1#,2#,4#,5#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-50060-A1i201209-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main62552-50060-A2i201209-201708
IVORY,TRIM01; IVORY,TRIM01,04
main62552-50060-C0i201209-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#; BLACK,TRIM2#,4#,5#
main62552-50120-A0supersedes 62552-50060-A1i201211-201306
MELLOW WHITE,TRIM00; SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02
main62552-50120-A1supersedes 62552-50060-A2i201209-201306
IVORY,TRIM01; LEATHER SEAT(F SPORT),IVORY,TRIM01; SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01
main62552-50120-C0supersedes 62552-50060-C0i201209-201306
BLACK,TRIM1#,2#,4#,5#; LEATHER SEAT(F SPORT),BLACK,TRIM1#,2#,4#,5#; SEMI-ANILINE LEATHER SEAT,BLACK,TRIM1#,2#,4#,5#
main62552-50121-A0i201307-201708
LEATHER SEAT(F SPORT),MELLOW WHITE,TRIM00,02; MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02; SEMI-ANILINE *LES(EXCEPT VERSION C),MELLOW WHITE,TRIM00,02; SEMI-ANILINE LEATHER SEAT,MELLOW WHITE,TRIM00,02
main62552-50121-A1i201307-201708
IVORY,TRIM01; LEATHER SEAT(F SPORT),IVORY,TRIM01; SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01; SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01
main62552-50121-C0i201307-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#; LEATHER SEAT(F SPORT),BLACK,TRIM1#,2#,4#,5#; SEMI-ANILINE *LES(EXCEPT VERSION C),BLACK,TRIM1#,2#,4#,5#; SEMI-ANILINE LEATHER SEAT,BLACK,TRIM1#,2#,4#,5#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-30010×4i201209
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62566-30010×6i201209
62619APLATE, SIDE TRIM SET
main62619-30030×4i201209
67913PLATE, FRONT DOOR SCUFF, RH
main67913-50130-C0i201210-201306
BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main67913-50131-C0i201307-201511
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main67913-50132-C0i201512-201708
BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main67913-50150-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67913-50150-A1i201209-201306
IVORY,TRIM01; IVORY,TRIM01,04
main67913-50150-C0i201209-201306
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
main67913-50151-A0i201307-201511
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67913-50151-A1i201307-201511
IVORY,TRIM01; IVORY,TRIM01,04
main67913-50151-C0i201307-201511
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
main67913-50152-A0i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67913-50152-A1i201512-201708
IVORY,TRIM01
main67913-50152-C0i201512-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
67913ACLIP(FOR SCUFF PLATE)
main90467-09229×14i201209
67914PLATE, FRONT DOOR SCUFF, LH
main67914-50130-C0i201210-201306
BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main67914-50131-C0i201410-201511
BLACK,TRIM2#
main67914-50132-C0i201512-201708
BLACK,TRIM2#; F SPORT,BLACK,TRIM2#
main67914-50150-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67914-50150-A1i201209-201306
IVORY,TRIM01; IVORY,TRIM01,04
main67914-50150-C0i201209-201306
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
main67914-50151-A0i201307-201511
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67914-50151-A1i201307-201410
IVORY,TRIM01
main67914-50151-C0i201307-201511
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
main67914-50152-A0i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67914-50152-A1i201512-201708
IVORY,TRIM01
main67914-50152-C0i201512-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
67917APLATE, REAR DOOR SCUFF, RH
main67917-50121-A1i201209-201410
MELLOW WHITE,TRIM00,02
main67917-50121-A2i201209-201708
IVORY,TRIM01
main67917-50121-C0i201209-201410
BLACK,TRIM1#,2#,4#,5#
main67917-50150-C0i201210-201708
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main67917-50180-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67917-50180-A1i201209-201306
IVORY,TRIM01; IVORY,TRIM01,04
main67917-50180-C0i201209-201306
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
main67917-50181-A0i201307-201511
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67917-50181-A1i201307-201511
IVORY,TRIM01; IVORY,TRIM01,04
main67917-50181-C0i201307-201511
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
main67917-50182-A0i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67917-50182-A1i201512-201708
IVORY,TRIM01
main67917-50182-C0i201512-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
67918APLATE, REAR DOOR SCUFF, LH
main67918-50121-A1i201209-201708
MELLOW WHITE,TRIM00,02
main67918-50121-A2i201209-201708
IVORY,TRIM01
main67918-50121-C0i201209-201410
BLACK,TRIM1#,2#,4#,5#
main67918-50150-C0i201210-201708
BLACK,TRIM2#,3#; F SPORT,BLACK,TRIM2#
main67918-50180-A0i201209-201306
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67918-50180-A1i201209-201306
IVORY,TRIM01; IVORY,TRIM01,04
main67918-50180-C0i201209-201306
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
main67918-50181-A0i201307-201511
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67918-50181-A1i201307-201511
IVORY,TRIM01; IVORY,TRIM01,04
main67918-50181-C0i201307-201511
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
main67918-50182-A0i201512-201708
MELLOW WHITE,TRIM00; MELLOW WHITE,TRIM00,02
main67918-50182-A1i201512-201708
IVORY,TRIM01
main67918-50182-C0i201512-201708
BLACK,TRIM1#,2#,4#,5#; BLACK,TRIM2#,4#,5#
73135BCOVER, SHOULDER BELT ANCHOR, RH
main73135-50100-A0i201209-201307
MELLOW WHITE,TRIM00,02
main73135-50100-A1i201307-201708
IVORY,TRIM01,04,4#,5#; IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE *LES(EXCEPT VERSION C),IVORY,TRIM01,4#,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,4#,5#
main73135-50100-B0i201307-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main73135-50110-C0i201210-201307
BLACK,TRIM2#
73136BCOVER, SHOULDER BELT ANCHOR, RH
main73136-50100-A0i201209-201410
MELLOW WHITE,TRIM00,02
main73136-50100-A1i201209-201307
IVORY,TRIM01,04,41,5#; IVORY,TRIM01,41,5#; VERSION L&SEMI-ANILINE LEATHER SEAT,IVORY,TRIM01,41,5#
main73136-50100-B0i201307-201708
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
main73136-50110-C0i201410-201708
BLACK,TRIM2#
9016840061
main90168-40061
9018904059
main90189-04059
9046718017
main90467-18017
9356054014
main93560-54014

39 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
