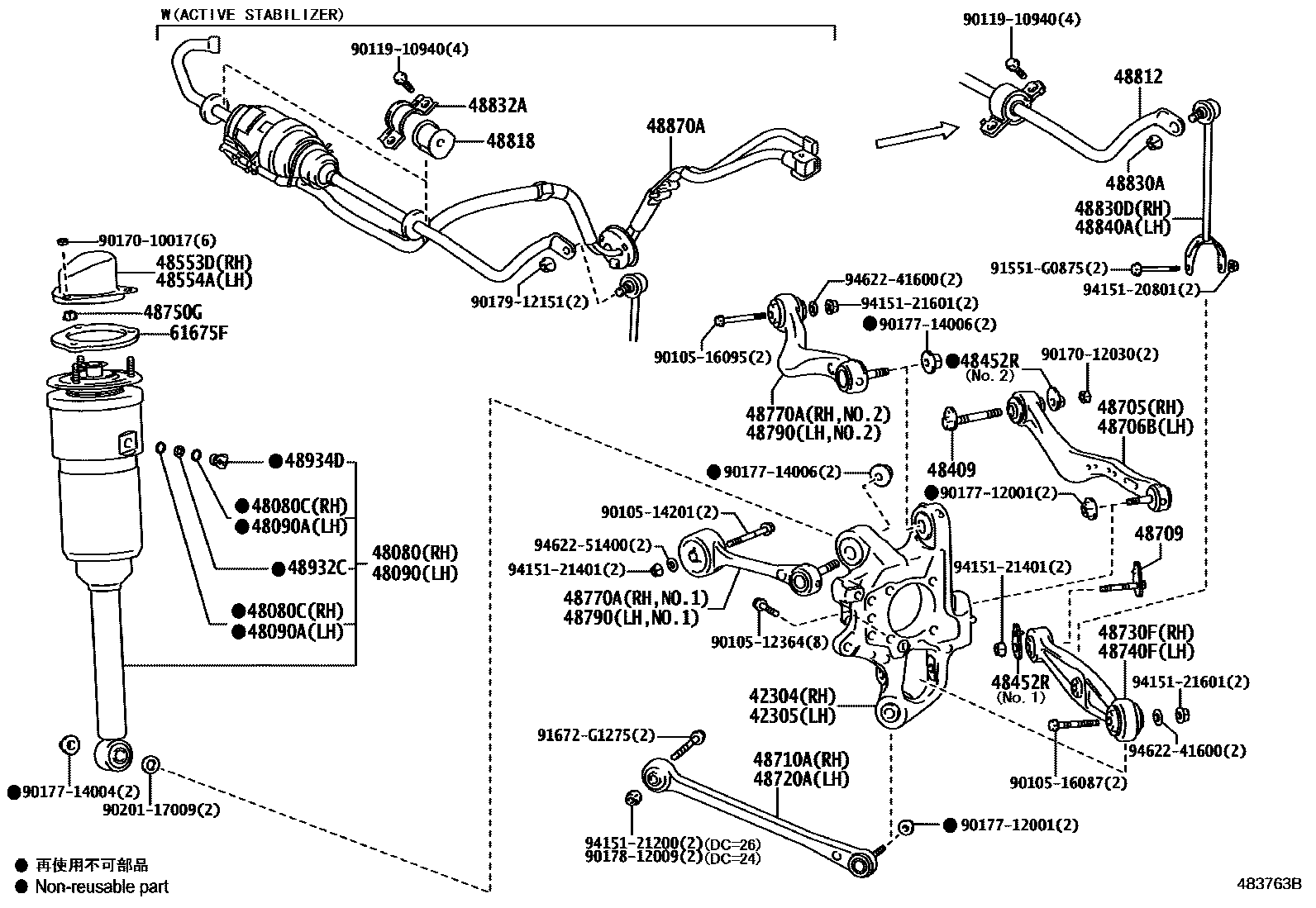

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
sub48080-50381
HOLLAND,BELGIUM SPEC&F SPORT
ICELAND SPEC&F SPORT
PORTUGAL,SPAIN,CANARY ISLANDS SPEC&F SPORT
GREECE SPEC&F SPORT
ITALY SPEC&F SPORT
F SPORT
GERMANY SPEC&F SPORT
FRANCE,REUNION,MONACO,ANDORRA SPEC&F SPORT
NORDIC,BALTIC SPEC&F SPORT
SWITZERLAND SPEC&F SPORT
sub48080-50401
48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)
48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
sub48090-50381
ICELAND SPEC&F SPORT
PORTUGAL,SPAIN,CANARY ISLANDS SPEC&F SPORT
GREECE SPEC&F SPORT
ITALY SPEC&F SPORT
F SPORT
GERMANY SPEC&F SPORT
FRANCE,REUNION,MONACO,ANDORRA SPEC&F SPORT
NORDIC,BALTIC SPEC&F SPORT
SWITZERLAND SPEC&F SPORT
HOLLAND,BELGIUM SPEC&F SPORT
sub48090-50401
48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
NO.2
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM
MARK 1
MARK 2
MARK 3
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
sub48710-40080
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
sub48710-40080
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48770AARM ASSY, UPPER CONTROL, REAR RH
NO.1
NO.2
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
F SPORT
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
F SPORT
48840ALINK ASSY, REAR STABILIZER, LH
48932CPLATE, HEIGHT CONTROL TUBE
48934DCONNECTOR, HEIGHT CONTROL TUBE
61675FREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
9010512364
main90105-12364
9010514201
main90105-14201
9010516087
main90105-16087
9010516095
main90105-16095
9011910940
main90119-10940
9017010017
main90170-10017
9017012030
main90170-12030
9017712001
main90177-12001
9017714004
main90177-14004
9017714006
main90177-14006
9017812009
main90178-12009
9017912151
main90179-12151
9020117009
main90201-17009
91551G0875
main91551-G0875
91672G1275
main91672-G1275
9415120801
main94151-20801
9415121200
main94151-21200
9415121401
main94151-21401
9415121601
main94151-21601
9462241600
main94622-41600
9462251400
main94622-51400
51 parts on this diagram · 1 diagram in section
