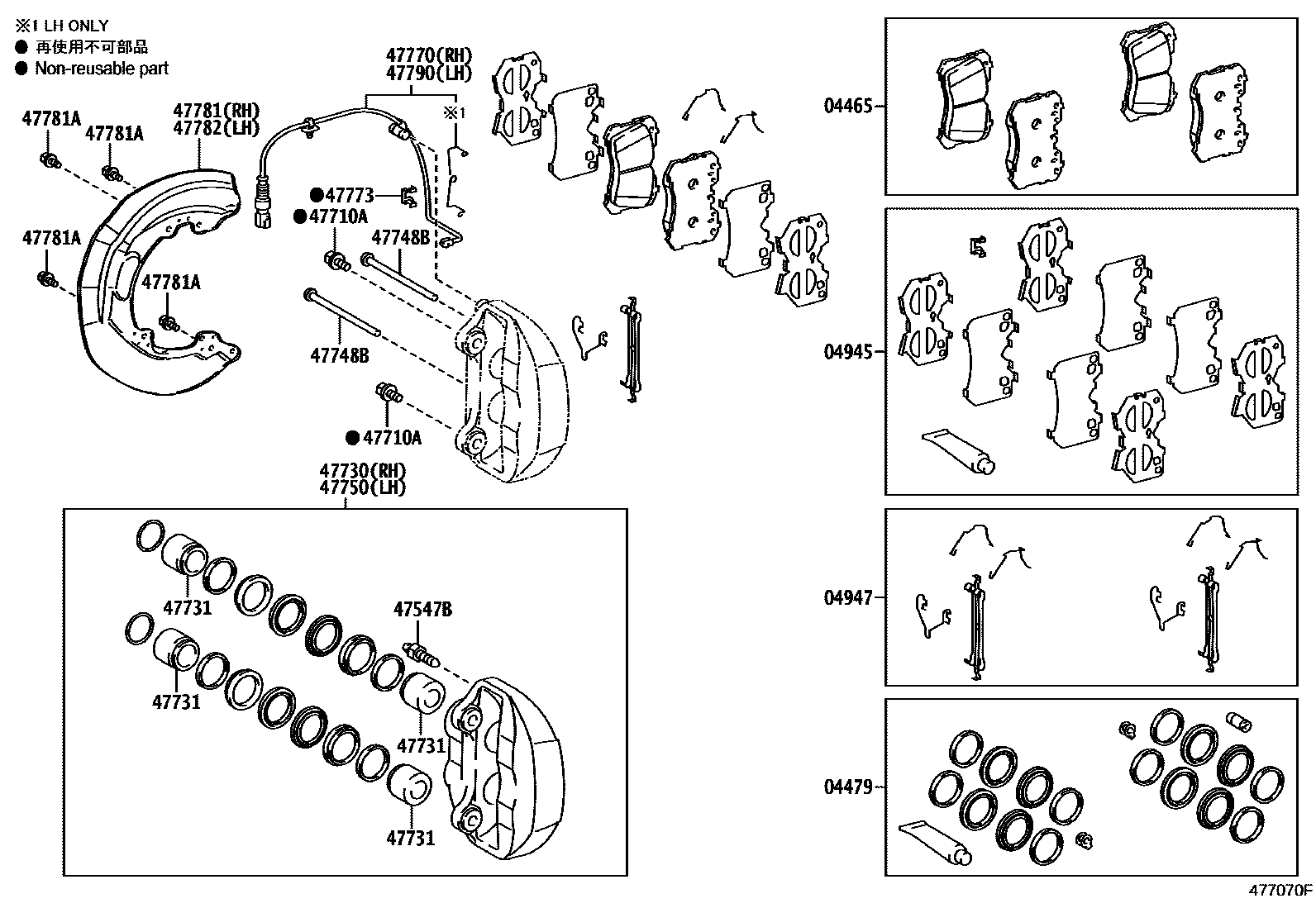

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1MARK PAGID 4668

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W110iUVF46..RHD201209-201708

TEXTAR T4146,SOUTH AMERICA SPEC

main04465-0W151iUVF45;UVF46..EUR201209-201708

MARK PAGID 4668

main04465-50260iUVF46..RHD201209-201708

MARK ADVICS PV565H,TAIWAN SPEC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0W020×2iUVF45;UVF46..EUR201209

main04478-50040iUVF46..RHD201209

TAIWAN SPEC

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-50110iUVF46..RHD201209

TAIWAN SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0W020×2iUVF45;UVF46..EUR201209

main04947-50130iUVF46..RHD201209

TAIWAN SPEC

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2iUVF46..RHD201209

TAIWAN SPEC

main90069-39012×2iUVF45;UVF46..EUR201209

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180×4iUVF4#201209-201708

*14-1.5PX40-35.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0W110iUVF45;UVF46..EUR201209

main47730-50210iUVF46..RHD201209

TAIWAN SPEC

47731PISTON, FRONT DISC BRAKE

main00000-00000×8iUVF45;UVF46..EUR201209-201708

NOT APPLICABLE

main47731-50200×8iUVF46..RHD201209-201708

TAIWAN SPEC

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50200×4iUVF46..RHD201209

TAIWAN SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0W110iUVF45;UVF46..EUR201209

main47750-50210iUVF46..RHD201209

TAIWAN SPEC

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-50090iUVF46..RHD201209

TAIWAN SPEC

main47770-50110iUVF45;UVF46..EUR201209

47773RETAINER, PAD WEAR INDICATOR

main47773-50030×2iUVF46..RHD201209-201708

TAIWAN SPEC

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-50060iUVF46..RHD201209-201708

TAIWAN SPEC

main47781-50070iUVF45;UVF46..EUR201209-201708

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508×8iUVF4#201209-201708

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-50060iUVF46..RHD201209-201708

TAIWAN SPEC

main47782-50070iUVF45;UVF46..EUR201209-201708

47790WIRE ASSY, PAD WEAR INDICATOR, FRONT LH

main47790-50050iUVF46..RHD201209

TAIWAN SPEC

main47790-50070iUVF45;UVF46..EUR201209

16 parts on this diagram · 2 diagrams in section
