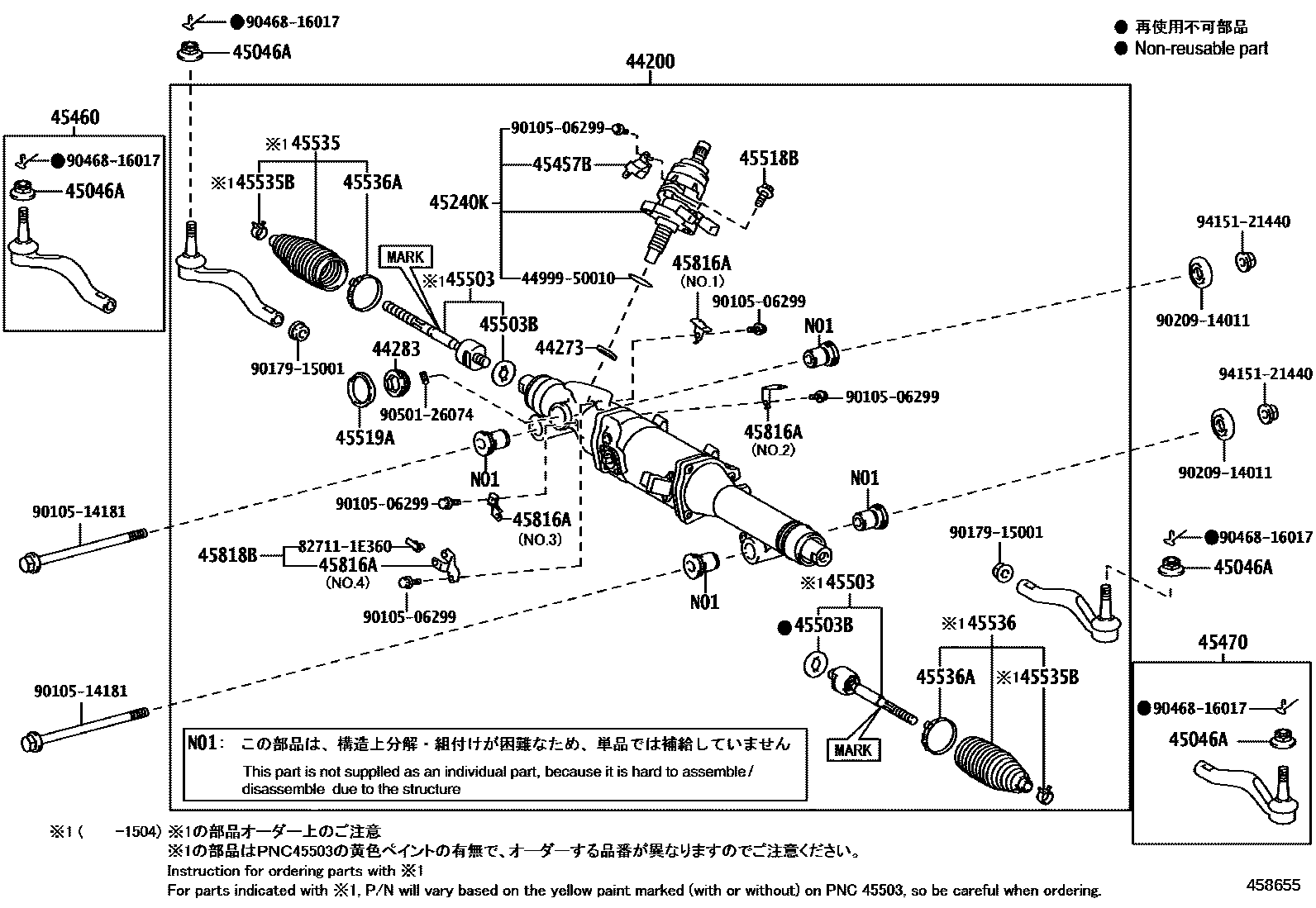

FRONT STEERING GEAR & LINK
44200LINK ASSY, POWER STEERING
F SPORT
44273PLATE, STEERING SHAFT TORQUE SENSOR
44283CAP, RACK HOUSING
45046ANUT, CASTLE(FOR TIE ROD END)
45457BPROTECTOR, STEERING LINK
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45503END SUB-ASSY, STEERING RACK
W/O MARK
MARK=YELLOW
45503BWASHER, CLAW(FOR STEERING RACK END)
OD=42
45518BBOLT, STEERING RACK HOUSING
45519ANUT, STEERING RACK HOUSING BRACKET
45535BOOT, STEERING RACK, NO.1
MARK=YELLOW
MARK=YELLOW
W/O MARK
45535BCLIP(FOR STEERING RACK BOOT)
TYPE B
TYPE A
45536BOOT, STEERING RACK, NO.2
MARK=YELLOW
MARK=YELLOW
W/O MARK
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
45816ABRACKET, WIRE HARNESS
NO.4
NO.1
NO.2
NO.3
45818BBRACKET, CONNECTOR
4499950010ELEMENT, BOOSTER CONTROL VALVE AIR CLEANER
main44999-50010
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9010506299
main90105-06299
9010514181
main90105-14181
9017915001
main90179-15001
9020914011
main90209-14011
9046816017
main90468-16017
9050126074
main90501-26074
9415121440
main94151-21440
27 parts on this diagram · 2 diagrams in section
