TRANSFER OIL PUMP

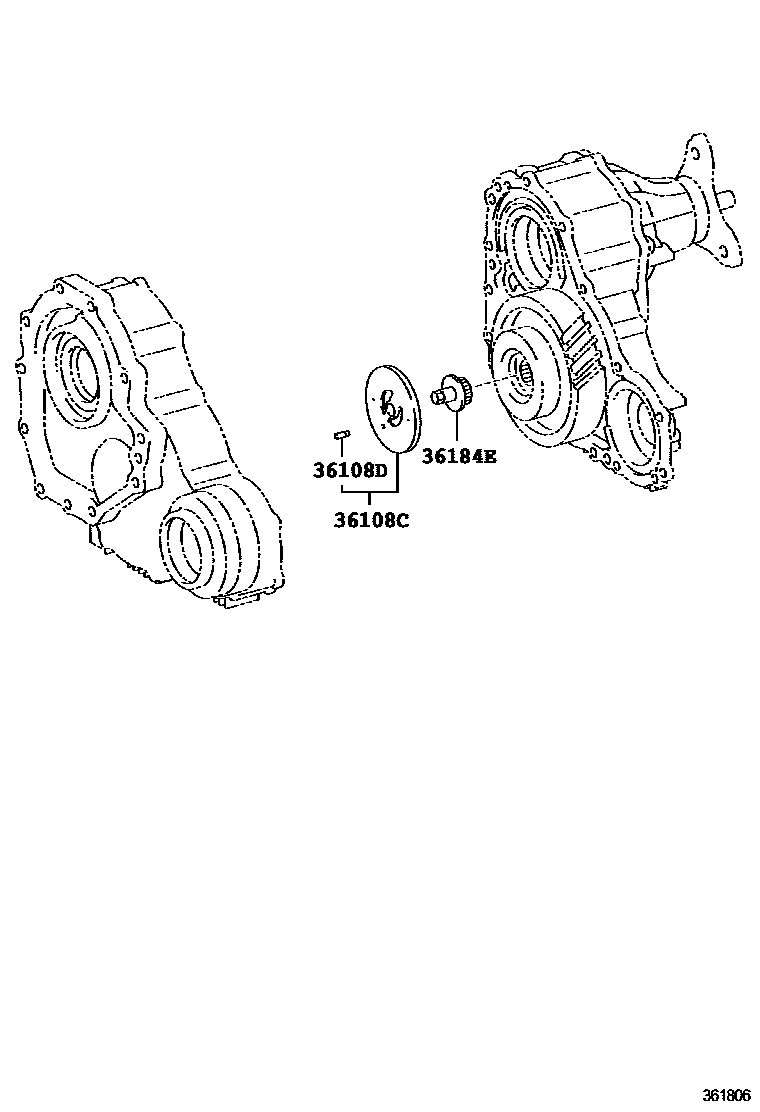

Parts diagram

36108CPLATE SUB-ASSY, TRANSFER OIL PUMP

main36108-50010i201209

36108DPIN (FOR TRANSFER OIL PUMP PLATE)

main90249-05101i201209

36184ESHAFT, TRANSFER OIL PUMP DRIVE

main36184-50020i201209

3 parts on this diagram · 1 diagram in section
