NAVIGATION & FRONT MONITOR DISPLAY

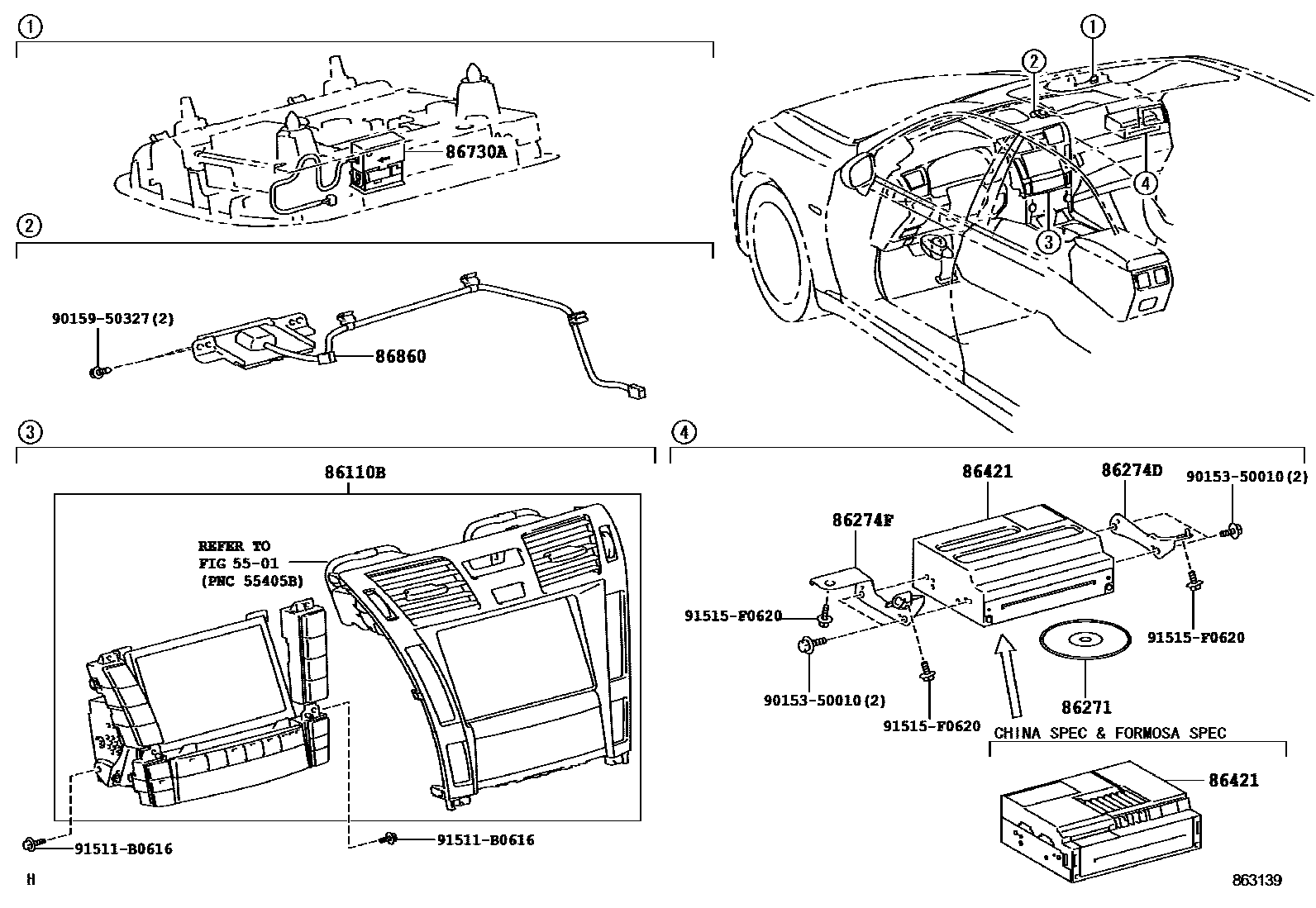

Parts diagram
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
→ Go to FIG 55-01
86110BMULTI-DISPLAY ASSY
main86110-50200supersedes 86110-50260i200704-200809
FUJITSU TEN,MOON ROOF-WITH&WITH(REAR COOLER)
main86110-50210supersedes 86110-50480i200709-200809
FUJITSU TEN,RUSSIA SPEC&MOON ROOF-WITH&WITH(REAR COOLER)
main86110-50270supersedes 86110-50480i200709-200809
FUJITSU TEN,RUSSIA SPEC
main86110-50280supersedes 86110-50300i200704-200809
FUJITSU TEN,MOON ROOF-WITH&WITH(REAR COOLER)
main86110-50290supersedes 86110-50520i200704-200809
FUJITSU TEN,AUSTRALIA SPEC&MOON ROOF-WITH&WITH(REAR COOLER); FUJITSU TEN,NEW ZEALAND SPEC&MOON ROOF-WITH&WITH(REAR COOLER)
main86110-50310supersedes 86110-50520i200704-200809
FUJITSU TEN,AUSTRALIA SPEC; FUJITSU TEN,NEW ZEALAND SPEC
main86110-50330supersedes 86110-50480i200809-200911
FUJITSU TEN,FORMOSA SPEC
main86110-50340supersedes 86110-50480i200704-200809
FUJITSU TEN,FORMOSA SPEC
main86110-50350supersedes 86110-50480i200704-200809
FUJITSU TEN,BEIJING SPEC&MOON ROOF-WITH&WITH(REAR COOLER); FUJITSU TEN,CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH&WITH(REAR COOLER)
main86110-50360supersedes 86110-50480i200704-200809
FUJITSU TEN,BEIJING SPEC; FUJITSU TEN,CHINA(EXCEPT BEIJING) SPEC
main86110-50370supersedes 86110-50480i200704-200709
FUJITSU TEN,RUSSIA SPEC&MOON ROOF-WITH&WITH(REAR COOLER)&EMV & NAVIGATION SYSTEM-W(EMV)&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
main86110-50380supersedes 86110-50480i200704-200709
FUJITSU TEN,RUSSIA SPEC&EMV & NAVIGATION SYSTEM-W(EMV)&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
main86110-50390supersedes 86110-50520i200704-200809
FUJITSU TEN,SINGAPORE SPEC&MOON ROOF-WITH&WITH(REAR COOLER)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86110-50400supersedes 86110-50520i200704-200809
FUJITSU TEN,SINGAPORE SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86110-50430supersedes 86110-50480i200809-200911
FUJITSU TEN,EMV & NAVIGATION SYSTEM-W(EMV) & W/O(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH; FUJITSU TEN,WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)&EMV & NAVIGATION SYSTEM-W(EMV) & W/O(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86110-50440supersedes 86110-50260i200704-200809
FUJITSU TEN,EMV & NAVIGATION SYSTEM-W(EMV)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86110-50450supersedes 86110-50520i200809-200911
FUJITSU TEN,HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86110-50460supersedes 86110-50520i200704-200809
FUJITSU TEN,HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH
main86110-50480supersedes 86110-50500i200809-200911
FUJITSU TEN; FUJITSU TEN,WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)
main86110-50490supersedes 86110-50480i200809-200911
FUJITSU TEN,RUSSIA SPEC
main86110-50500i200809-200911
EMV & NAVIGATION SYSTEM-W(EMV) & W/O(NAVIGATION )&BACK MONITOR (REAR TELEVISION CAMERA)-WITH; FUJITSU TEN
main86110-50520supersedes 86110-50540i200809-200911
FUJITSU TEN; FUJITSU TEN,WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)
main86110-50530supersedes 86110-50520i200809-200911
FUJITSU TEN,AUSTRALIA SPEC; FUJITSU TEN,NEW ZEALAND SPEC
86271DISC, DISC PLAYER
main86271-48092i200911-201007
main86271-48093i201008-201107
main86271-48181i201107-201206
main86271-48182i201207-201209
main86271-53031i200704-200708
EMV & NAVIGATION SYSTEM-W(EMV); HONG KONG SPEC; ISRAEL SPEC; NEW ZEALAND SPEC; RUSSIA SPEC; SINGAPORE SPEC; SOUTH AFRICA SPEC; SOUTH AMERICA SPEC; THAILAND SPEC
main86271-47072i201009-201108
AUSTRALIA SPEC&WITH(EMV & DVD NAVIGATION); NEW ZEALAND SPEC&WITH(EMV & DVD NAVIGATION)
main86271-47073i201109-201209
AUSTRALIA SPEC&WITH(EMV & DVD NAVIGATION); NEW ZEALAND SPEC&WITH(EMV & DVD NAVIGATION)
main86271-48220i201009-201107
MALAYSIA SPEC&WITH(EMV & DVD NAVIGATION); SINGAPORE SPEC&WITH(EMV & DVD NAVIGATION); THAILAND SPEC&WITH(EMV & DVD NAVIGATION)
main86271-48221i201108-201206
MALAYSIA SPEC&WITH(EMV & DVD NAVIGATION); SINGAPORE SPEC&WITH(EMV & DVD NAVIGATION); THAILAND SPEC&WITH(EMV & DVD NAVIGATION)
main86271-48222i201207-201209
MALAYSIA SPEC&WITH(EMV & DVD NAVIGATION); SINGAPORE SPEC&WITH(EMV & DVD NAVIGATION); THAILAND SPEC&WITH(EMV & DVD NAVIGATION)
main86271-50A60i200911-201007
HONG KONG SPEC
main86271-50A61i201008-201009
HONG KONG SPEC
main86271-50A62i201108-201206
HONG KONG SPEC&WITH(EMV & DVD NAVIGATION)
main86271-50A63i201207-201209
HONG KONG SPEC&WITH(EMV & DVD NAVIGATION)
main86271-53011i200704-200710
AUSTRALIA SPEC; NEW ZEALAND SPEC
main86271-53012i200710-200809
AUSTRALIA SPEC; NEW ZEALAND SPEC
main86271-53013i200809-200911
AUSTRALIA SPEC; NEW ZEALAND SPEC
main86271-60181i200911-201008
AUSTRALIA SPEC; NEW ZEALAND SPEC
main86807-0W022i200704-200707
BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC
main86807-0W023i200708-200804
BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC
main86807-0W024i200805-200809
BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC
main86807-0W025i200905-200911
BEIJING SPEC&MAP DISC(DOP)-WITH(EU); CHINA(EXCEPT BEIJING) SPEC; CHINA(EXCEPT BEIJING) SPEC&MAP DISC(DOP)-WITH(EU)
main86807-0W031i200704-200709
FORMOSA SPEC
main86807-0W032i200710-200809
FORMOSA SPEC
main86807-0W033i200809-200908
FORMOSA SPEC; FORMOSA SPEC&MAP DISC(DOP)-WITH(EU)
main86807-0W034i200909-200911
FORMOSA SPEC; FORMOSA SPEC&MAP DISC(DOP)-WITH(EU)
main86807-0W035i201008-201107
FORMOSA SPEC&MAP DISC(*DOP)-WITH
main86807-0W036i201108-201209
FORMOSA SPEC&MAP DISC(*DOP)-WITH
main86807-0W071i200911-201007
FORMOSA SPEC&MAP DISC(*DOP)-WITH
86274DBRACKET, DISC PLAYER
main86274-50220i200911
main86274-50240i200704-200809
EMV & NAVIGATION SYSTEM-W(EMV); NEW ZEALAND SPEC
86274FBRACKET, DISC PLAYER, NO.2
main86274-50230i200911
main86274-50250i200704-200809
EMV & NAVIGATION SYSTEM-W(EMV); NEW ZEALAND SPEC
86421BOARD, NAVIGATION MODULE
main86421-48010i200911-201209
main86421-53030i200809-200911
EMV & NAVIGATION SYSTEM-W(EMV) & W/O(NAVIGATION ); HONG KONG SPEC; SINGAPORE SPEC
main86421-33020i200809-200911
BEIJING SPEC; CHINA(EXCEPT BEIJING) SPEC
main86421-33030i200704-200809
FORMOSA SPEC
main86421-53010i200809-200911
AUSTRALIA SPEC; NEW ZEALAND SPEC
86730AMICROPHONE ASSY, TELEPHONE
main86730-48040i200911-201209
main86730-50050i200809-200911
main86730-50060i200809-200911
main86730-53030i200911-201209
86860ANTENNA ASSY, NAVIGATION
main86860-50090i200911
HONG KONG SPEC; ISRAEL SPEC; ISRAEL SPEC&WITH(EMV) & WITHOUT(NAVIGATION); KAZAKHSTAN SPEC; KAZAKHSTAN SPEC&WITH(EMV) & WITHOUT(NAVIGATION); MALAYSIA SPEC; PHILIPPINES SPEC; PHILIPPINES SPEC&WITH(EMV) & WITHOUT(NAVIGATION); RUSSIA SPEC&WITH(EMV) & WITHOUT(NAVIGATION); SINGAPORE SPEC; SOUTH AMERICA SPEC; SOUTH AMERICA SPEC&WITH(EMV) & WITHOUT(NAVIGATION); THAILAND SPEC; WITH(EMV) & WITHOUT(NAVIGATION)
main86860-50110i200809-200911
HONG KONG SPEC; SINGAPORE SPEC
main86860-50100i200809-200911
EMV & NAVIGATION SYSTEM-W(EMV) & W/O(NAVIGATION )
9015350010
main90153-50010
9015950327
main90159-50327
91511B0616
main91511-B0616
91515F0620
main91515-F0620

12 parts on this diagram · 6 diagrams in section
